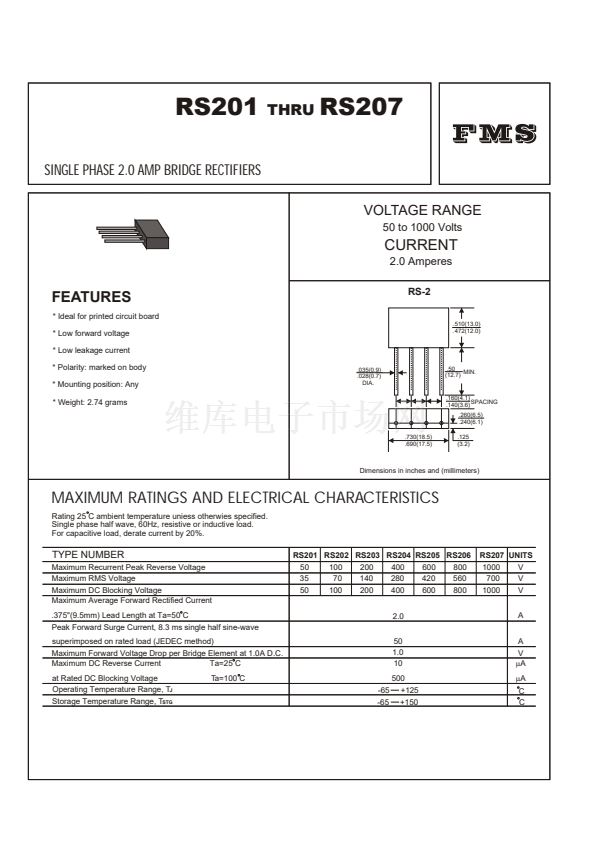

RS201
SINGLE PHASE 2.0 AMP BRIDGE RECTIFIERS
THRU
RS207
VOLTAGE RANGE
50 to 1000 Volts
CURRENT
2.0 Amperes
RS-2
.510(13.0)
.472(12.0)
FEATURES
* Ideal for printed circuit board
* Low forward voltage
* Low leakage current
* Polarity: marked on body
* Mounting position: Any
* Weight: 2.74 grams
.035(0.9)
.028(0.7)
DIA.
.50
MIN.
(12.7)
.160(4.1)
SPACING
.140(3.6)
.260(6.5)
.240(6.1)
.730(18.5)
.690(17.5)
.125
(3.2)
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25 C ambient temperature uniess otherwies specified.
Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
TYPE NUMBER
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
.375"(9.5mm) Lead Length at Ta=50 C
Peak Forward Surge Current, 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Maximum Forward Voltage Drop per Bridge Element at 1.0A D.C.
Maximum DC Reverse Current
Ta=25 C
at Rated DC Blocking Voltage
Operating Temperature Range, T
J
Storage Temperature Range, T
STG
Ta=100 C
RS201 RS202 RS203 RS204 RS205 RS206
50
35
50
100
70
100
200
140
200
400
280
400
2.0
50
1.0
10
500
-65 +125
-65 +150
600
420
600
800
560
800
RS207 UNITS
1000
700
1000
V
V
V
A
A
V
mA
mA
C
C
1
2
