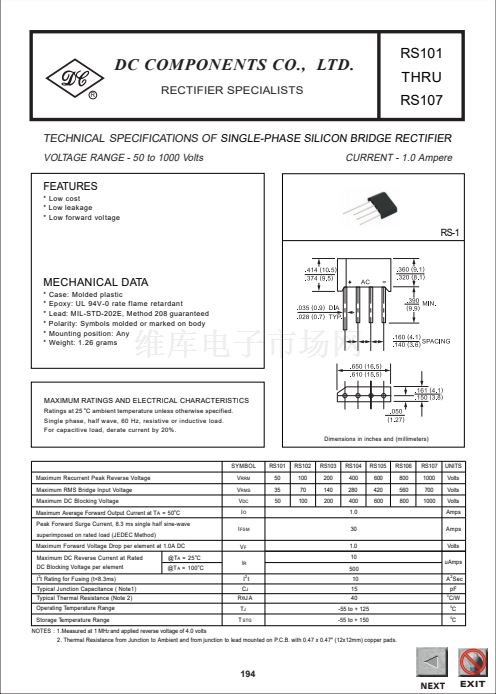

DC COMPONENTS CO., LTD.
R
RS101
THRU
RS107
RECTIFIER SPECIALISTS
TECHNICAL SPECIFICATIONS OF
SINGLE-PHASE SILICON BRIDGE RECTIFIER
VOLTAGE RANGE - 50 to 1000 Volts
CURRENT - 1.0 Ampere
FEATURES
* Low cost
* Low leakage
* Low forward voltage
RS-1
MECHANICAL DATA
*
*
*
*
*
*
Case: Molded plastic
Epoxy: UL 94V-0 rate flame retardant
Lead: MIL-STD-202E, Method 208 guaranteed
Polarity: Symbols molded or marked on body
Mounting position: Any
Weight: 1.26 grams

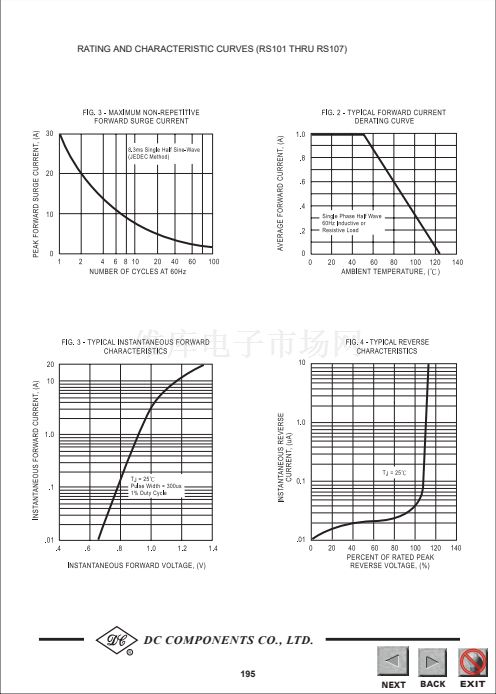

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
o
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Dimensions in inches and (millimeters)
SYMBOL
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Bridge Input Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Output Current at T
A
= 50 C
Peak Forward Surge Current, 8.3 ms single half sine-wave
superimposed on rated load (JEDEC Method)
Maximum Forward Voltage Drop per element at 1.0A DC
Maximum DC Reverse Current at Rated
DC Blocking Voltage per element
I t Rating for Fusing (t<8.3ms)
Typical Junction Capacitance ( Note1)
Typical Thermal Resistance (Note 2)
Operating Temperature Range
Storage Temperature Range
NOTES : 1.Measured at 1 MH
Z
and applied reverse voltage of 4.0 volts
2
o
RS101
50
35
50
RS102
100
70
100
RS103
200
140
200
RS104
400
280
400
1.0
30
1.0
10
RS105
600
420
600
RS106
800
560
800
RS107
1000
700
1000
UNITS
Volts
Volts
Volts
Amps
Amps
Volts
uAmps
A Sec
pF
0
V
RRM
V
RMS
V
DC
I
O
I
FSM
V
F
o
@T
A
= 25 C
@T
A
= 100
o
C
I
R
500
I t
C
J
R胃J A
T
J
T
STG
2
10
15
40
-55 to + 125
-55 to + 150
2
C/W
0
0
C
C
2. Thermal Resistance from Junction to Ambient and from junction to lead mounted on P.C.B. with 0.47 x 0.47" (12x12mm) copper pads.
