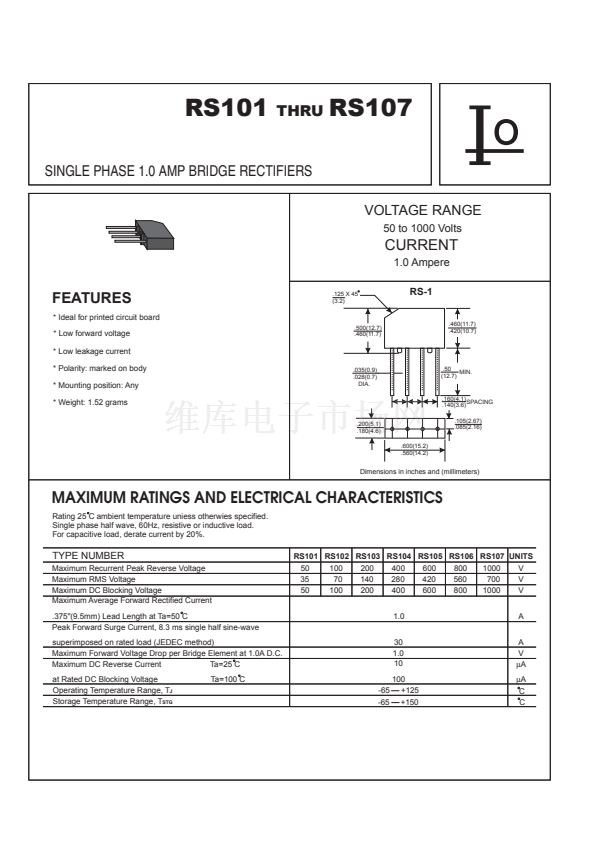

RS101
THRU
RS107
SINGLE PHASE 1.0 AMP BRIDGE RECTIFIERS
VOLTAGE RANGE
50 to 1000 Volts
CURRENT
1.0 Ampere
FEATURES
* Ideal for printed circuit board
* Low forward voltage
* Low leakage current
* Polarity: marked on body
* Mounting position: Any
* Weight: 1.52 grams
.125 X 45
(3.2)
RS-1
.460(11.7)
.420(10.7)
.500(12.7)
.460(11.7)
.035(0.9)
.028(0.7)
DIA.
.50
MIN.
(12.7)
.160(4.1)
SPACING
.140(3.6)
.200(5.1)
.180(4.6)
.600(15.2)
.560(14.2)
.105(2.67)
.085(2.16)
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25 C ambient temperature uniess otherwies specified.
Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
TYPE NUMBER
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
.375"(9.5mm) Lead Length at Ta=50 C
Peak Forward Surge Current, 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Maximum Forward Voltage Drop per Bridge Element at 1.0A D.C.
Maximum DC Reverse Current
Ta=25 C
at Rated DC Blocking Voltage
Operating Temperature Range, T
J
Storage Temperature Range, T
STG
Ta=100 C
RS101 RS102 RS103 RS104 RS105 RS106 RS107 UNITS
50
100
200
400
600
800
1000
V
35
70
140
280
420
560
700
V
50
100
200
400
600
800
1000
V
1.0
30
1.0
10
100
-65 +125
-65 +150
A
A
V
碌A(chǔ)
碌A(chǔ)
C
C
