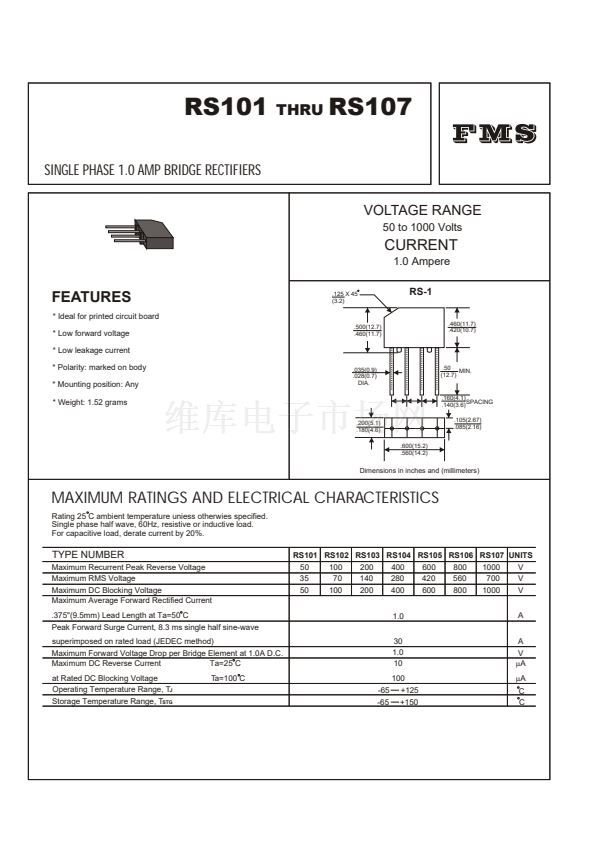

RS101

SINGLE PHASE 1.0 AMP BRIDGE RECTIFIERS

THRU

RS107

VOLTAGE RANGE

50 to 1000 Volts

CURRENT

1.0 Ampere

RS-1

.460(11.7)

.420(10.7)

FEATURES

* Ideal for printed circuit board

* Low forward voltage

* Low leakage current

* Polarity: marked on body

* Mounting position: Any

* Weight: 1.52 grams

.125 X 45

(3.2)

.500(12.7)

.460(11.7)

.035(0.9)

.028(0.7)

DIA.

.50

MIN.

(12.7)

.160(4.1)

SPACING

.140(3.6)

.200(5.1)

.180(4.6)

.600(15.2)

.560(14.2)

.105(2.67)

.085(2.16)

Dimensions in inches and (millimeters)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Rating 25 C ambient temperature uniess otherwies specified.

Single phase half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

TYPE NUMBER

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified Current

.375"(9.5mm) Lead Length at Ta=50 C

Peak Forward Surge Current, 8.3 ms single half sine-wave

superimposed on rated load (JEDEC method)

Maximum Forward Voltage Drop per Bridge Element at 1.0A D.C.

Maximum DC Reverse Current

Ta=25 C

at Rated DC Blocking Voltage

Operating Temperature Range, T

Storage Temperature Range, T

STG

Ta=100 C

RS101 RS102 RS103 RS104 RS105 RS106 RS107 UNITS

100

200

140

200

400

280

400

1.0

100

-65 +125

-65 +150

600

420

600

800

560

800

1000

700

1000
