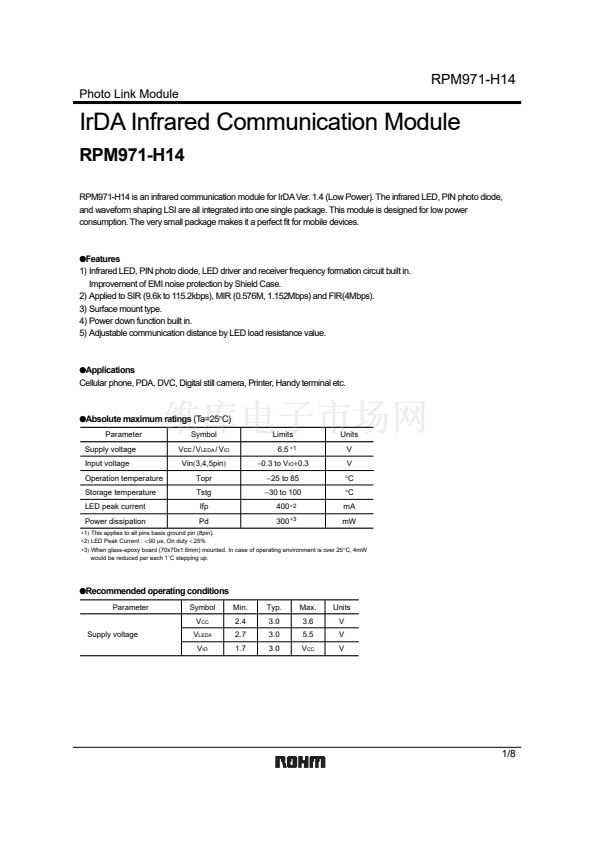

RPM971-H14
Photo Link Module
IrDA Infrared Communication Module
RPM971-H14
RPM971-H14 is an infrared communication module for IrDA Ver. 1.4 (Low Power). The infrared LED, PIN photo diode,
and waveform shaping LSI are all integrated into one single package. This module is designed for low power
consumption. The very small package makes it a perfect fit for mobile devices.
Features
1) Infrared LED, PIN photo diode, LED driver and receiver frequency formation circuit built in.
Improvement of EMI noise protection by Shield Case.
2) Applied to SIR (9.6k to 115.2kbps), MIR (0.576M, 1.152Mbps) and FIR(4Mbps).
3) Surface mount type.
4) Power down function built in.
5) Adjustable communication distance by LED load resistance value.
Applications
Cellular phone, PDA, DVC, Digital still camera, Printer, Handy terminal etc.
Absolute maximum ratings
(Ta=25擄C)
Parameter
Supply voltage
Input voltage
Operation temperature
Storage temperature
LED peak current
Power dissipation
Symbol
Vcc / V
LEDA
/ V
IO
Vin(3,4,5pin)
Topr
Tstg
Ifp
Pd
Limits
6.5
鈭?
鈭?.3
to V
IO
+0.3
鈭?5
to 85
鈭?0
to 100
400
鈭?
300
鈭?
Units
V
V
擄C
擄C
mA
mW
鈭?)
This applies to all pins basis ground pin (8pin).
鈭?)
LED Peak Current :
<
90
碌s,
On duty
<
25%
鈭?)
When glass-epoxy board (70x70x1.6mm) mounted. In case of operating environment is over 25擄C, 4mW
would be reduced per each 1藲C stepping up.
Recommended operating conditions
Parameter
Symbol
V
CC
Supply voltage
V
LEDA
V
IO
Min.
2.4
2.7
1.7
Typ.
3.0
3.0
3.0
Max.
3.6
5.5
V
CC
Units
V
V
V

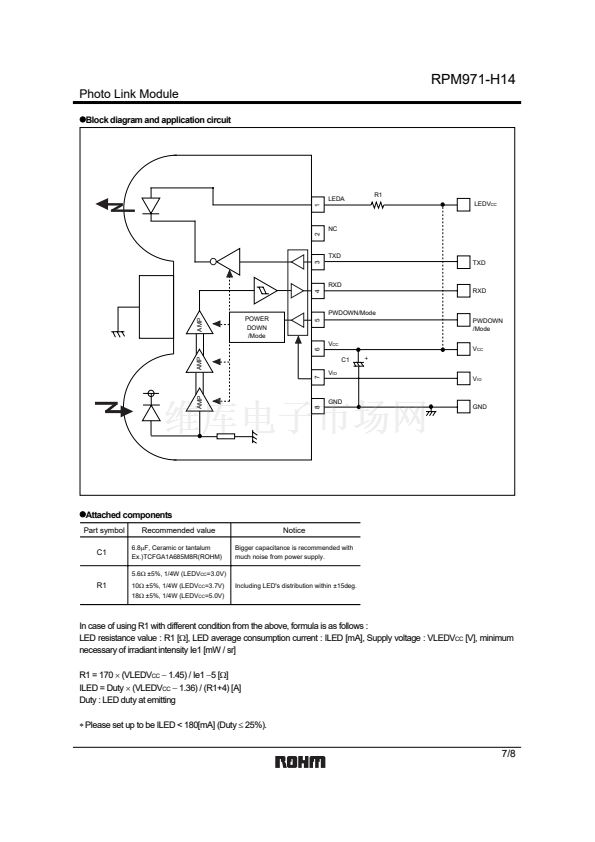

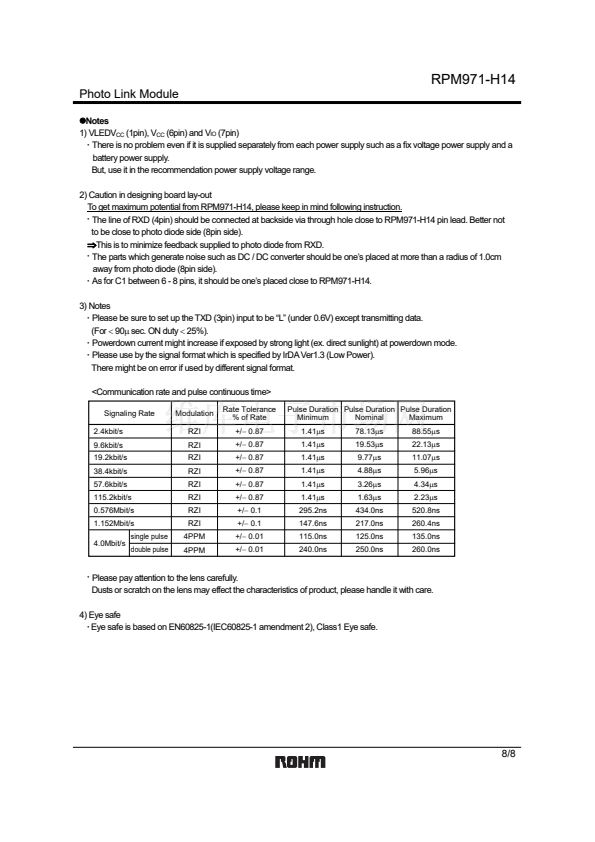

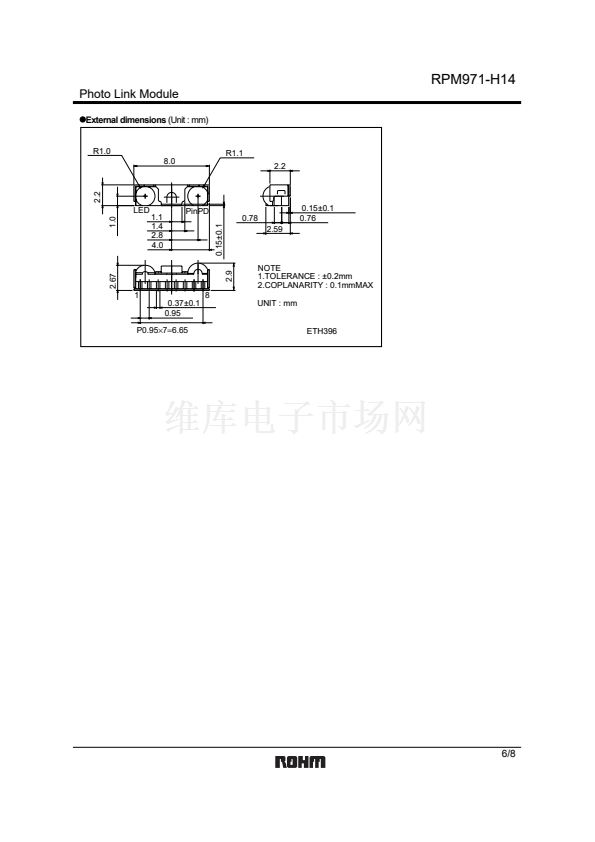

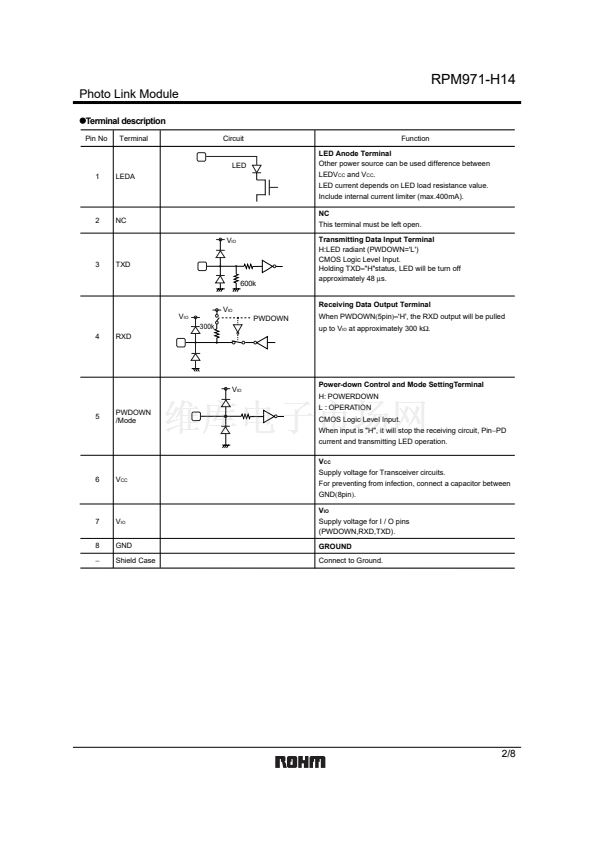

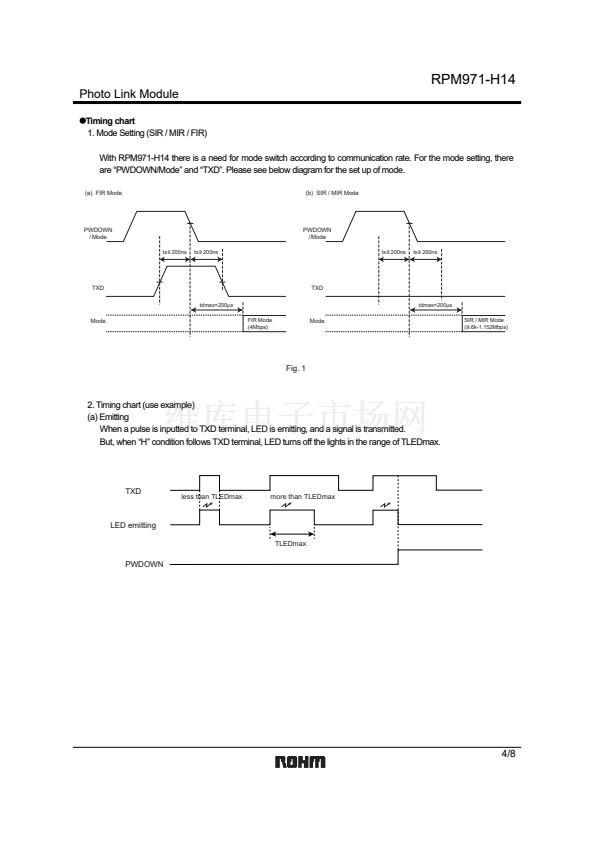

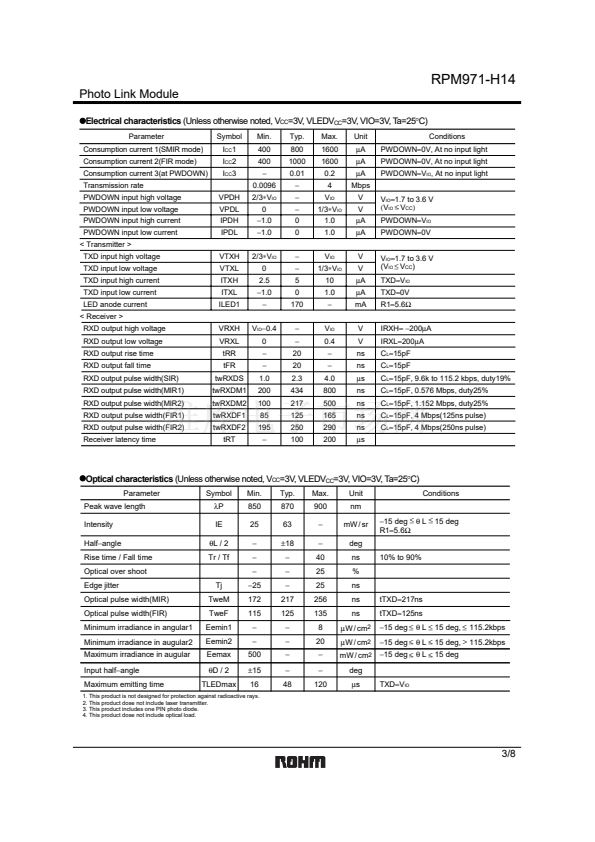

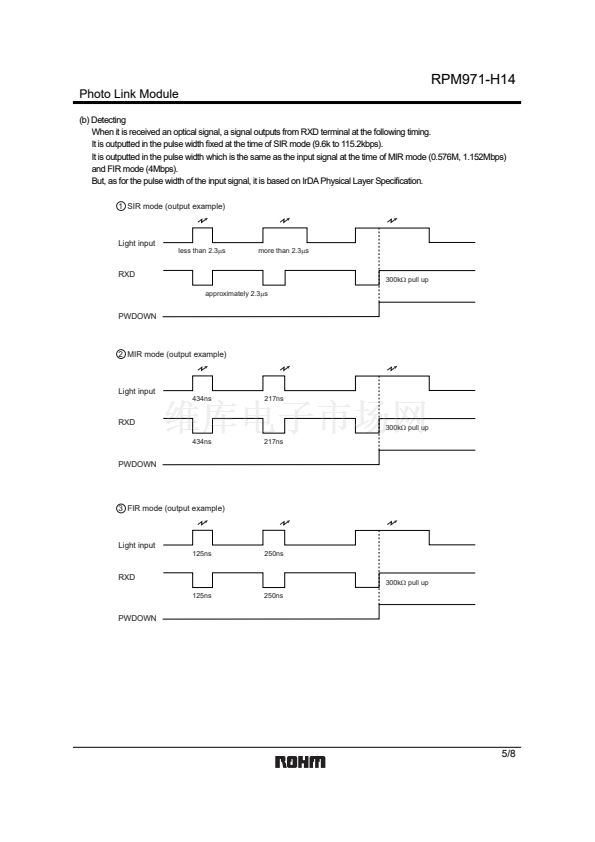

1/8
