For Telecom DSM, XDSL, Aplication
Internal Pi Filter
Multi-Outputs
Overcurrent Protection
High Efficiency to 86%
INNOLINE
DC/DC-Converter
High
Voltage
Output
Series
Selection Guide
Part Number
Input
Range
(VDC)
36-72
36-72
36-72
20-72
20-72
36-72
36-72
Output
Voltage
(VDC)
120
20
92
110
140
190
267
Output
Current
(mA)
30
50
100
140
110
60
60
Efficiency
(%)
72
78
81
84
86
80
81
A2
D2
D2
F2
F2
E1
E1
Dimension
RP3.6A2/x1
RP6D2/x1
RP9.2D2/x1
RP15.4F2/x2
RP15.4F2/x1
RP11.4E1/x1
RP16.2E1/x1
Specifications
(typical at nominal input and 25擄C unless otherwise noted)
Input Voltage Range
Input Filter
Voltage Accuracy
Ripple and Noise, 20 MHz BW
Line Regulation, Full Line
Load Regulation, FL-1/4FL
Temperature Coefficient
Short Circuit Protection
Isolation Voltage
Isolation Resistance
Operating Temperature Range
Storage Temperature Range
Cooling
Dimensions
156
See table above: Selection Guide
Pi Type
鹵2.0%
2% Vout
鹵0.2%
鹵0.20% (Single)
鹵2% (Dual)
鹵0.02%/擄C
Continuous
1600VDC, min.
10
9
鈩?/div>
-25擄C to +71擄C
-40擄C to +85擄C
Free-air Convection

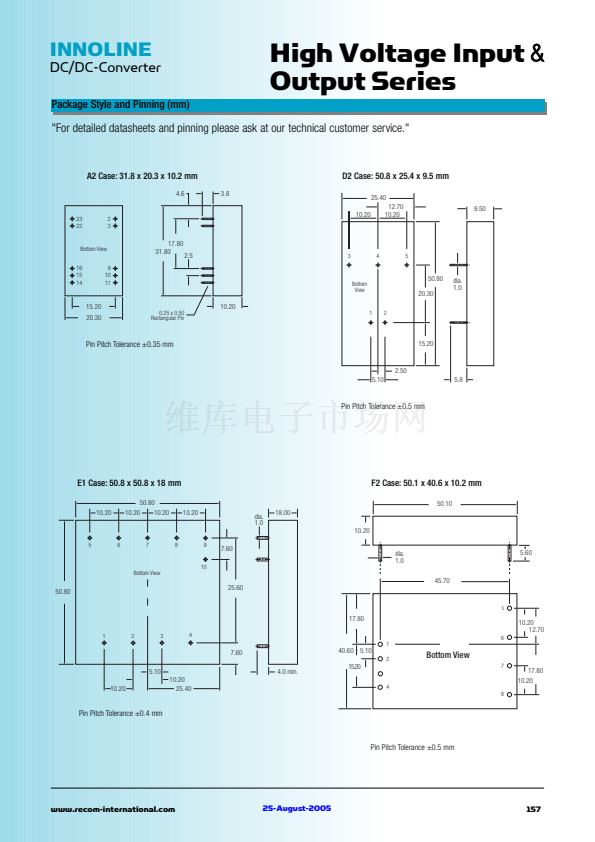

See next page:Package Style and Pinning
