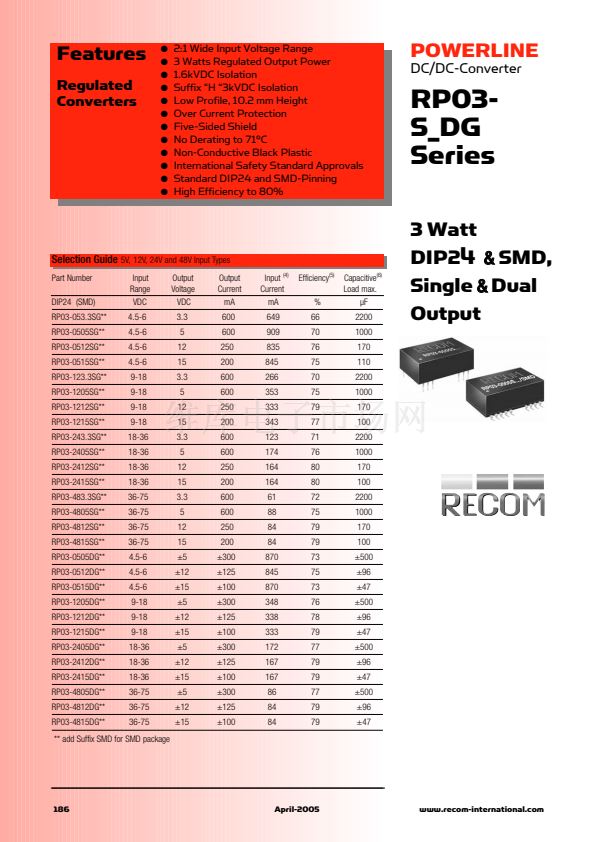

2:1 Wide Input Voltage Range
3 Watts Regulated Output Power
1.6kVDC Isolation
Suffix 鈥淗 鈥?kVDC Isolation
Low Profile, 10.2 mm Height
Over Current Protection
Five-Sided Shield
No Derating to 71擄C
Non-Conductive Black Plastic
International Safety Standard Approvals
Standard DIP24 and SMD-Pinning
High Efficiency to 80%
POWERLINE
DC/DC-Converter
RP03-
S_DG
Series
3 Watt
DIP24
&
SMD,
Single
&
Dual
Output
Selection Guide
5V, 12V, 24V and 48V Input Types
Part Number
DIP24 (SMD)
RP03-053.3SG**
RP03-0505SG**
RP03-0512SG**
RP03-0515SG**
RP03-123.3SG**
RP03-1205SG**
RP03-1212SG**
RP03-1215SG**
RP03-243.3SG**
RP03-2405SG**
RP03-2412SG**
RP03-2415SG**
RP03-483.3SG**
RP03-4805SG**
RP03-4812SG**
RP03-4815SG**
RP03-0505DG**
RP03-0512DG**
RP03-0515DG**
RP03-1205DG**
RP03-1212DG**
RP03-1215DG**
RP03-2405DG**
RP03-2412DG**
RP03-2415DG**
RP03-4805DG**
RP03-4812DG**
RP03-4815DG**
Input
Range
VDC
4.5-6
4.5-6
4.5-6
4.5-6
9-18
9-18
9-18
9-18
18-36
18-36
18-36
18-36
36-75
36-75
36-75
36-75
4.5-6
4.5-6
4.5-6
9-18
9-18
9-18
18-36
18-36
18-36
36-75
36-75
36-75
Output
Voltage
VDC
3.3
5
12
15
3.3
5
12
15
3.3
5
12
15
3.3
5
12
15
鹵5
鹵12
鹵15
鹵5
鹵12
鹵15
鹵5
鹵12
鹵15
鹵5
鹵12
鹵15
Output
Current
mA
600
600
250
200
600
600
250
200
600
600
250
200
600
600
250
200
鹵300
鹵125
鹵100
鹵300
鹵125
鹵100
鹵300
鹵125
鹵100
鹵300
鹵125
鹵100
Input
(4)
Current
mA
649
909
835
845
266
353
333
343
123
174
164
164
61
88
84
84
870
845
870
348
338
333
172
167
167
86
84
84
Efficiency
(5)
%
66
70
76
75
70
75
79
77
71
76
80
80
72
75
79
79
73
75
73
76
78
79
77
79
79
77
79
79
Capacitive
(6)
Load max.
碌F
2200
1000
170
110
2200
1000
170
100
2200
1000
170
100
2200
1000
170
100
鹵500
鹵96
鹵47
鹵500
鹵96
鹵47
鹵500
鹵96
鹵47
鹵500
鹵96
鹵47
** add Suffix SMD for SMD package
