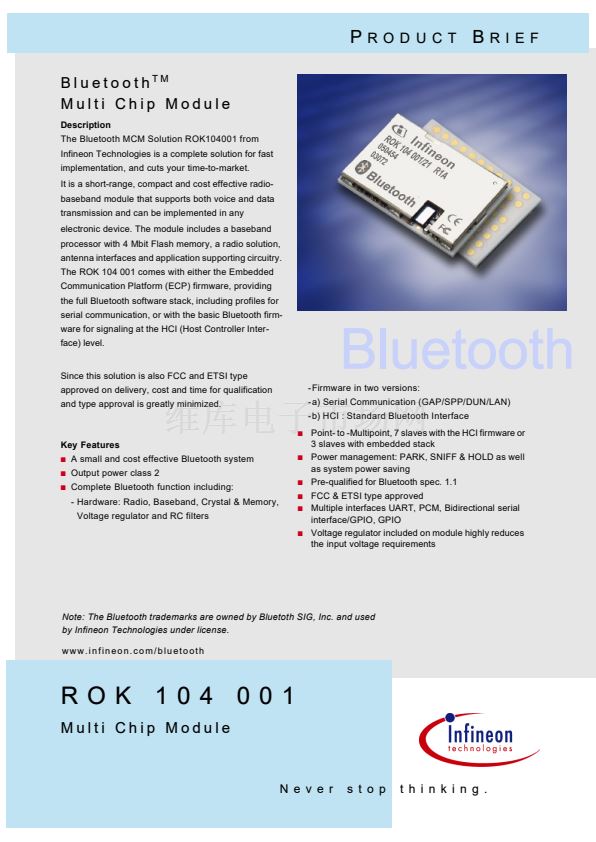

P
R
B l u e t o o t h
TM
Multi Chip Module

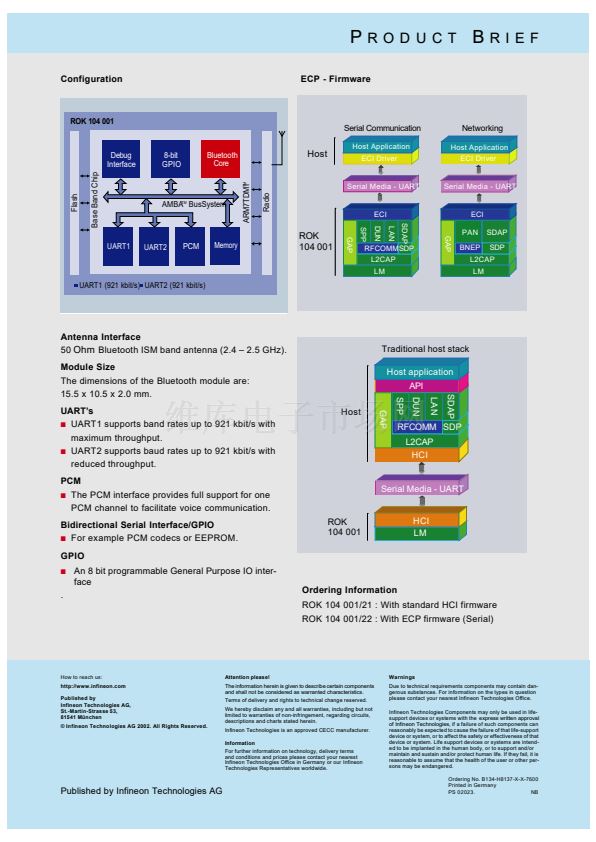

Description
The Bluetooth MCM Solution ROK104001 from
Infineon Technologies is a complete solution for fast
implementation, and cuts your time-to-market.
It is a short-range, compact and cost effective radio-
baseband module that supports both voice and data
transmission and can be implemented in any
electronic device. The module includes a baseband
processor with 4 Mbit Flash memory, a radio solution,
antenna interfaces and application supporting circuitry.
The ROK 104 001 comes with either the Embedded
Communication Platform (ECP) firmware, providing
the full Bluetooth software stack, including profiles for
serial communication, or with the basic Bluetooth firm-
ware for signaling at the HCI (Host Controller Inter-
face) level.
OD UCT
B
R
I EF
Since this solution is also FCC and ETSI type
approved on delivery, cost and time for qualification
and type approval is greatly minimized.
s
Bluetooth
-Firmware in two versions:
-a) Serial Communication (GAP/SPP/DUN/LAN)
-b) HCI : Standard Bluetooth Interface
Point- to -Multipoint, 7 slaves with the HCI firmware or
3 slaves with embedded stack
Power management: PARK, SNIFF & HOLD as well
as system power saving
Pre-qualified for Bluetooth spec. 1.1
FCC & ETSI type approved
Multiple interfaces UART, PCM, Bidirectional serial
interface/GPIO, GPIO
Voltage regulator included on module highly reduces
the input voltage requirements
s
s
s
s
Key Features
s
s
s
A small and cost effective Bluetooth system
Output power class 2
Complete Bluetooth function including:
- Hardware: Radio, Baseband, Crystal & Memory,
Voltage regulator and RC filters
s
Note: The Bluetooth trademarks are owned by Bluetoth SIG, Inc. and used
by Infineon Technologies under license.
www.infineon.com/bluetooth
ROK 104 001
Multi Chip Module
N e v e r
s t o p
t h i n k i n g .
