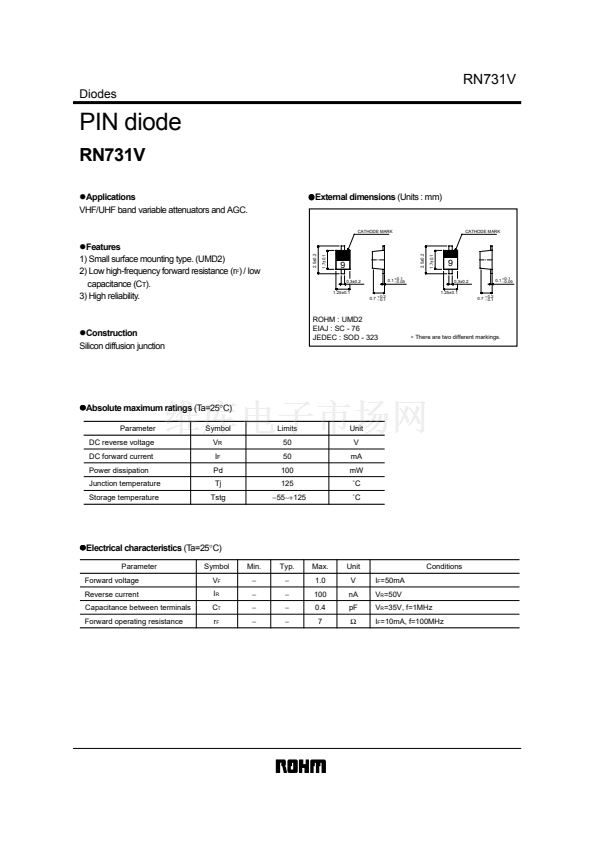

RN731V
Diodes
PIN diode
RN731V
!Applications
VHF/UHF band variable attenuators and AGC.
!
External dimensions
(Units : mm)
CATHODE MARK
CATHODE MARK
!Features
1) Small surface mounting type. (UMD2)
2) Low high-frequency forward resistance (r
F
) / low
capacitance (C
T
).
3) High reliability.
2.5鹵0.2
1.7鹵0.1
2.5鹵0.2
1.7鹵0.1
9
0.3鹵0.2
1.25鹵0.1
0.7
+0.2
鈭?.1
0.1
+0.1
鈭?.05
9
0.3鹵0.2
1.25鹵0.1
0.7
+0.2
鈭?.1
0.1
+0.1
鈭?.05
!Construction
Silicon diffusion junction
ROHM : UMD2
EIAJ : SC - 76
JEDEC : SOD - 323
鈭?/div>
There are two different markings.
!
Absolute maximum ratings
(Ta=25擄C)
Parameter
DC reverse voltage
DC forward current
Power dissipation
Junction temperature
Storage temperature
Symbol
V
R
I
F
Pd
Tj
Tstg
Limits
50
50
100
125
鈭?5鈭?125
Unit
V
mA
mW
藲C
藲C
!
Electrical characteristics
(Ta=25擄C)
Parameter
Forward voltage
Reverse current
Capacitance between terminals
Forward operating resistance
Symbol
V
F
I
R
C
T
r
F
Min.
鈭?/div>
鈭?/div>
鈭?/div>
鈭?/div>
Typ.
鈭?/div>
鈭?/div>
鈭?/div>
鈭?/div>
Max.
1.0
100
0.4
7
Unit
V
nA
pF
鈩?/div>
I
F
=50mA
V
R
=50V
V
R
=35V, f=1MHz
I
F
=10mA, f=100MHz
Conditions
