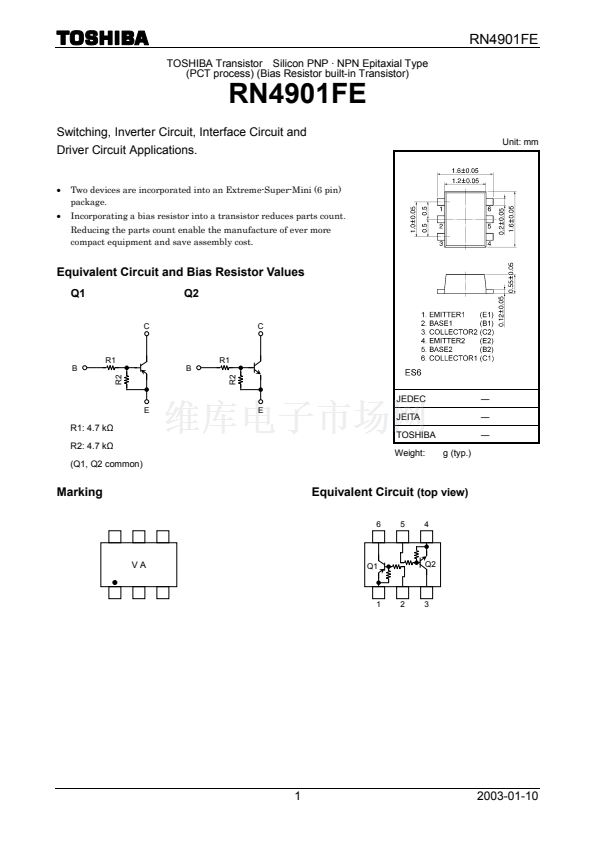

RN4901FE
TOSHIBA Transistor Silicon PNP 路 NPN Epitaxial Type
(PCT process) (Bias Resistor built-in Transistor)
RN4901FE
Switching, Inverter Circuit, Interface Circuit and
Driver Circuit Applications.
路
路
Two devices are incorporated into an Extreme-Super-Mini (6 pin)
package.
Incorporating a bias resistor into a transistor reduces parts count.
Reducing the parts count enable the manufacture of ever more
compact equipment and save assembly cost.
Unit: mm
Equivalent Circuit and Bias Resistor Values
Q1
C
Q2
C
B
R1
R2
B
R1
R2
JEDEC
E
E
鈥?/div>
鈥?/div>
鈥?/div>
g (typ.)
JEITA
TOSHIBA
Weight:
R1: 4.7 k鈩?/div>
R2: 4.7 k鈩?/div>
(Q1, Q2 common)
Marking
Equivalent Circuit
(top view)
6
5
4
VA
Q1
Q2
1
2
3
1
2003-01-10
