RMPA2455 Datasheet

  • RMPA2455

  • 2.4-2.5 GHz 1 Watt InGaP HBT Linear Power Amplifier

  • 10頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

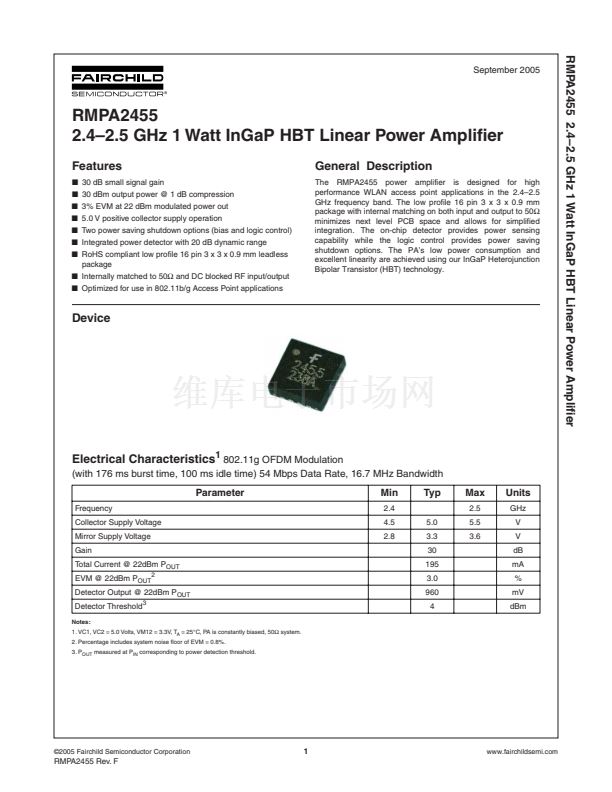

RMPA2455 2.4鈥?.5 GHz 1 Watt InGaP HBT Linear Power Ampli鏗乪r
September 2005
RMPA2455
2.4鈥?.5 GHz 1 Watt InGaP HBT Linear Power Ampli鏗乪r
Features
鈻?/div>
30 dB small signal gain
鈻?/div>
30 dBm output power @ 1 dB compression
鈻?/div>
3% EVM at 22 dBm modulated power out
鈻?/div>
5.0 V positive collector supply operation
鈻?/div>
Two power saving shutdown options (bias and logic control)
鈻?/div>
Integrated power detector with 20 dB dynamic range
鈻?/div>
RoHS compliant low pro鏗乴e 16 pin 3 x 3 x 0.9 mm leadless
package
鈻?/div>
Internally matched to 50
鈩?/div>
and DC blocked RF input/output
鈻?/div>
Optimized for use in 802.11b/g Access Point applications
General Description
The RMPA2455 power amplifier is designed for high
performance WLAN access point applications in the 2.4鈥?.5
GHz frequency band. The low profile 16 pin 3 x 3 x 0.9 mm
package with internal matching on both input and output to 50
鈩?/div>
minimizes next level PCB space and allows for simplified
integration. The on-chip detector provides power sensing
capability while the logic control provides power saving
shutdown options. The PA鈥檚 low power consumption and
excellent linearity are achieved using our InGaP Heterojunction
Bipolar Transistor (HBT) technology.
Device
Electrical Characteristics
1
802.11g OFDM Modulation
(with 176 ms burst time, 100 ms idle time) 54 Mbps Data Rate, 16.7 MHz Bandwidth
Parameter
Frequency
Collector Supply Voltage
Mirror Supply Voltage
Gain
Total Current @ 22dBm P
OUT
EVM @ 22dBm P
OUT2
Detector Output @ 22dBm P
OUT
Detector Threshold
3
Notes:
1. VC1, VC2 = 5.0 Volts, VM12 = 3.3V, T
A
= 25擄C, PA is constantly biased, 50
鈩?/div>
system.
2. Percentage includes system noise 鏗俹or of EVM = 0.8%.
3. P
OUT
measured at P
IN
corresponding to power detection threshold.
Min
2.4
4.5
2.8
Typ
5.0
3.3
30
195
3.0
960
4
Max
2.5
5.5
3.6
Units
GHz
V
V
dB
mA
%
mV
dBm
漏2005 Fairchild Semiconductor Corporation
1
www.fairchildsemi.com
RMPA2455 Rev. F

RMPA2455 產品屬性

  • 4,000

  • RF/IF 和 RFID

  • RF 放大器

  • -

  • 2.4GHz ~ 2.5GHz

  • 30dBm（1W）

  • 30dB

  • -

  • 802.11/Wi-Fi，WLAN

  • 4.5 V ~ 5.5 V

  • 140mA

  • -

  • 16-LCC

  • 帶卷 (TR)

  • RMPA2455TR
