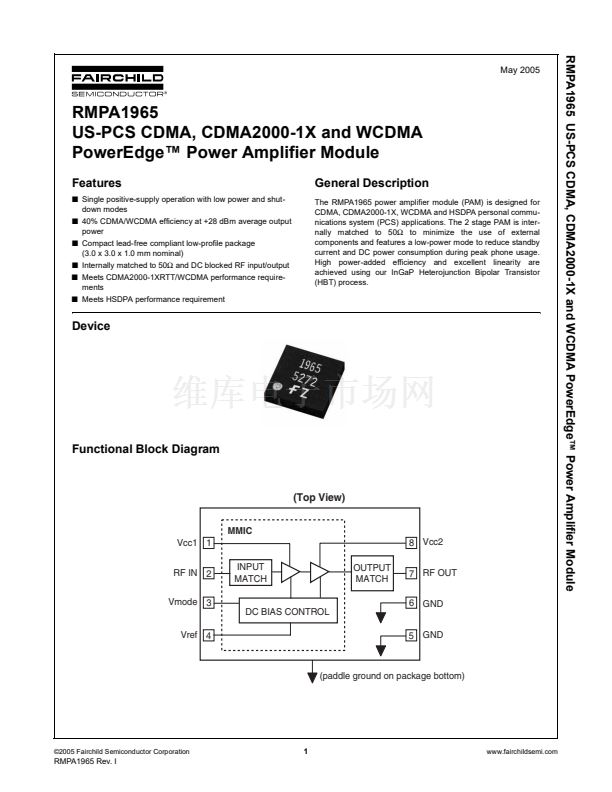

RMPA1965 US-PCS CDMA, CDMA2000-1X and WCDMA PowerEdge鈩?Power Amplifier Module

May 2005

RMPA1965

US-PCS CDMA, CDMA2000-1X and WCDMA

PowerEdge鈩?Power Amplifier Module

Features

鈻?/div>

Single positive-supply operation with low power and shut-

down modes

鈻?/div>

40% CDMA/WCDMA efficiency at +28 dBm average output

power

鈻?/div>

Compact lead-free compliant low-profile package

(3.0 x 3.0 x 1.0 mm nominal)

鈻?/div>

Internally matched to 50鈩?and DC blocked RF input/output

鈻?/div>

Meets CDMA2000-1XRTT/WCDMA performance require-

ments

鈻?/div>

Meets HSDPA performance requirement

General Description

The RMPA1965 power amplifier module (PAM) is designed for

CDMA, CDMA2000-1X, WCDMA and HSDPA personal commu-

nications system (PCS) applications. The 2 stage PAM is inter-

nally matched to 50鈩?to minimize the use of external

components and features a low-power mode to reduce standby

current and DC power consumption during peak phone usage.

High power-added efficiency and excellent linearity are

achieved using our InGaP Heterojunction Bipolar Transistor

(HBT) process.

Device

Functional Block Diagram

(Top View)

MMIC

Vcc1 1

RF IN 2

Vmode 3

DC BIAS CONTROL

Vref 4

INPUT

MATCH

OUTPUT

MATCH

8 Vcc2

7 RF OUT

6 GND

5 GND

(paddle ground on package bottom)

漏2005 Fairchild Semiconductor Corporation

www.fairchildsemi.com

RMPA1965 Rev. I

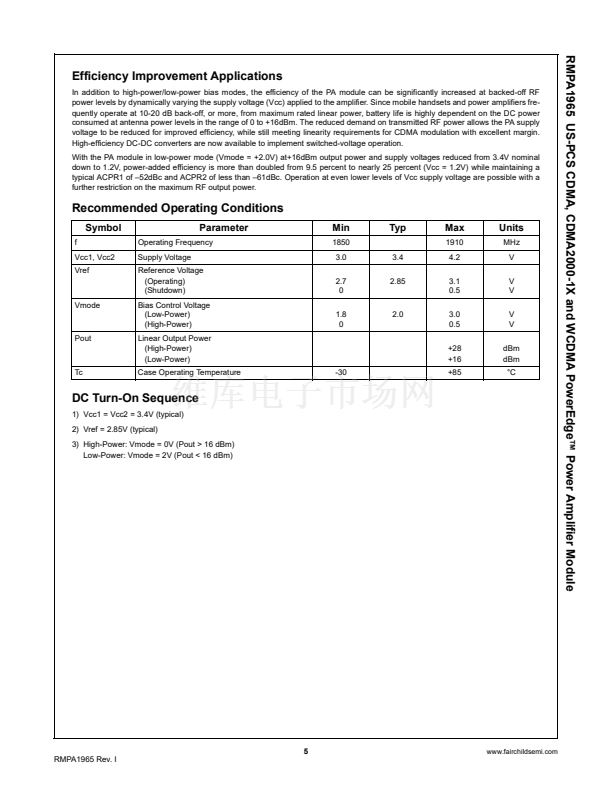

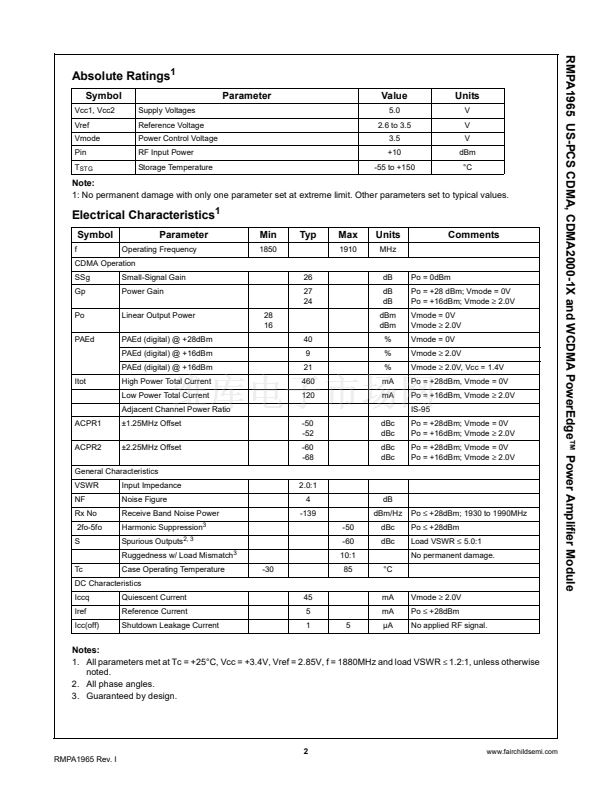

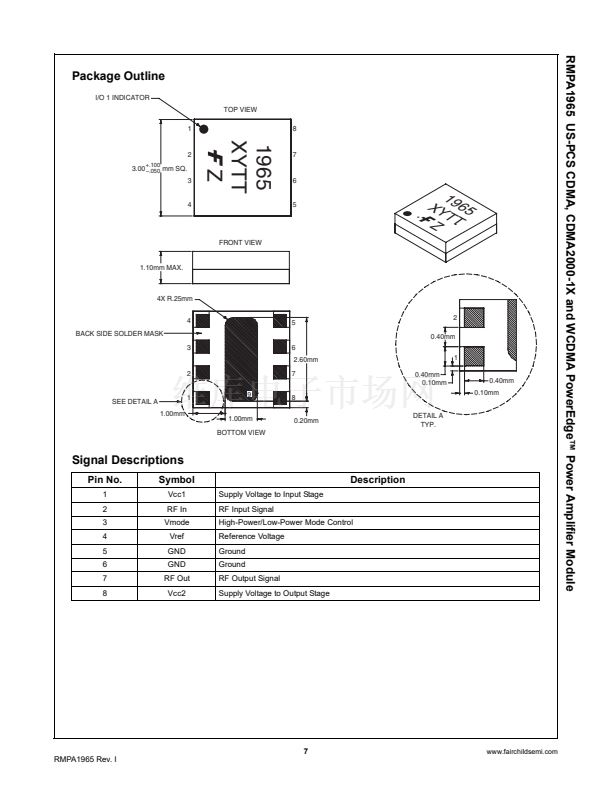

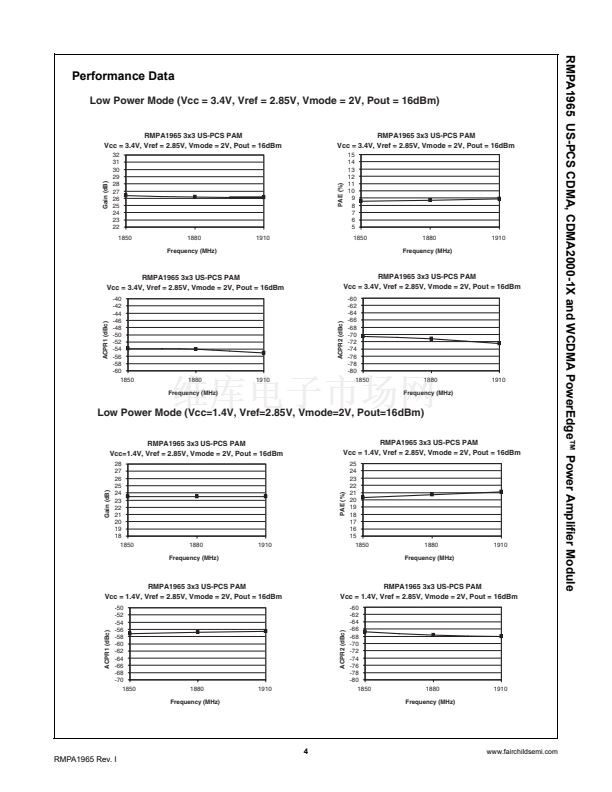

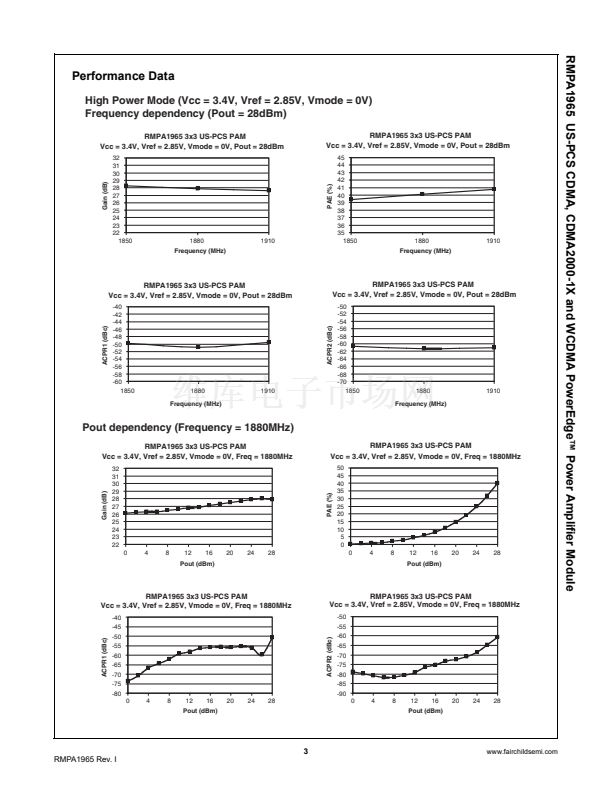

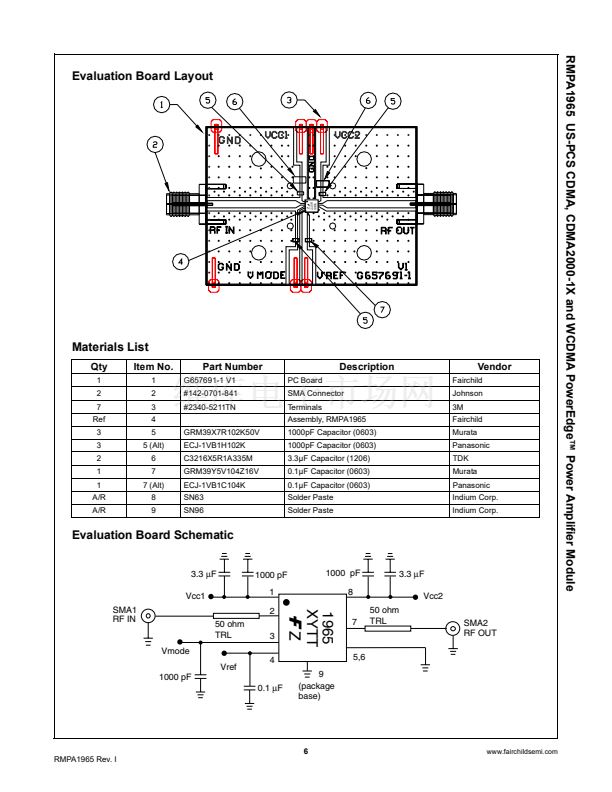

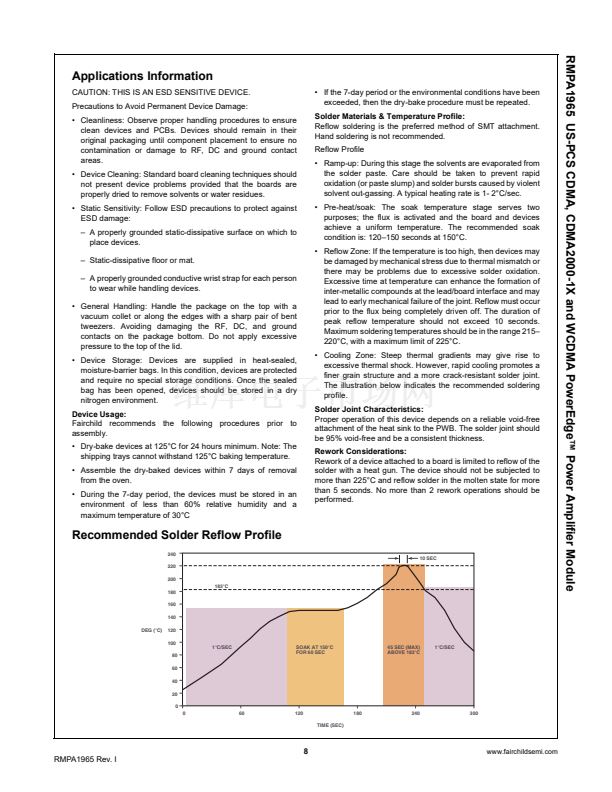

標準包裝
4,000
類別
RF/IF 和 RFID
家庭
RF 放大器
系列
-
頻率
1.85GHz ~ 1.91GHz
P1dB
-
增益
26dB
噪音數據
4dB
RF 型
CDMA，CDMA2000，W-CDMA，PCS，HSPDA
電源電壓
3 V ~ 4.2 V
電流 - 電源
45mA
測試頻率
-
封裝/外殼
8-LCC
包裝
帶卷 (TR)
其它名稱
RMPA1965TR
