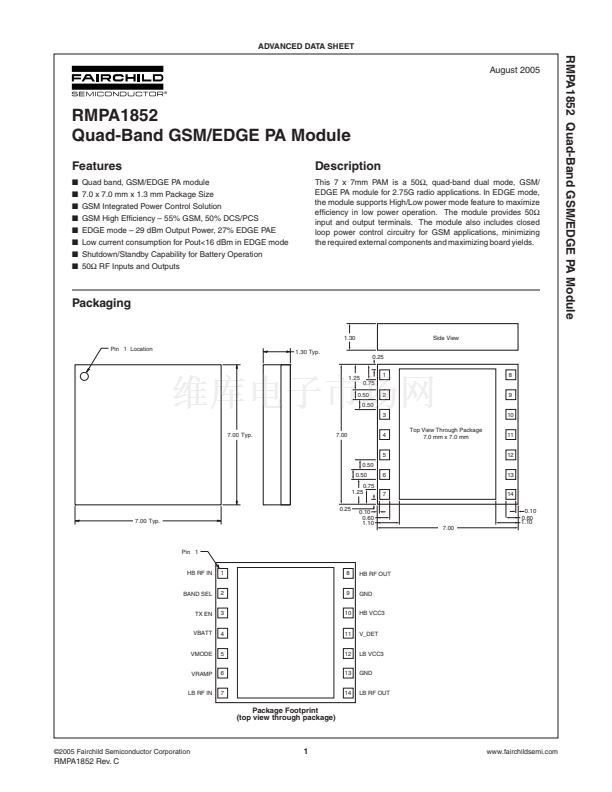

ADVANCED DATA SHEET

RMPA1852 Quad-Band GSM/EDGE PA Module

August 2005

RMPA1852

Quad-Band GSM/EDGE PA Module

Features

鈻?/div>

Quad band, GSM/EDGE PA module

鈻?/div>

7.0 x 7.0 mm x 1.3 mm Package Size

鈻?/div>

GSM Integrated Power Control Solution

鈻?/div>

GSM High Ef鏗乧iency 鈥?55% GSM, 50% DCS/PCS

鈻?/div>

EDGE mode 鈥?29 dBm Output Power, 27% EDGE PAE

鈻?/div>

Low current consumption for Pout<16 dBm in EDGE mode

鈻?/div>

Shutdown/Standby Capability for Battery Operation

鈻?/div>

鈩?/div>

RF Inputs and Outputs

Description

This 7 x 7mm PAM is a 50

鈩?/div>

, quad-band dual mode, GSM/

EDGE PA module for 2.75G radio applications. In EDGE mode,

the module supports High/Low power mode feature to maximize

ef鏗乧iency in low power operation. The module provides 50

鈩?/div>

input and output terminals. The module also includes closed

loop power control circuitry for GSM applications, minimizing

the required external components and maximizing board yields.

Packaging

1.30

Pin 1 Location

1.30 Typ.

0.25

0.75

0.50

Top View Through Package

7.0 mm x 7.0 mm

Side View

1.25

7.00 Typ.

7.00

0.50

0.75

1.25

0.10

0.60

1.10

0.25

7.00 Typ.

0.10

0.60

1.10

7.00

Pin 1

HB RF IN

BAND SEL

TX EN

VBATT

HB RF OUT

GND

HB VCC3

V_DET

LB VCC3

GND

VMODE

VRAMP

LB RF IN

LB RF OUT

Package Footprint

(top view through package)

漏2005 Fairchild Semiconductor Corporation

www.fairchildsemi.com

RMPA1852 Rev. C
