RMPA0967 Cellular CDMA, CDMA2000-1X and WCDMA Power Edge鈩?Power Amplifier Module

April 2005

RMPA0967

Cellular CDMA, CDMA2000-1X and WCDMA

Power Edge鈩?Power Amplifier Module

Features

鈻?/div>

Single positive-supply operation with low power and shut-

down modes

鈻?/div>

39% CDMA/WCDMA efficiency at +28 dBm average output

power

鈻?/div>

52% AMPS mode efficiency at +31 dBm output power

鈻?/div>

Compact lead-free compliant LCC package

(3.0 X 3.0 x 1.0 mm)

鈻?/div>

Internally matched to 50 Ohms and DC blocked RF

input/output

鈻?/div>

Meets CDMA2000-1XRTT/WCDMA performance require-

ments

鈻?/div>

Meets HSDPA performance requirements

鈻?/div>

Alternative pin-out to Fairchild RMPA0965

General Description

The RMPA0967 power amplifier module (PAM) is designed for

cellular band AMPS, CDMA, CDMA2000-1X, WCDMA and

HSDPA applications. The 2 stage PAM is internally matched to

50 Ohms to minimize the use of external components and fea-

tures a low-power mode to reduce standby current and DC

power consumption during peak phone usage. High power-

added efficiency and excellent linearity are achieved using Fair-

child RF鈥檚 InGaP Heterojunction Bipolar Transistor (HBT) pro-

cess.

Device

Functional Block Diagram

(Top View)

MMIC

Vref

DC Bias Control

Vmode

Input

Match

Output

Match

RF OUT

GND

RF IN

GND

Vcc1

Vcc2

(paddle ground on

package bottom)

漏2005 Fairchild Semiconductor Corporation

www.fairchildsemi.com

RMPA0967 Rev. E

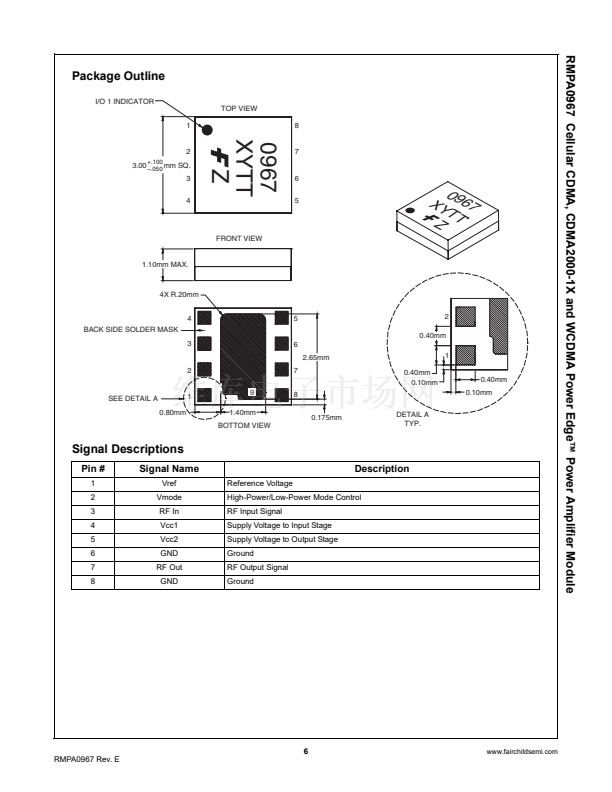

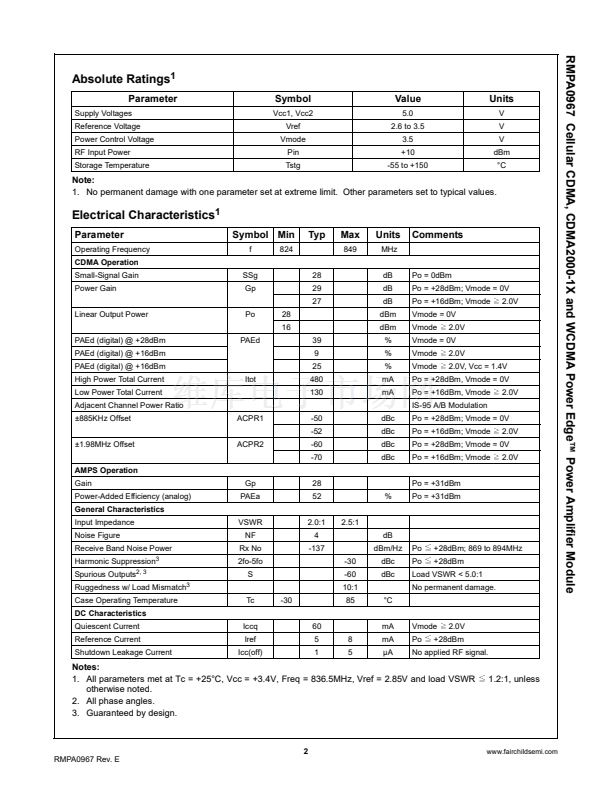

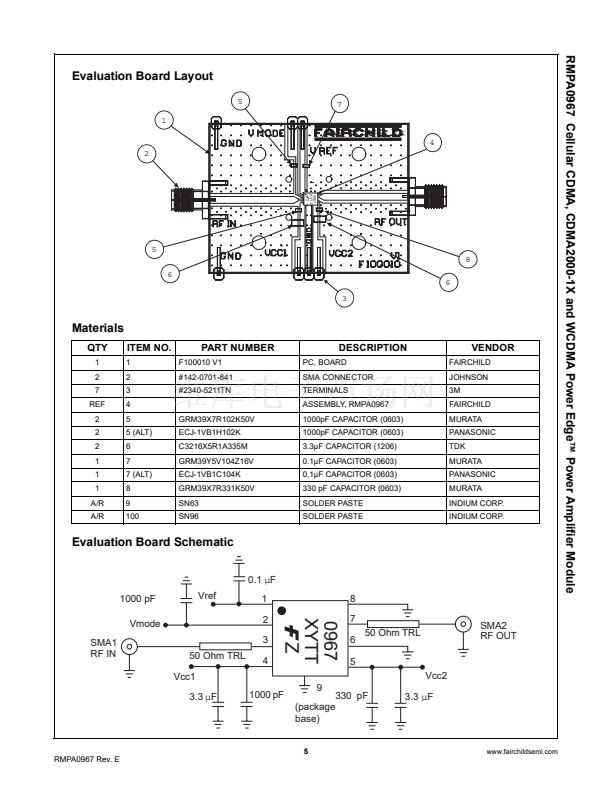

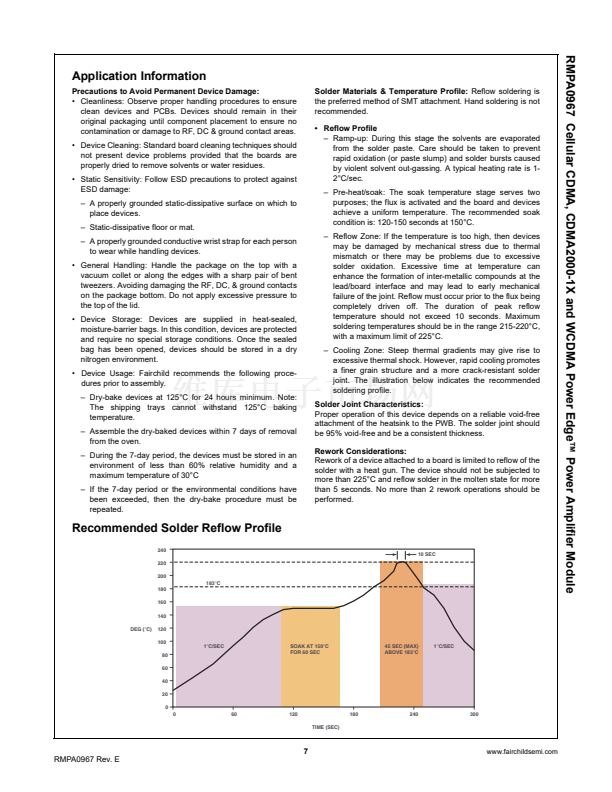

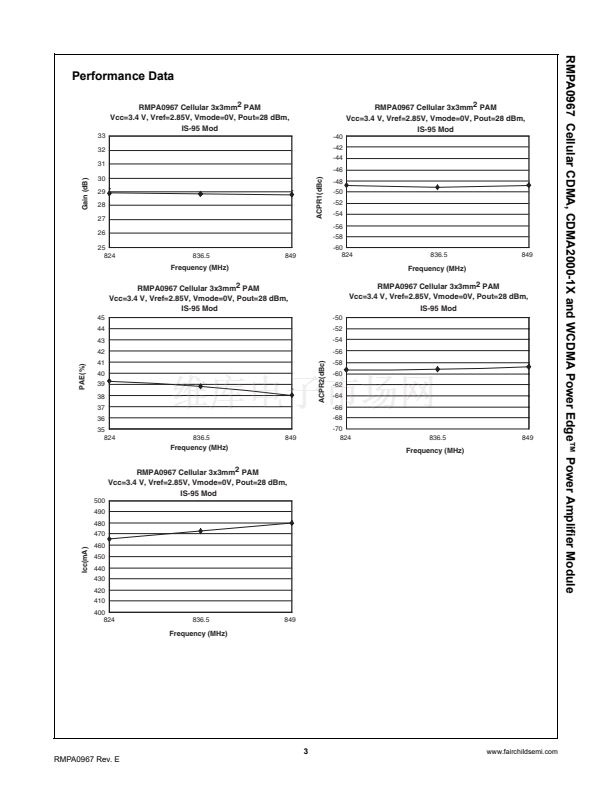

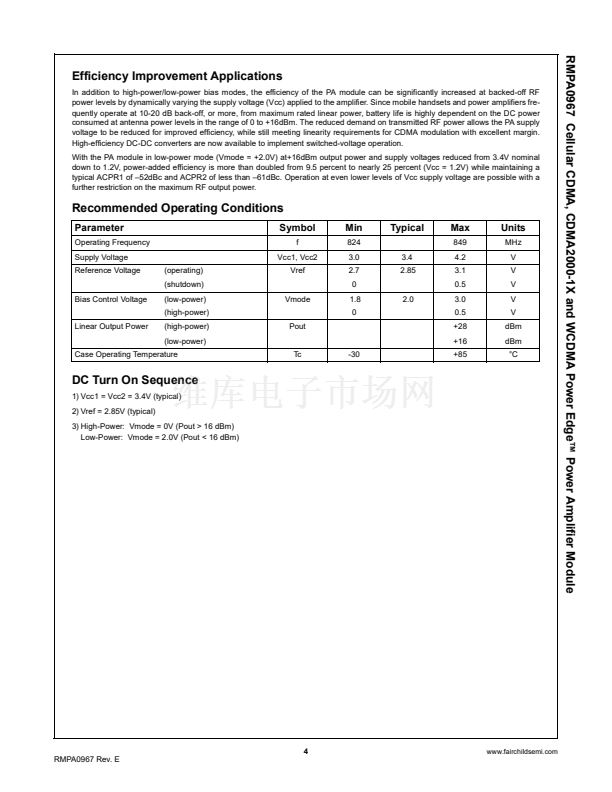

標準包裝
4,000
類別
RF/IF 和 RFID
家庭
RF 放大器
系列
-
頻率
824MHz ~ 849MHz
P1dB
-
增益
28dB
噪音數據
-
RF 型
手機，CDMA，CDMA2000，AMPS，IS-95，HSDPA
電源電壓
3 V ~ 4.2 V
電流 - 電源
60mA
測試頻率
-
封裝/外殼
8-LCC
包裝
帶卷 (TR)
其它名稱
RMPA0967TR
