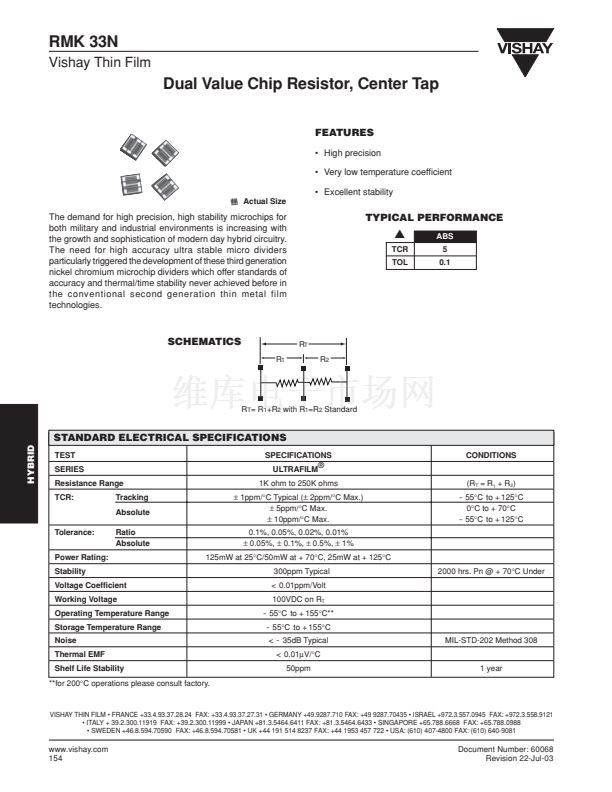

RMK 33N
Vishay Thin Film
Dual Value Chip Resistor, Center Tap
FEATURES
鈥?High precision
鈥?Very low temperature coefficient
鈥?Excellent stability
Actual Size
The demand for high precision, high stability microchips for
both military and industrial environments is increasing with
the growth and sophistication of modern day hybrid circuitry.
The need for high accuracy ultra stable micro dividers
particularly triggered the development of these third generation
nickel chromium microchip dividers which offer standards of
accuracy and thermal/time stability never achieved before in
the conventional second generation thin metal film
technologies.
TYPICAL PERFORMANCE
v
TCR
TOL
ABS
5
0.1
SCHEMATICS
R
1
R
T
R
2
R
T
= R
1
+R
2
with R
1
=R
2
Standard
STANDARD ELECTRICAL SPECIFICATIONS
HYBRID
TEST
SERIES
Resistance Range
TCR:
Tracking
Absolute
Tolerance:
Power Rating:
Stability
Voltage Coefficient
Working Voltage
Operating Temperature Range
Storage Temperature Range
Noise
Thermal EMF
Shelf Life Stability
**for 200擄C operations please consult factory.
Ratio
Absolute
SPECIFICATIONS
ULTRAFILM廬
1K ohm to 250K ohms
鹵
1ppm/擄C Typical (鹵 2ppm/擄C Max.)
鹵
5ppm/擄C Max.
鹵
10ppm/擄C Max.
0.1%, 0.05%, 0.02%, 0.01%
鹵
0.05%,
鹵
0.1%,
鹵
0.5%,
鹵
1%
125mW at 25擄C/50mW at + 70擄C, 25mW at + 125擄C
300ppm Typical
< 0.01ppm/Volt
100VDC on R
T
- 55擄C to + 155擄C**
- 55擄C to + 155擄C
< - 35dB Typical
< 0.01碌V/擄C
50ppm
1 year
MIL-STD-202 Method 308
2000 hrs. Pn @ + 70擄C Under
CONDITIONS
(R
T
= R
1
+ R
2
)
- 55擄C to + 125擄C
0擄C to + 70擄C
- 55擄C to + 125擄C
