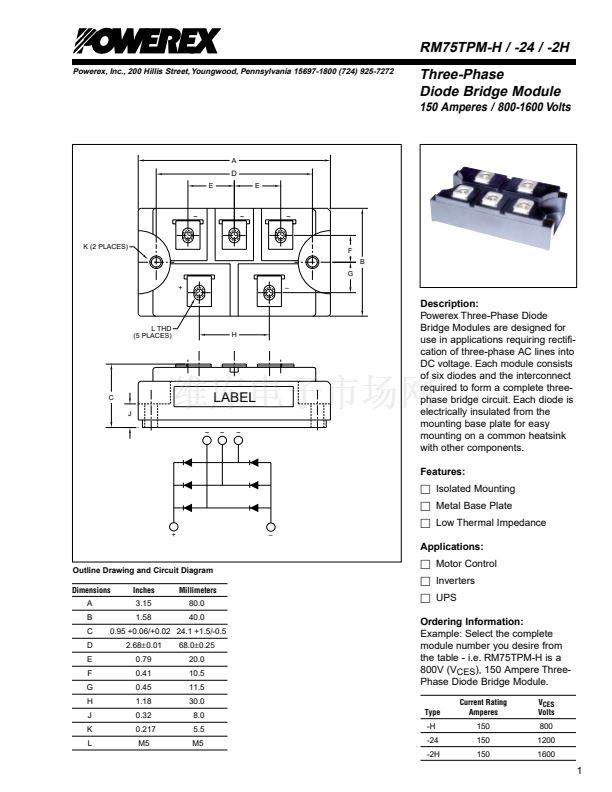

RM75TPM-H / -24 / -2H
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272
Three-Phase
Diode Bridge Module
150 Amperes / 800-1600 Volts
A
D
E
E
~
~
~
K (2 PLACES)
F
B
G
+
鈥?/div>
L THD
(5 PLACES)
H
C
J
~
LABEL
~
~
Description:
Powerex Three-Phase Diode
Bridge Modules are designed for
use in applications requiring rectifi-
cation of three-phase AC lines into
DC voltage. Each module consists
of six diodes and the interconnect
required to form a complete three-
phase bridge circuit. Each diode is
electrically insulated from the
mounting base plate for easy
mounting on a common heatsink
with other components.
Features:
鈻?/div>
Isolated Mounting
鈻?/div>
Metal Base Plate
鈻?/div>
Low Thermal Impedance
+
鈥?/div>
Applications:
Outline Drawing and Circuit Diagram
Dimensions
A
B
C
D
E
F
G
H
J
K
L
Inches
3.15
1.58
Millimeters
80.0
40.0
鈻?/div>
Motor Control
鈻?/div>
Inverters
鈻?/div>
UPS
Ordering Information:
Example: Select the complete
module number you desire from
the table - i.e. RM75TPM-H is a
800V (V
CES
), 150 Ampere Three-
Phase Diode Bridge Module.
Type
-H
-24
-2H
Current Rating
Amperes
150
150
150
V
CES
Volts
800
1200
1600
0.95 +0.06/+0.02 24.1 +1.5/-0.5
2.68鹵0.01
0.79
0.41
0.45
1.18
0.32
0.217
M5
68.0鹵0.25
20.0
10.5
11.5
30.0
8.0
5.5
M5
1
