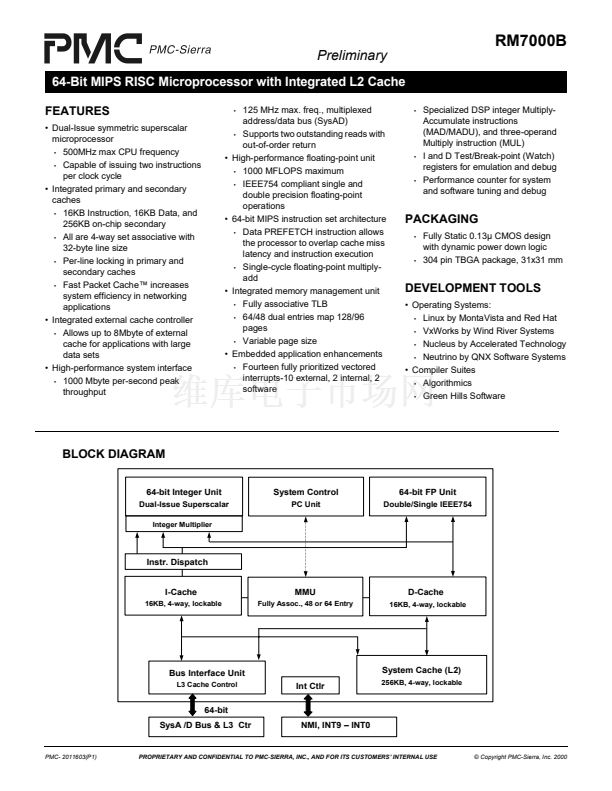

RM7000B
Preliminary
64-Bit MIPS RISC Microprocessor with Integrated L2 Cache
FEATURES
鈥?Dual-Issue symmetric superscalar
microprocessor
鈥?/div>
500MHz max CPU frequency
鈥?/div>
Capable of issuing two instructions
per clock cycle
鈥?Integrated primary and secondary
caches
鈥?/div>
16KB Instruction, 16KB Data, and
256KB on-chip secondary
鈥?/div>
All are 4-way set associative with
32-byte line size
鈥?/div>
Per-line locking in primary and
secondary caches
鈥?/div>
Fast Packet Cache鈩?increases
system efficiency in networking
applications
鈥?Integrated external cache controller
鈥?/div>
Allows up to 8Mbyte of external
cache for applications with large
data sets
鈥?High-performance system interface
鈥?/div>
1000 Mbyte per-second peak
throughput
125 MHz max. freq., multiplexed
address/data bus (SysAD)
鈥?/div>
Supports two outstanding reads with
out-of-order return
High-performance floating-point unit
鈥?/div>
1000 MFLOPS maximum
鈥?/div>
IEEE754 compliant single and
double precision floating-point
operations
64-bit MIPS instruction set architecture
鈥?/div>
Data PREFETCH instruction allows
the processor to overlap cache miss
latency and instruction execution
鈥?/div>
Single-cycle floating-point multiply-
add
Integrated memory management unit
鈥?/div>
Fully associative TLB
鈥?/div>
64/48 dual entries map 128/96
pages
鈥?/div>
Variable page size
Embedded application enhancements
鈥?/div>
Fourteen fully prioritized vectored
interrupts-10 external, 2 internal, 2
software
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Specialized DSP integer Multiply-
Accumulate instructions
(MAD/MADU), and three-operand
Multiply instruction (MUL)
I and D Test/Break-point (Watch)
registers for emulation and debug
Performance counter for system
and software tuning and debug
鈥?/div>
PACKAGING
鈥?/div>
鈥?/div>
Fully Static 0.13碌 CMOS design
with dynamic power down logic
304 pin TBGA package, 31x31 mm
鈥?/div>
DEVELOPMENT TOOLS
鈥?Operating Systems:
鈥?/div>
Linux by MontaVista and Red Hat
鈥?/div>
VxWorks by Wind River Systems
鈥?/div>
Nucleus by Accelerated Technology
鈥?/div>
Neutrino by QNX Software Systems
鈥?Compiler Suites
鈥?/div>
Algorithmics
鈥?/div>
Green Hills Software
鈥?/div>
BLOCK DIAGRAM
64-bit Integer Unit
Dual-Issue Superscalar
Integer Multiplier
System Control
PC Unit
64-bit FP Unit
Double/Single IEEE754
Instr. Dispatch
I-Cache
16KB, 4-way, lockable
MMU
Fully Assoc., 48 or 64 Entry
D-Cache
16KB, 4-way, lockable
Bus Interface Unit
L3 Cache Control
System Cache (L2)
Int Ctlr
256KB, 4-way, lockable
64-bit
SysA /D Bus & L3 Ctr
NMI, INT9 鈥?INT0
PMC- 2011603(P1)
PROPRIETARY AND CONFIDENTIAL TO PMC-SIERRA, INC., AND FOR ITS CUSTOMERS鈥?INTERNAL USE
漏 Copyright PMC-Sierra, Inc. 2000
