RM50HG-12S Datasheet

IC型號：
RM50HG-12S
PDF描述：
Super Fast Recovery Single Diode (50 Amperes/600 Volts)
文件大?。?/label>
59.15KB
PDF頁數：
2頁
芯片廠家：
POWEREX

閱覽下載糾錯 0

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

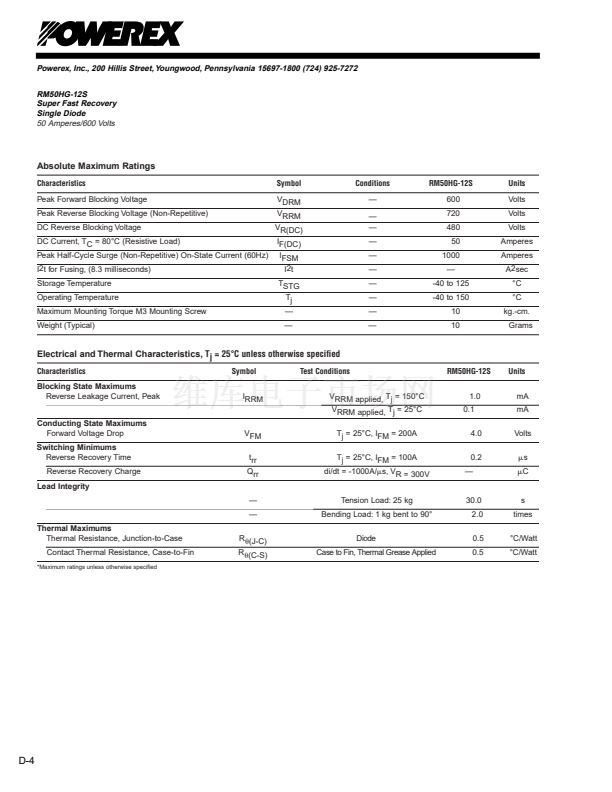

RM50HG-12S

Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272

Super Fast Recovery

Single Diode

50 Amperes/600 Volts

Description:

Powerex Super Fast Recovery

Diodes are designed for use in

applications requiring fast

switching.

Features:

Non-Isolated Package

Planar Chips

G - DIA.

RM50HG-12S

Super Fast Recovery

Single Diode

50 Amperes/600 Volts

trr = 200 ns Max.

Applications:

Snubber Circuits

Switching Power Supplies

Free Wheeling

Outline Drawing

Dimension

Inches

1.02鹵0.02

0.81 Max.

0.79 Min.

0.24鹵0.008

0.214鹵0.012

0.20鹵0.012

Millimeters

26.0鹵0.5

20.5 Max.

20.0 Min.

6.0鹵0.2

5.45鹵0.3

5.0鹵0.3

Ordering Information:

Select the complete eight digit

part number you desire from

the table below.

Example: RM50HG-12S is a

600 Volt, 50 Ampere Super Fast

Recovery Single Diode.

Type

Current Rating

Amperes

Voltage

Volts (x50)

0.214鹵0.012 Dia. Dia. 3.2鹵0.2

0.12鹵0.012

0.10鹵0.012

0.10

0.08鹵0.012

0.04鹵0.008

0.02鹵0.008

3.0鹵0.3

2.5鹵0.3

2.5

2.0鹵0.3

1.0鹵0.2

0.6鹵0.2

D-3

標準包裝
7
類別
分離式半導體產品
家庭
單二極管/整流器
系列
-
二極管類型
標準
電壓 - (Vr)（最大）
600V
電流 - 平均整流 (Io)
50A
電壓 - 在 If 時為正向 (Vf)（最大）
4V @ 200A
速度
快速恢復 = 200mA（Io）
反向恢復時間
200ns
電流 - 在 Vr 時反向漏電
100µA @ 600V
電容@ Vr, F
-
安裝類型
通孔
封裝/外殼
TO-264-3，TO-264AA
供應商設備封裝
-
包裝
散裝
