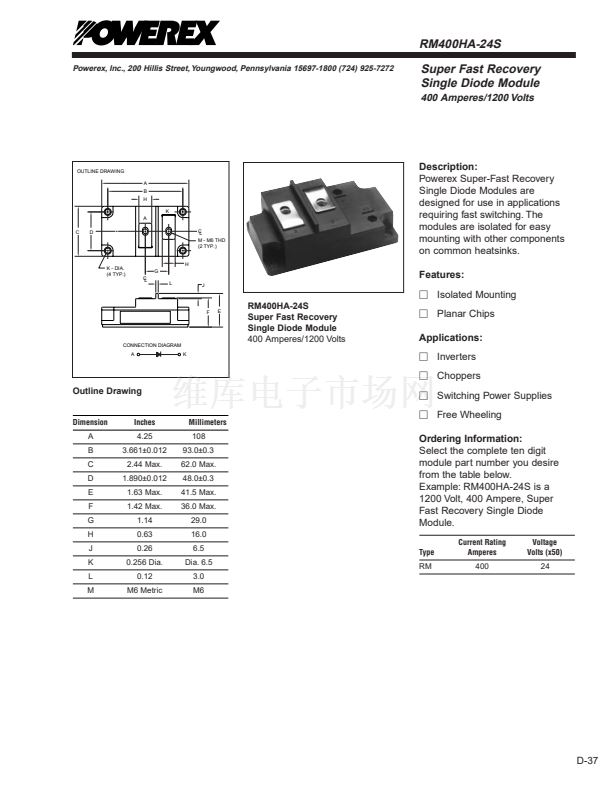

RM400HA-24S

Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272

Super Fast Recovery

Single Diode Module

400 Amperes/1200 Volts

OUTLINE DRAWING

A

B

H

K

A

C

D

C

L

M - M6 THD

(2 TYP.)

H

G

C

L

L

J

Description:

Powerex Super-Fast Recovery

Single Diode Modules are

designed for use in applications

requiring fast switching. The

modules are isolated for easy

mounting with other components

on common heatsinks.

Features:

Isolated Mounting

RM400HA-24S

Super Fast Recovery

Single Diode Module

400 Amperes/1200 Volts

K - DIA.

(4 TYP.)

F

E

Planar Chips

Applications:

Inverters

Choppers

CONNECTION DIAGRAM

A

K

Outline Drawing

Switching Power Supplies

Millimeters

108

93.0鹵0.3

62.0 Max.

48.0鹵0.3

41.5 Max.

36.0 Max.

29.0

16.0

6.5

Dia. 6.5

3.0

M6

Type

RM

Current Rating

Amperes

400

Voltage

Volts (x50)

24

Dimension

A

B

C

D

E

F

G

H

J

K

L

M

Inches

4.25

3.661鹵0.012

2.44 Max.

1.890鹵0.012

1.63 Max.

1.42 Max.

1.14

0.63

0.26

0.256 Dia.

0.12

M6 Metric

Free Wheeling

Ordering Information:

Select the complete ten digit

module part number you desire

from the table below.

Example: RM400HA-24S is a

1200 Volt, 400 Ampere, Super

Fast Recovery Single Diode

Module.

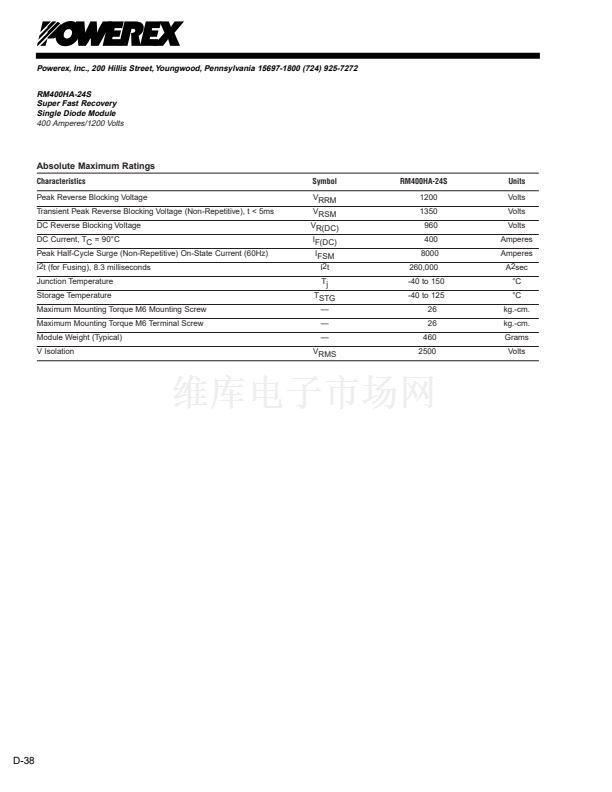

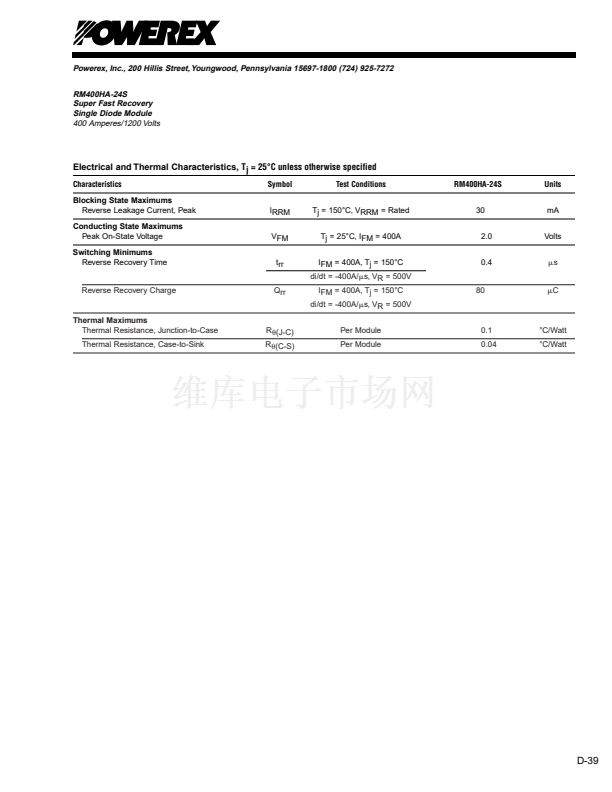

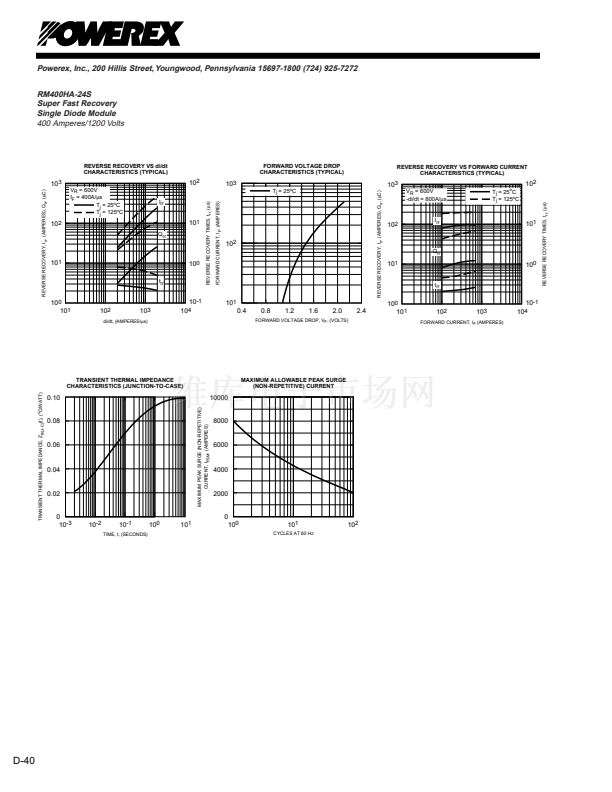

D-37
