RM20TPM-24
RM20TPM-2H Tentative
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272
Three-Phase
Diode Bridge Modules
40 Amperes/1200-1600 Volts
A
D
J
L
P - DIA.
(2 TYP.)
G
Q - M4 THD.
(5 TYP.)
C
K
H
H
B
M
E
F
N

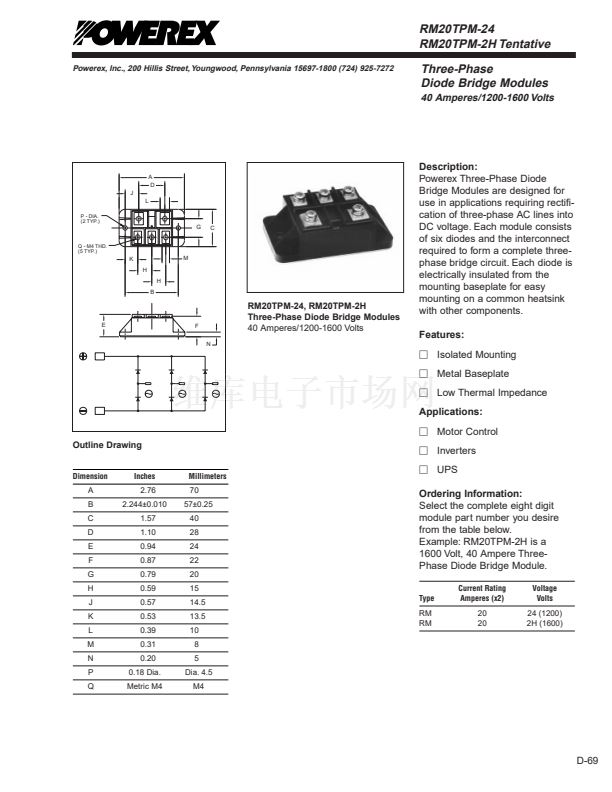

RM20TPM-24, RM20TPM-2H
Three-Phase Diode Bridge Modules
40 Amperes/1200-1600 Volts
Description:
Powerex Three-Phase Diode
Bridge Modules are designed for
use in applications requiring rectifi-
cation of three-phase AC lines into
DC voltage. Each module consists
of six diodes and the interconnect
required to form a complete three-
phase bridge circuit. Each diode is
electrically insulated from the
mounting baseplate for easy
mounting on a common heatsink
with other components.
Features:
Isolated Mounting
Metal Baseplate
Low Thermal Impedance
Applications:
Motor Control
Outline Drawing
Inverters
Millimeters
70
57鹵0.25
40
28
24
22
20
15
14.5
13.5
10
8
5
Dia. 4.5
M4
Type
RM
RM
Current Rating
Amperes (x2)
20
20
Voltage
Volts
24 (1200)
2H (1600)
Dimension
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
Inches
2.76
2.244鹵0.010
1.57
1.10
0.94
0.87
0.79
0.59
0.57
0.53
0.39
0.31
0.20
0.18 Dia.
Metric M4
UPS
Ordering Information:
Select the complete eight digit
module part number you desire
from the table below.
Example: RM20TPM-2H is a
1600 Volt, 40 Ampere Three-
Phase Diode Bridge Module.
