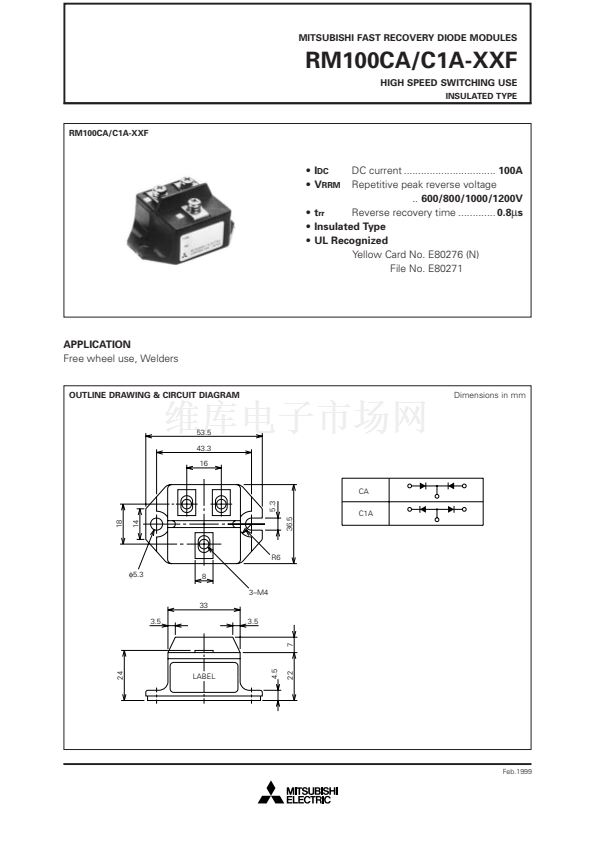

MITSUBISHI FAST RECOVERY DIODE MODULES
RM100CA/C1A-XXF
HIGH SPEED SWITCHING USE
INSULATED TYPE
RM100CA/C1A-XXF
DC current ................................
100A
Repetitive peak reverse voltage
..
600/800/1000/1200V
鈥?/div>
t
rr
Reverse recovery time .............
0.8
碌
s
鈥?/div>
Insulated Type
鈥?/div>
UL Recognized
Yellow Card No. E80276 (N)
File No. E80271
鈥?/div>
I
DC
鈥?/div>
V
RRM
APPLICATION
Free wheel use, Welders
OUTLINE DRAWING & CIRCUIT DIAGRAM
Dimensions in mm
53.5
43.3
16
CA
5.3
R6
蠁5.3
8
3鈥揗4
33
3.5
3.5
7
24
4.5
LABEL
22
36.5
C1A
18
14
Feb.1999
