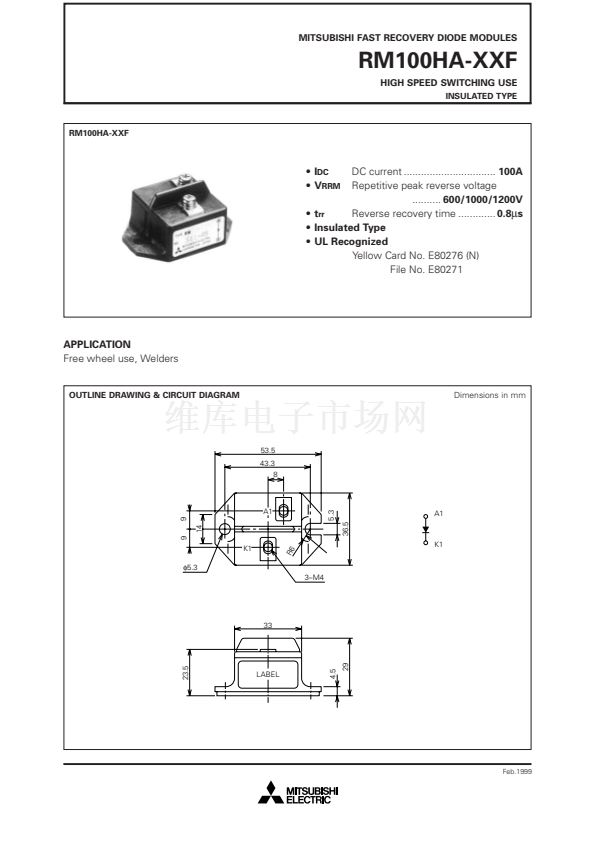

MITSUBISHI FAST RECOVERY DIODE MODULES
RM100HA-XXF
HIGH SPEED SWITCHING USE
INSULATED TYPE
RM100HA-XXF
DC current ................................
100A
Repetitive peak reverse voltage
..........
600/1000/1200V
鈥?/div>
t
rr
Reverse recovery time .............
0.8
碌
s
鈥?/div>
Insulated Type
鈥?/div>
UL Recognized
Yellow Card No. E80276 (N)
File No. E80271
鈥?/div>
I
DC
鈥?/div>
V
RRM
APPLICATION
Free wheel use, Welders
OUTLINE DRAWING & CIRCUIT DIAGRAM
Dimensions in mm
53.5
43.3
8
5.3
A1
9
14
A1
36.5
9
蠁5.3
3鈥揗4
33
R6
K1
K1
23.5
LABEL
4.5
29
Feb.1999
