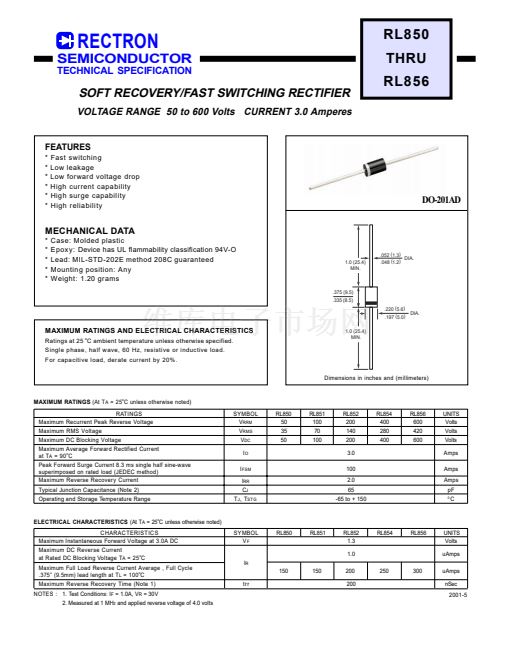

RECTRON
SEMICONDUCTOR
TECHNICAL SPECIFICATION
RL850
THRU
RL856
SOFT RECOVERY/FAST SWITCHING RECTIFIER
VOLTAGE RANGE 50 to 600 Volts CURRENT 3.0 Amperes
FEATURES
*
*
*
*
*
*
Fast switching
Low leakage
Low forward voltage drop
High current capability
High surge capability
High reliability
DO-201AD
MECHANICAL DATA
*
*
*
*
*
Case: Molded plastic
Epoxy: Device has UL flammability classification 94V-O
Lead: MIL-STD-202E method 208C guaranteed
Mounting position: Any
Weight: 1.20 grams
.052 (1.3)
DIA.
.048 (1.2)
1.0 (25.4)
MIN.
.375 (9.5)
.335 (8.5)
.220 (5.6)
DIA.
.197 (5.0)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
o
1.0 (25.4)
MIN.
Dimensions in inches and (millimeters)
MAXIMUM RATINGS
(At T
A
= 25
o
C unless otherwise noted)
RATINGS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
o
at T
A
= 90 C
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Maximum Reverse Recovery Current
Typical Junction Capacitance (Note 2)
Operating and Storage Temperature Range
SYMBOL
V
RRM
V
RMS
V
DC
I
O
I
FSM
I
RR
C
J
T
J
, T
STG
RL850
50
35
50
RL851
100
70
100
RL852
200
140
200
3.0
100
2.0
65
-65 to + 150
RL854
400
280
400
RL856
600
420
600
UNITS
Volts
Volts
Volts
Amps
Amps
Amps
0
pF
C
ELECTRICAL CHARACTERISTICS
(At T
A
= 25 C unless otherwise noted)
CHARACTERISTICS
Maximum Instantaneous Forward Voltage at 3.0A DC
Maximum DC Reverse Current
at Rated DC Blocking Voltage T
A
= 25
o
C
Maximum Full Load Reverse Current Average , Full Cycle
.375鈥?(9.5mm) lead length at T
L
= 100
o
C
Maximum Reverse Recovery Time (Note 1)
NOTES : 1. Test Conditions: I
F
= 1.0A, V
R
= 30V
2. Measured at 1 MH
Z
and applied reverse voltage of 4.0 volts
SYMBOL
V
F
RL850
RL851
RL852
1.3
1.0
I
R
150
trr
150
200
200
250
300
uAmps
nSec
2001-5
RL854
RL856
UNITS
Volts
uAmps
o
RECTRON
1
2
