RECTRON
SEMICONDUCTOR
TECHNICAL SPECIFICATION

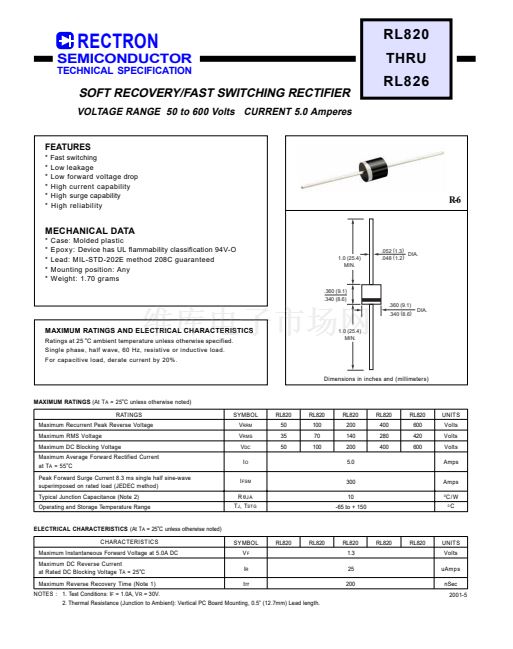

RL820
THRU
RL826
SOFT RECOVERY/FAST SWITCHING RECTIFIER
VOLTAGE RANGE 50 to 600 Volts CURRENT 5.0 Amperes
FEATURES
*
*
*
*
*
*
Fast switching
Low leakage
Low forward voltage drop
High current capability
High surge capability
High reliability
R-6
MECHANICAL DATA
*
*
*
*
*
Case: Molded plastic
Epoxy: Device has UL flammability classification 94V-O
Lead: MIL-STD-202E method 208C guaranteed
Mounting position: Any
Weight: 1.70 grams
1.0 (25.4)
MIN.
.052 (1.3)
DIA.
.048 (1.2)
.360 (9.1)
.340 (8.6)
.360 (9.1)
.340 (8.6)
DIA.
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
o
1.0 (25.4)
MIN.
Dimensions in inches and (millimeters)
MAXIMUM RATINGS
(At T
A
= 25
o
C unless otherwise noted)
RATINGS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
o
at T
A
= 55 C
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Typical Junction Capacitance (Note 2)
Operating and Storage Temperature Range
SYMBOL
V
RRM
V
RMS
V
DC
I
O
I
FSM
R
胃
JA
T
J
, T
STG
RL820
50
35
50
RL820
100
70
100
RL820
200
140
200
5.0
300
10
-65 to + 150
RL820
400
280
400
RL820
600
420
600
UNITS
Volts
Volts
Volts
Amps
Amps
0
C/ W
0
C
ELECTRICAL CHARACTERISTICS
(At T
A
= 25 C unless otherwise noted)
CHARACTERISTICS
Maximum Instantaneous Forward Voltage at 5.0A DC
Maximum DC Reverse Current
at Rated DC Blocking Voltage T
A
= 25
o
C
Maximum Reverse Recovery Time (Note 1)
SYMBOL
V
F
I
R
trr
RL820
RL820
RL820
1.3
25
200
RL820
RL820
UNITS
Volts
uAmps
nSec
2001-5
o
NOTES : 1. Test Conditions: I
F
= 1.0A, V
R
= 30V.
2. Thermal Resistance (Junction to Ambient): Vertical PC Board Mounting, 0.5鈥?(12.7mm) Lead length.
