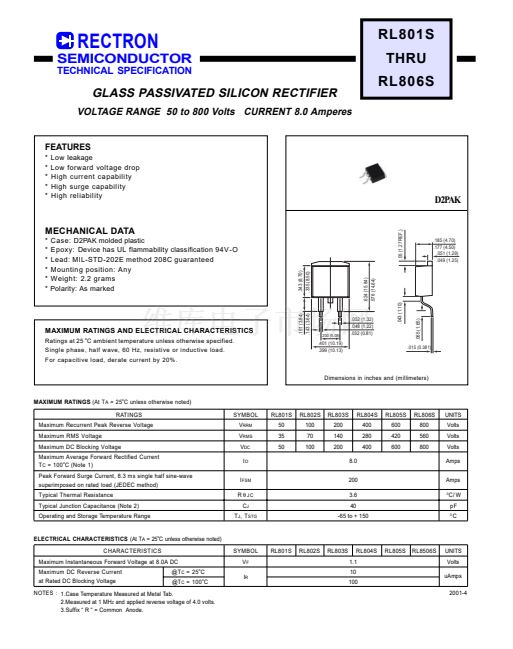

RECTRON
SEMICONDUCTOR
TECHNICAL SPECIFICATION
RL801S
THRU
RL806S
GLASS PASSIVATED SILICON RECTIFIER
VOLTAGE RANGE 50 to 800 Volts CURRENT 8.0 Amperes
FEATURES
*
*
*
*
*
Low Ieakage
Low forward voltage drop
High current capability
High surge capability
High reliability
D2PAK
.05 (1.27 REF.)
MECHANICAL DATA
*
*
*
*
*
*
Case: D2PAK molded plastic
Epoxy: Device has UL flammability classification 94V-O
Lead: MIL-STD-202E method 208C guaranteed
Mounting position: Any
Weight: 2.2 grams
Polarity: As marked
.185 (4.70)
.177 (4.50)
.051 (1.29)
.049 (1.25)
.343 (8.70)
.335 (8.50)
.624 (15.84)
.576 (14.64)
.151 (3.84)
.143 (3.64)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
o
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
.200 (5.08)
.401 (10.19)
.399 (10.13)
.015 (0.381)
Dimensions in inches and (millimeters)
MAXIMUM RATINGS
(At T
A
= 25
o
C unless otherwise noted)
RATINGS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
o
T
C
= 100 C (Note 1)
Peak Forward Surge Current, 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Typical Thermal Resistance
Typical Junction Capacitance (Note 2)
Operating and Storage Temperature Range
SYMBOL
V
RRM
V
RMS
V
DC
I
O
I
FSM
R
胃
JC
C
J
T
J
, T
STG
RL801S
50
35
50
RL802S
100
70
100
RL803S
200
140
200
8.0
200
3.6
40
-65 to + 150
RL804S
400
280
400
RL805S
600
420
600
RL806S
800
560
800
UNITS
Volts
Volts
Volts
Amps
Amps
0
.065 (1.65)
.052 (1.32)
.048 (1.22)
.032 (0.81)
.043 (1.10)
C/ W
pF
0
C
o
ELECTRICAL CHARACTERISTICS
(At T
A
= 25 C unless otherwise noted)
CHARACTERISTICS
Maximum Instantaneous Forward Voltage at 8.0A DC
Maximum DC Reverse Current
at Rated DC Blocking Voltage
@T
C
= 25 C
@T
C
= 100
o
C
o
SYMBOL
V
F
I
R
RL801S
RL802S
RL803S
RL804S
1.1
10
100
RL805S
RL8506S
UNITS
Volts
uAmps
2001-4
NOTES : 1.Case Temperature Measured at Metal Tab.
2.Measured at 1 MH
Z
and applied reverse voltage of 4.0 volts.
3.Suffix 鈥?R 鈥?= Common Anode.
