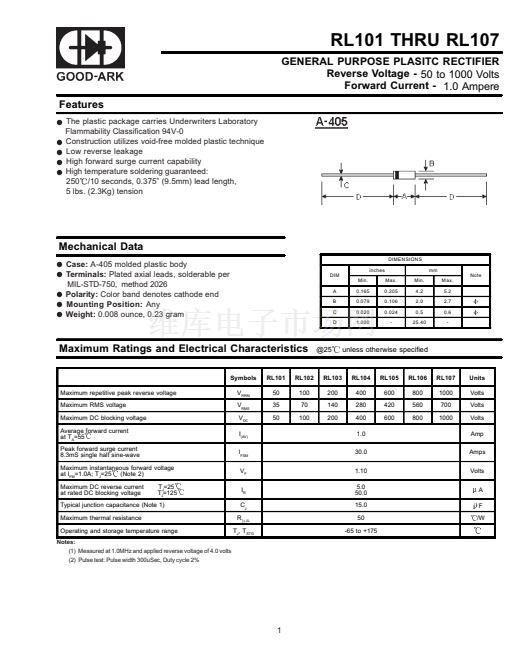

RL101 THRU RL107
GENERAL PURPOSE PLASITC RECTIFIER
Reverse Voltage -
50 to 1000 Volts
Forward Current -
1.0 Ampere
Features
The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
Construction utilizes void-free molded plastic technique
Low reverse leakage
High forward surge current capability
High temperature soldering guaranteed:
250 /10 seconds, 0.375聰 (9.5mm) lead length,
5 lbs. (2.3Kg) tension
Mechanical Data
Case:
A-405 molded plastic body
Terminals:
Plated axial leads, solderable per
MIL-STD-750, method 2026
Polarity:
Color band denotes cathode end
Mounting Position:
Any
Weight:
0.008 ounce, 0.23 gram
DIM ENSIONS
DIM
A
B
C
D
inches
Min.
0.165
0.079
0.020
1.000
Max.
0.205
0.106
0.024
-
Min.
4.2
2.0
0.5
25.40
mm
Max.
5.2
2.7
0.6
-
Note
Maximum Ratings and Electrical Characteristics
Symbols
RL101
RL102
@25
unless otherwise specified
RL103
RL104
RL105
RL106
RL107
Units
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Average forward current
at T
A
=55
Peak forward surge current
8.3mS single half sine-wave
Maximum instantaneous forward voltage
at I
FM
=1.0A; T
J
=25 (Note 2)
Maximum DC reverse current
at rated DC blocking voltage
T
J
=25
T
J
=125
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
V
F
I
R
C
J
R
JL
50
35
50
100
70
100
200
140
200
400
280
400
1.0
30.0
1.10
5.0
50.0
15.0
50
-65 to +175
600
420
600
800
560
800
1000
700
1000
Volts
Volts
Volts
Amp
Amps
Volts
A
F
/W
Typical junction capacitance (Note 1)
Maximum thermal resistance
Operating and storage temperature range
Notes:
(1) Measured at 1.0MHz and applied reverse voltage of 4.0 volts
(2) Pulse test: Pulse width 300uSec, Duty cycle 2%
T
J
, T
STG
1
1
2
3
