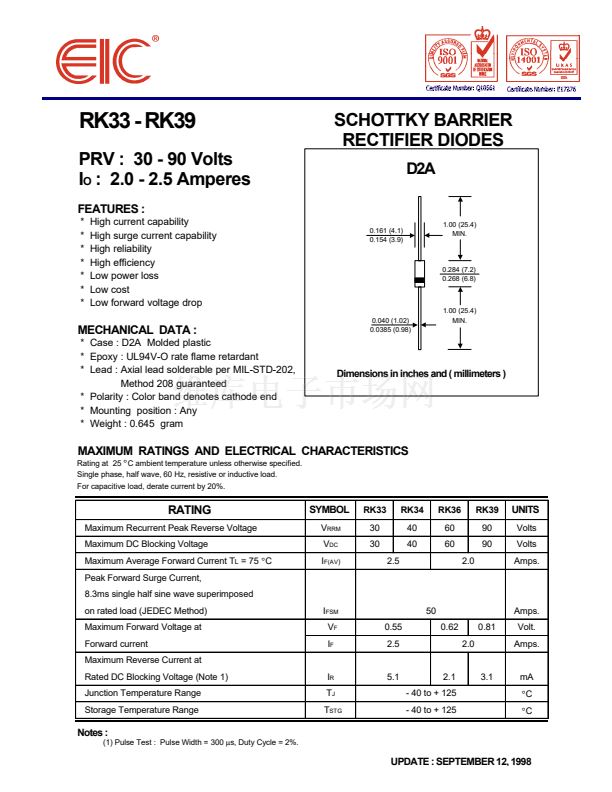

RK33 - RK39
PRV : 30 - 90 Volts
I
O
: 2.0 - 2.5 Amperes
FEATURES :
*
*
*
*
*
*
*
High current capability
High surge current capability
High reliability
High efficiency
Low power loss
Low cost
Low forward voltage drop
SCHOTTKY BARRIER
RECTIFIER DIODES
D2A
0.161 (4.1)
0.154 (3.9)
1.00 (25.4)
MIN.
0.284 (7.2)
0.268 (6.8)
MECHANICAL DATA :
* Case : D2A Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202,
Method 208 guaranteed
* Polarity : Color band denotes cathode end
* Mounting position : Any
* Weight : 0.645 gram
0.040 (1.02)
0.0385 (0.98)
1.00 (25.4)
MIN.
Dimensions in inches and ( millimeters )
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25
擄
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
RATING
Maximum Recurrent Peak Reverse Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Current T
L
= 75
擄C
Peak Forward Surge Current,
8.3ms single half sine wave superimposed
on rated load (JEDEC Method)
Maximum Forward Voltage at
Forward current
Maximum Reverse Current at
Rated DC Blocking Voltage (Note 1)
Junction Temperature Range
Storage Temperature Range
SYMBOL
V
RRM
V
DC
I
F(AV
)
RK33
30
30
2.5
RK34
40
40
RK36
60
60
2.0
RK39
90
90
UNITS
Volts
Volts
Amps.
I
FSM
V
F
I
F
0.55
2.5
50
0.62
2.0
0.81
Amps.
Volt.
Amps.
I
R
T
J
T
STG
5.1
2.1
- 40 to + 125
- 40 to + 125
3.1
mA
擄C
擄C
Notes :
(1) Pulse Test : Pulse Width = 300
碌s,
Duty Cycle = 2%.
UPDATE : SEPTEMBER 12, 1998
