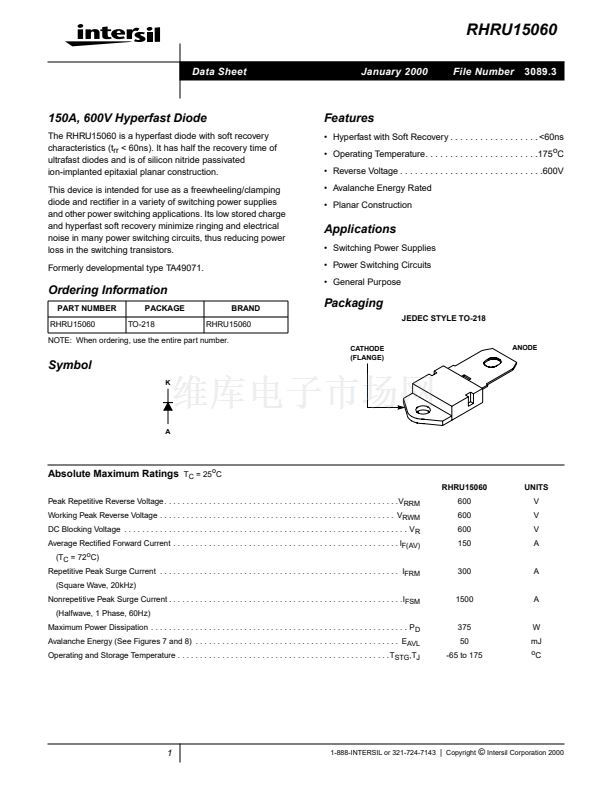

RHRU15060
Data Sheet
January 2000
File Number
3089.3
150A, 600V Hyperfast Diode
The RHRU15060 is a hyperfast diode with soft recovery
characteristics (t
rr
< 60ns). It has half the recovery time of
ultrafast diodes and is of silicon nitride passivated
ion-implanted epitaxial planar construction.
This device is intended for use as a freewheeling/clamping
diode and recti鏗乪r in a variety of switching power supplies
and other power switching applications. Its low stored charge
and hyperfast soft recovery minimize ringing and electrical
noise in many power switching circuits, thus reducing power
loss in the switching transistors.
Formerly developmental type TA49071.
Features
鈥?Hyperfast with Soft Recovery . . . . . . . . . . . . . . . . . . <60ns
鈥?Operating Temperature. . . . . . . . . . . . . . . . . . . . . . .175
o
C
鈥?Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . .600V
鈥?Avalanche Energy Rated
鈥?Planar Construction
Applications
鈥?Switching Power Supplies
鈥?Power Switching Circuits
鈥?General Purpose
Ordering Information
PART NUMBER
RHRU15060
PACKAGE
TO-218
BRAND
RHRU15060
Packaging
JEDEC STYLE TO-218
NOTE: When ordering, use the entire part number.
Symbol
K
CATHODE
(FLANGE)
ANODE
A
Absolute Maximum Ratings
T
C
= 25
o
C
RHRU15060
UNITS
V
V
V
A
600
600
600
150
Peak Repetitive Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .V
RRM
Working Peak Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
RWM
DC Blocking Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
R
Average Recti鏗乪d Forward Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
F(AV)
(T
C
= 72
o
C)
Repetitive Peak Surge Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
FRM
(Square Wave, 20kHz)
Nonrepetitive Peak Surge Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I
FSM
(Halfwave, 1 Phase, 60Hz)
Maximum Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P
D
Avalanche Energy (See Figures 7 and 8) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E
AVL
Operating and Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .T
STG
,T
J
300
A
1500
A
375
50
-65 to 175
W
mJ
o
C
1
1-888-INTERSIL or 321-724-7143
|
Copyright
漏
Intersil Corporation 2000
