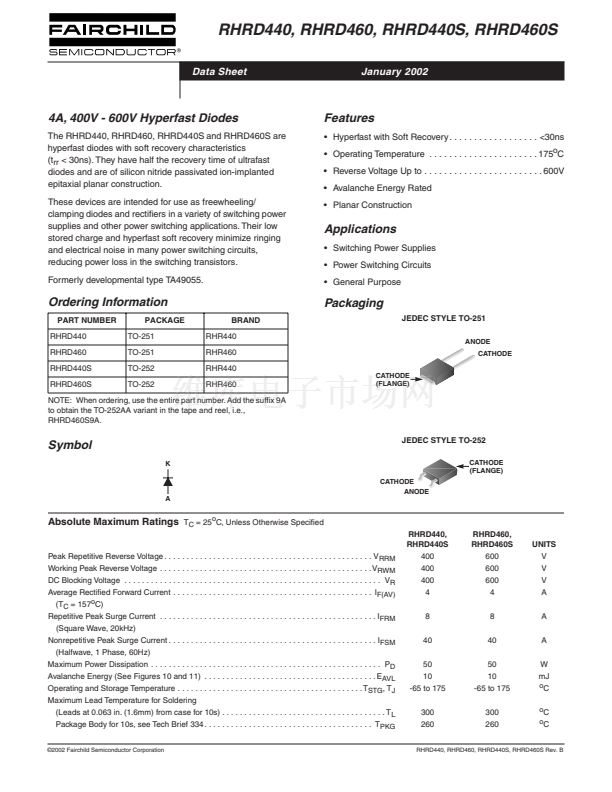

RHRD440, RHRD460, RHRD440S, RHRD460S
Data Sheet
January 2002
4A, 400V - 600V Hyperfast Diodes
The RHRD440, RHRD460, RHRD440S and RHRD460S are
hyperfast diodes with soft recovery characteristics
(t
rr
< 30ns). They have half the recovery time of ultrafast
diodes and are of silicon nitride passivated ion-implanted
epitaxial planar construction.
These devices are intended for use as freewheeling/
clamping diodes and recti鏗乪rs in a variety of switching power
supplies and other power switching applications. Their low
stored charge and hyperfast soft recovery minimize ringing
and electrical noise in many power switching circuits,
reducing power loss in the switching transistors.
Formerly developmental type TA49055.
Features
鈥?Hyperfast with Soft Recovery. . . . . . . . . . . . . . . . . . <30ns
鈥?Operating Temperature . . . . . . . . . . . . . . . . . . . . . . 175
o
C
鈥?Reverse Voltage Up to . . . . . . . . . . . . . . . . . . . . . . . . 600V
鈥?Avalanche Energy Rated
鈥?Planar Construction
Applications
鈥?Switching Power Supplies
鈥?Power Switching Circuits
鈥?General Purpose
Ordering Information
PART NUMBER
RHRD440
RHRD460
RHRD440S
RHRD460S
PACKAGE
TO-251
TO-251
TO-252
TO-252
BRAND
RHR440
RHR460
RHR440
RHR460
Packaging
JEDEC STYLE TO-251
ANODE
CATHODE
CATHODE
(FLANGE)
NOTE: When ordering, use the entire part number. Add the suf鏗亁 9A
to obtain the TO-252AA variant in the tape and reel, i.e.,
RHRD460S9A.
Symbol
K
JEDEC STYLE TO-252
CATHODE
(FLANGE)
CATHODE
ANODE
A
Absolute Maximum Ratings
T
C
= 25
o
C, Unless Otherwise Speci鏗乪d
RHRD440,
RHRD440S
RHRD460,
RHRD460S
600
600
600
4
8
40
50
10
-65 to 175
300
260
UNITS
V
V
V
A
A
A
W
mJ
o
C
o
C
o
C
Peak Repetitive Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
RRM
Working Peak Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .V
RWM
DC Blocking Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
R
Average Recti鏗乪d Forward Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
F(AV)
(T
C
= 157
o
C)
Repetitive Peak Surge Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
FRM
(Square Wave, 20kHz)
Nonrepetitive Peak Surge Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
FSM
(Halfwave, 1 Phase, 60Hz)
Maximum Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P
D
Avalanche Energy (See Figures 10 and 11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E
AVL
Operating and Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .T
STG
, T
J
Maximum Lead Temperature for Soldering
(Leads at 0.063 in. (1.6mm) from case for 10s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T
L
Package Body for 10s, see Tech Brief 334. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T
PKG
漏2002 Fairchild Semiconductor Corporation
400
400
400
4
8
40
50
10
-65 to 175
300
260
RHRD440, RHRD460, RHRD440S, RHRD460S Rev. B
