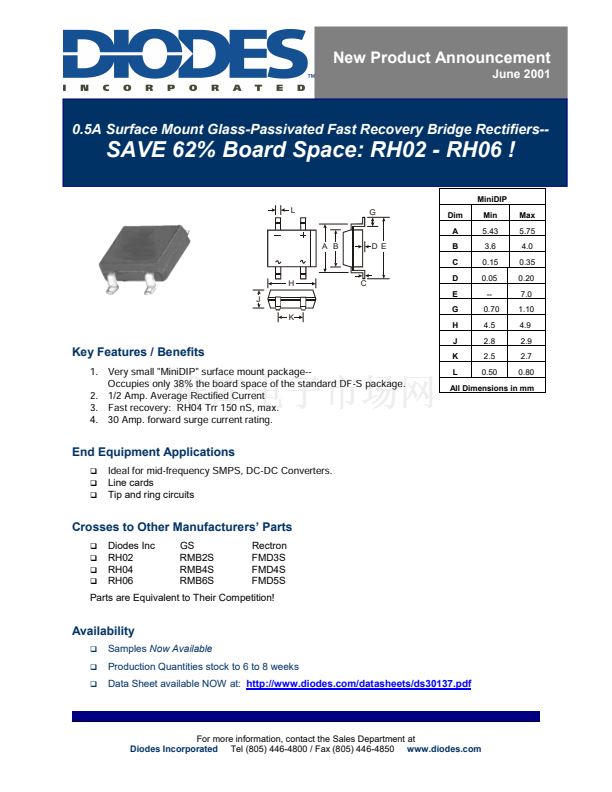

New Product Announcement
June 2001
0.5A Surface Mount Glass-Passivated Fast Recovery Bridge Rectifiers--
SAVE 62% Board Space: RH02 - RH06 !
MiniDIP
L
G
Dim
A
Min
5.43
3.6
0.15
0.05
--
0.70
4.5
2.8
2.5
0.50
Max
5.75
4.0
0.35
0.20
7.0
1.10
4.9
2.9
2.7
0.80
A B
D E
B
C
H
J
K
C
D
E
G
H
Key Features / Benefits
1. Very small "MiniDIP" surface mount package--
Occupies only 38% the board space of the standard DF-S package.
2. 1/2 Amp. Average Rectified Current
3. Fast recovery: RH04 Trr 150 nS, max.
4.
30 Amp. forward surge current rating.
J
K
L
All Dimensions in mm
End Equipment Applications
!
!
!
Ideal for mid-frequency SMPS, DC-DC Converters.
Line cards
Tip and ring circuits
Crosses to Other Manufacturers鈥?Parts
!
!
!
!
Diodes Inc
RH02
RH04
RH06
GS
RMB2S
RMB4S
RMB6S
Rectron
FMD3S
FMD4S
FMD5S
Parts are Equivalent to Their Competition!
Availability
!
!
!
Samples
Now Available
Production Quantities stock to 6 to 8 weeks
Data Sheet available NOW at:
http://www.diodes.com/datasheets/ds30137.pdf
_____________________________________________________________________________________________
For more information, contact the Sales Department at
Diodes Incorporated
Tel (805) 446-4800 / Fax (805) 446-4850
www.diodes.com
