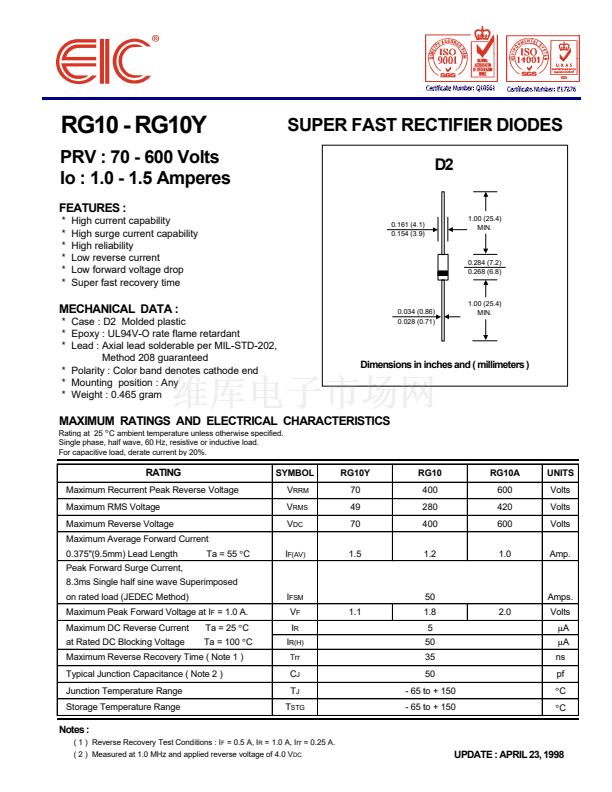

RG10 - RG10Y
PRV : 70 - 600 Volts
Io : 1.0 - 1.5 Amperes
FEATURES :
*
*
*
*
*
*
High current capability
High surge current capability
High reliability
Low reverse current
Low forward voltage drop
Super fast recovery time
SUPER FAST RECTIFIER DIODES
D2
0.161 (4.1)
0.154 (3.9)
1.00 (25.4)
MIN.
0.284 (7.2)
0.268 (6.8)
MECHANICAL DATA :
* Case : D2 Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202,
Method 208 guaranteed
* Polarity : Color band denotes cathode end
* Mounting position : Any
* Weight : 0.465 gram
0.034 (0.86)
0.028 (0.71)
1.00 (25.4)
MIN.
Dimensions in inches and ( millimeters )
Rating at 25
擄
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
RATING
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum Reverse Voltage
Maximum Average Forward Current
0.375"(9.5mm) Lead Length
8.3ms Single half sine wave Superimposed
on rated load (JEDEC Method)
Maximum Peak Forward Voltage at I
F
= 1.0 A.
Maximum DC Reverse Current
at Rated DC Blocking Voltage
Ta = 25
擄C
Ta = 100
擄C
Ta = 55
擄C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
RG10Y
70
49
70
1.5
RG10
400
280
400
1.2
RG10A
600
420
600
1.0
UNITS
Volts
Volts
Volts
Amp.
I
FSM
V
F
I
R
I
R(H)
Trr
50
1.1
1.8
5
50
35
50
- 65 to + 150
- 65 to + 150
2.0
Amps.
Volts
碌A(chǔ)
碌A(chǔ)
ns
pf
擄C
擄C
Maximum Reverse Recovery Time ( Note 1 )
Typical Junction Capacitance ( Note 2 )
Junction Temperature Range
Storage Temperature Range
C
J
T
J
T
STG
Notes :
( 1 ) Reverse Recovery Test Conditions : I
F
= 0.5 A, I
R
= 1.0 A, Irr = 0.25 A.
( 2 ) Measured at 1.0 MHz and applied reverse voltage of 4.0 V
DC
UPDATE : APRIL 23, 1998
