2.4 GHz ISM band wireless equipment

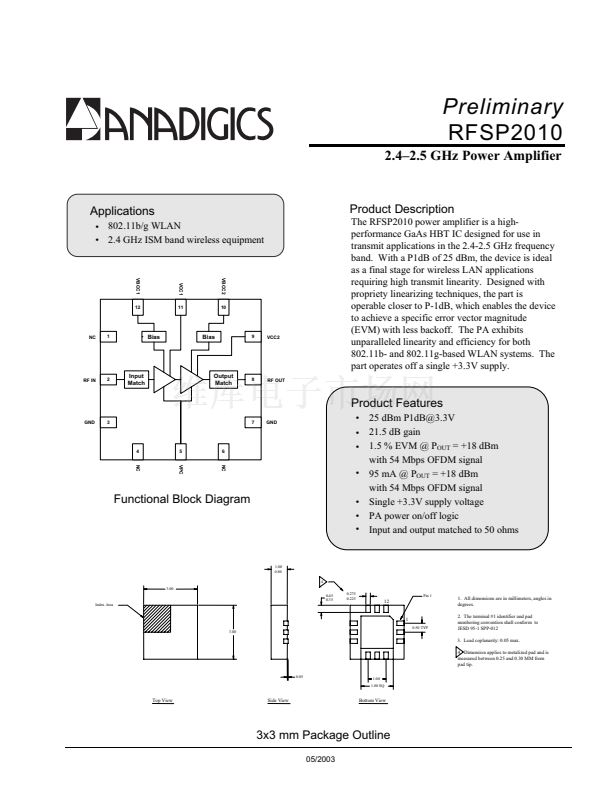

Product Description
The RFSP2010 power amplifier is a high-
performance GaAs HBT IC designed for use in
transmit applications in the 2.4-2.5 GHz frequency
band. With a P1dB of 25 dBm, the device is ideal
as a final stage for wireless LAN applications
requiring high transmit linearity. Designed with
propriety linearizing techniques, the part is
operable closer to P-1dB, which enables the device
to achieve a specific error vector magnitude
(EVM) with less backoff. The PA exhibits
unparalleled linearity and efficiency for both
802.11b- and 802.11g-based WLAN systems. The
part operates off a single +3.3V supply.
12
VBCC1
VBCC2
11
VCC1
10
NC
1
Bias
Bias
9
VCC2
RF IN
2
Input
Match
Output
Match
8
RF OUT
Product Features
GND
3
7
GND
4
NC
3.00
5
VPC
6
NC
1.00
0.80
4
0.45
0.35

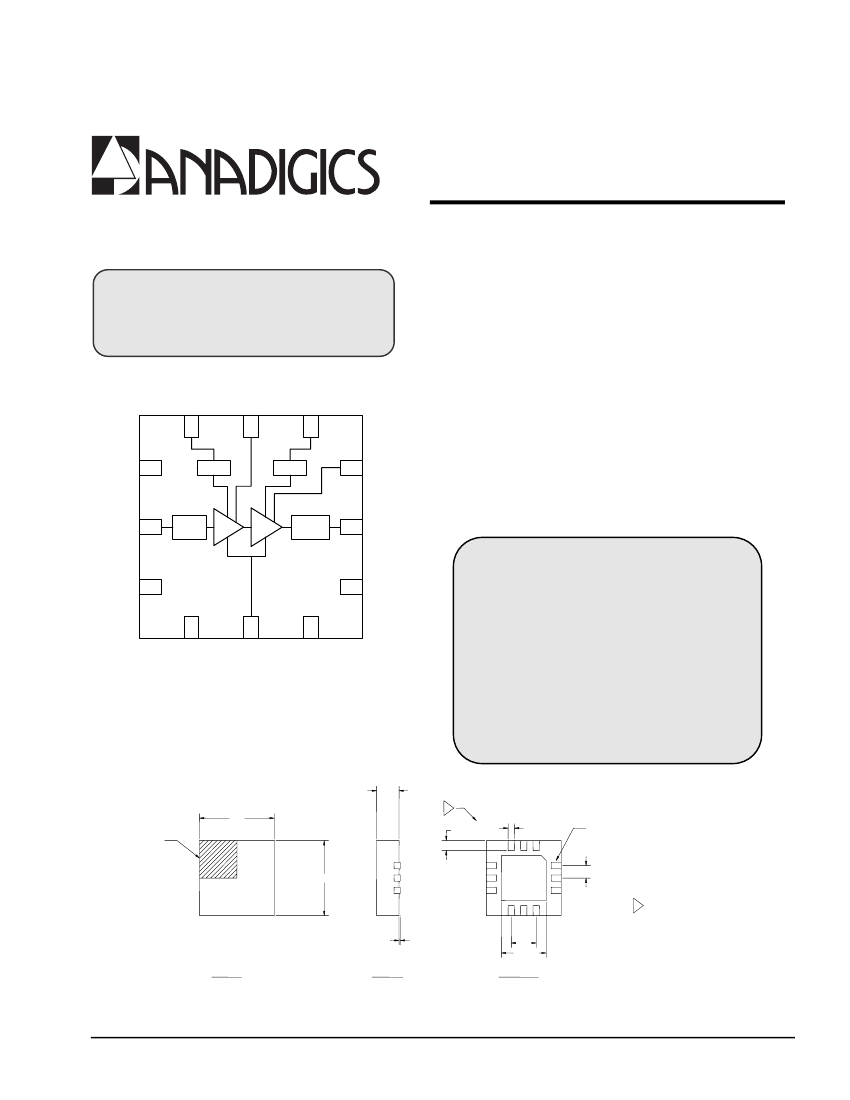

Functional Block Diagram
鈥?25 dBm P1dB@3.3V
鈥?/div>
21.5 dB gain
鈥?/div>
1.5 % EVM @ P
OUT
= +18 dBm
with 54 Mbps OFDM signal
鈥?/div>
95 mA @ P
OUT
= +18 dBm
with 54 Mbps OFDM signal
鈥?/div>
Single +3.3V supply voltage
鈥?/div>
PA power on/off logic
鈥?/div>
Input and output matched to 50 ohms
0.275
0.225
Pin 1
Index Area
12
1. All dimensions are in millimeters, angles in
degrees.
2. The terminal #1 identifier and pad
numbering convention shall conform to
JESD 95-1 SPP-012
3. Lead coplanarity: 0.05 max.
4. Dimension applies to metalized pad and is
measured between 0.25 and 0.30 MM from
pad tip.
1
0.50 TYP
3.00
0.05
1.00
1.80 SQ
Top View
Side View
Bottom View
3x3 mm Package Outline

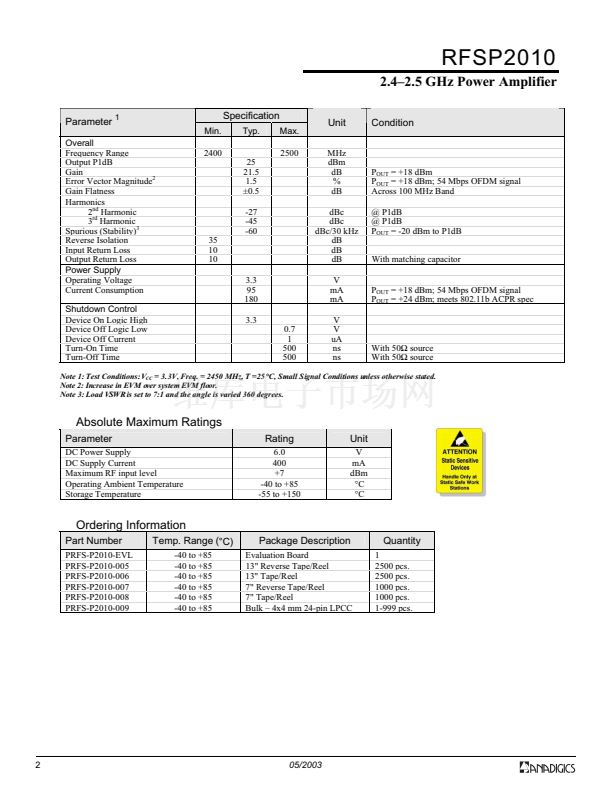

05/2003
