RFS1006 Datasheet

  • RFS1006

  • 3.4-3.6 GHz Power Amplifier

  • 4頁

  • ANADIGICS   ANADIGICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

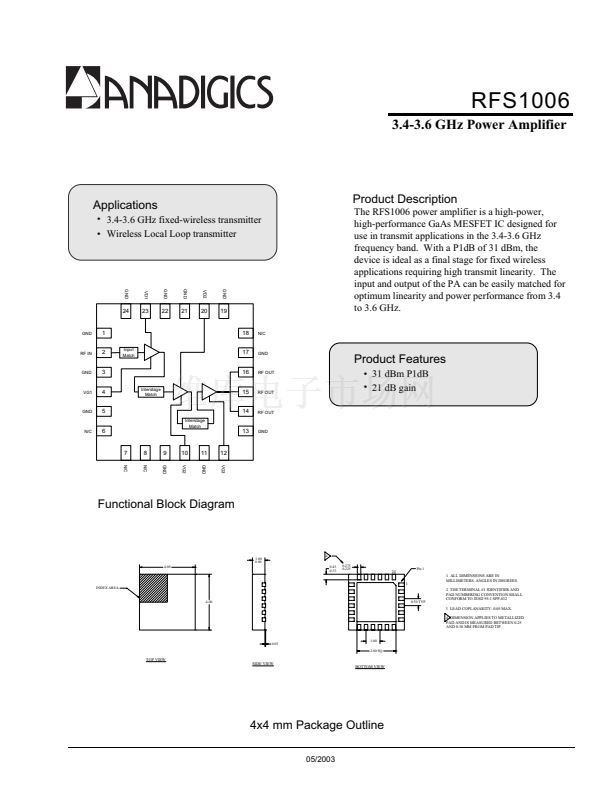

RFS1006
3.4-3.6 GHz Power Amplifier
Applications
鈥?/div>
3.4-3.6 GHz fixed-wireless transmitter
鈥?/div>
Wireless Local Loop transmitter
Product Description
The RFS1006 power amplifier is a high-power,
high-performance GaAs MESFET IC designed for
use in transmit applications in the 3.4-3.6 GHz
frequency band. With a P1dB of 31 dBm, the
device is ideal as a final stage for fixed wireless
applications requiring high transmit linearity. The
input and output of the PA can be easily matched for
optimum linearity and power performance from 3.4
to 3.6 GHz.
GND
24
GND
GND
GND
VD2
23
VD1
22
21
20
19
GND
1
2
3
4
5
6
Interstage
Match
Interstage
Match
Input
Match
18
17
16
15
14
13
N/C
RF IN
GND
Product Features
鈥?/div>
31 dBm P1dB
鈥?/div>
21 dB gain
GND
RF OUT
VG1
RF OUT
GND
RF OUT
N/C
GND
7
N/C
INDEX AREA
8
N/C
9
GND
4.00
10
VG2
11
GND
4.00
12
VG3
1.00
0.80
4
0.45
0.35
0.275
0.225
Pin 1
Functional Block Diagram
24
1
1 ALL DIMENSIONS ARE IN
MILLIMETERS, ANGLES IN DEGREES.
2 THE TERMINAL #1 IDENTIFIER AND
PAD NUMBERING CONVENTION SHALL
CONFORM TO JESD 95-1 SPP-012
3 LEAD COPLANARITY: 0.05 MAX.
4 DIMENSION APPLIES TO METALLIZED
PAD AND IS MEASURED BETWEEN 0.25
AND 0.30 MM FROM PAD TIP.
0.50 TYP
0.05
1.00
2.80 SQ
TOP VIEW
SIDE VIEW
BOTTOM VIEW
4x4 mm Package Outline
05/2003
