RFP40N10 Datasheet

  • RFP40N10

  • 40A, 100V, 0.040 Ohm, N-Channel Power MOSFETs

  • 6頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

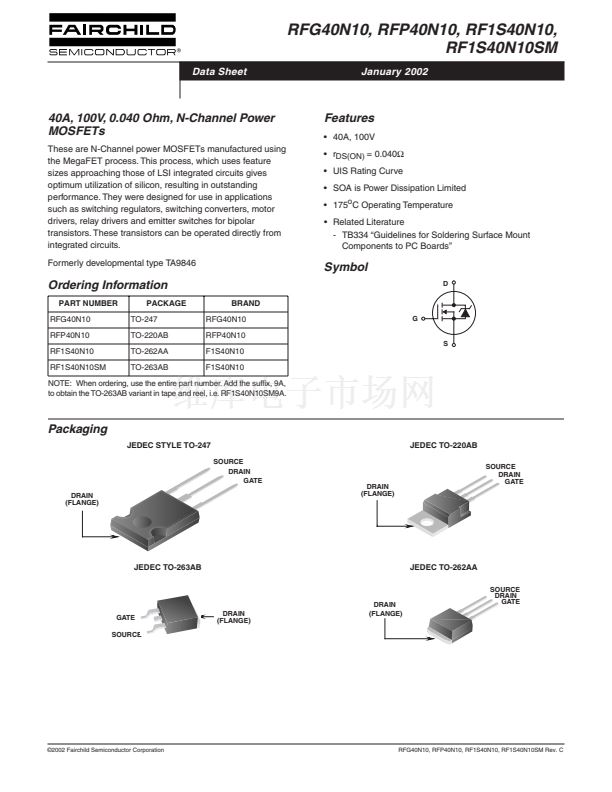

RFG40N10, RFP40N10, RF1S40N10,
RF1S40N10SM
Data Sheet
January 2002
40A, 100V, 0.040 Ohm, N-Channel Power
MOSFETs
These are N-Channel power MOSFETs manufactured using
the MegaFET process. This process, which uses feature
sizes approaching those of LSI integrated circuits gives
optimum utilization of silicon, resulting in outstanding
performance. They were designed for use in applications
such as switching regulators, switching converters, motor
drivers, relay drivers and emitter switches for bipolar
transistors. These transistors can be operated directly from
integrated circuits.
Formerly developmental type TA9846
Features
鈥?40A, 100V
鈥?r
DS(ON)
= 0.040
鈩?/div>
鈥?UIS Rating Curve
鈥?SOA is Power Dissipation Limited
鈥?175
o
C Operating Temperature
鈥?Related Literature
- TB334 鈥淕uidelines for Soldering Surface Mount
Components to PC Boards鈥?/div>
Symbol
D
Ordering Information
PART NUMBER
RFG40N10
RFP40N10
RF1S40N10
RF1S40N10SM
PACKAGE
TO-247
TO-220AB
TO-262AA
TO-263AB
BRAND
RFG40N10
RFP40N10
G
S
F1S40N10
F1S40N10
NOTE: When ordering, use the entire part number. Add the suf鏗亁, 9A,
to obtain the TO-263AB variant in tape and reel, i.e. RF1S40N10SM9A.
Packaging
JEDEC STYLE TO-247
SOURCE
DRAIN
GATE
DRAIN
(FLANGE)
JEDEC TO-220AB
SOURCE
DRAIN
GATE
DRAIN
(FLANGE)
JEDEC TO-263AB
JEDEC TO-262AA
SOURCE
DRAIN
GATE
GATE
SOURCE
DRAIN
(FLANGE)
DRAIN
(FLANGE)
漏2002 Fairchild Semiconductor Corporation
RFG40N10, RFP40N10, RF1S40N10, RF1S40N10SM Rev. C

RFP40N10 產品屬性

  • 400

  • 分離式半導體產品

  • FET - 單

  • -

  • MOSFET N 通道，金屬氧化物

  • 標準型

  • 100V

  • 40A

  • 40 毫歐 @ 40A，10V

  • 4V @ 250µA

  • 300nC @ 20V

  • -

  • 160W

  • 通孔

  • TO-220-3

  • TO-220AB

  • 管件
