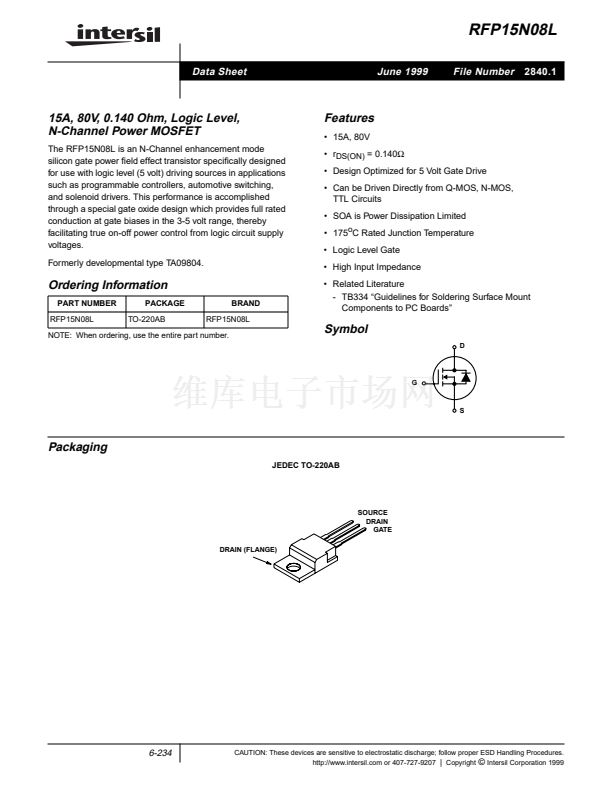

RFP15N08L

Data Sheet

June 1999

File Number

2840.1

15A, 80V, 0.140 Ohm, Logic Level,

N-Channel Power MOSFET

The RFP15N08L is an N-Channel enhancement mode

silicon gate power 鏗乪ld effect transistor speci鏗乧ally designed

for use with logic level (5 volt) driving sources in applications

such as programmable controllers, automotive switching,

and solenoid drivers. This performance is accomplished

through a special gate oxide design which provides full rated

conduction at gate biases in the 3-5 volt range, thereby

facilitating true on-off power control from logic circuit supply

voltages.

Formerly developmental type TA09804.

Features

鈥?15A, 80V

鈥?r

DS(ON)

= 0.140鈩?/div>

鈥?Design Optimized for 5 Volt Gate Drive

鈥?Can be Driven Directly from Q-MOS, N-MOS,

TTL Circuits

鈥?SOA is Power Dissipation Limited

鈥?175

C Rated Junction Temperature

鈥?Logic Level Gate

鈥?High Input Impedance

鈥?Related Literature

- TB334 鈥淕uidelines for Soldering Surface Mount

Components to PC Boards鈥?/div>

Ordering Information

PART NUMBER

RFP15N08L

PACKAGE

TO-220AB

BRAND

RFP15N08L

NOTE: When ordering, use the entire part number.

Symbol

Packaging

JEDEC TO-220AB

SOURCE

DRAIN

GATE

DRAIN (FLANGE)

6-234

CAUTION: These devices are sensitive to electrostatic discharge; follow proper ESD Handling Procedures.
