RFP15N05 Datasheet

IC型號：
RFP15N05
PDF描述：
15A, 50V and 60V, 0.140 Ohm, Logic Level N-Channel Power MOS...
文件大?。?/label>
354.70KB
PDF頁數：
6頁
芯片廠家：
FAIRCHILD

閱覽下載糾錯 0

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

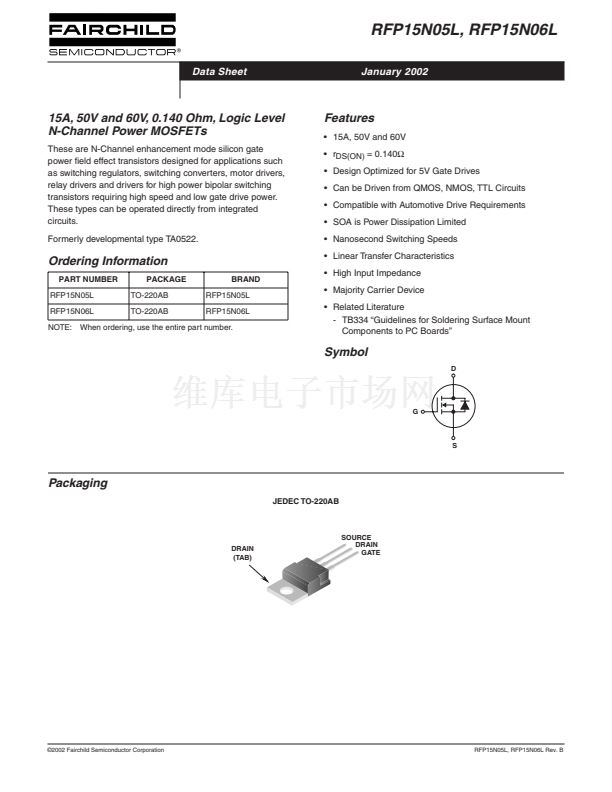

RFP15N05L, RFP15N06L

Data Sheet

January 2002

15A, 50V and 60V, 0.140 Ohm, Logic Level

N-Channel Power MOSFETs

These are N-Channel enhancement mode silicon gate

power 鏗乪ld effect transistors designed for applications such

as switching regulators, switching converters, motor drivers,

relay drivers and drivers for high power bipolar switching

transistors requiring high speed and low gate drive power.

These types can be operated directly from integrated

circuits.

Formerly developmental type TA0522.

Features

鈥?15A, 50V and 60V

鈥?r

DS(ON)

= 0.140

鈩?/div>

鈥?Design Optimized for 5V Gate Drives

鈥?Can be Driven from QMOS, NMOS, TTL Circuits

鈥?Compatible with Automotive Drive Requirements

鈥?SOA is Power Dissipation Limited

鈥?Nanosecond Switching Speeds

鈥?Linear Transfer Characteristics

Ordering Information

PART NUMBER

RFP15N05L

RFP15N06L

NOTE:

PACKAGE

TO-220AB

BRAND

RFP15N05L

RFP15N06L

鈥?High Input Impedance

鈥?Majority Carrier Device

鈥?Related Literature

- TB334 鈥淕uidelines for Soldering Surface Mount

Components to PC Boards鈥?/div>

When ordering, use the entire part number.

Symbol

Packaging

JEDEC TO-220AB

DRAIN

(TAB)

SOURCE

DRAIN

GATE

漏2002 Fairchild Semiconductor Corporation

RFP15N05L, RFP15N06L Rev. B
