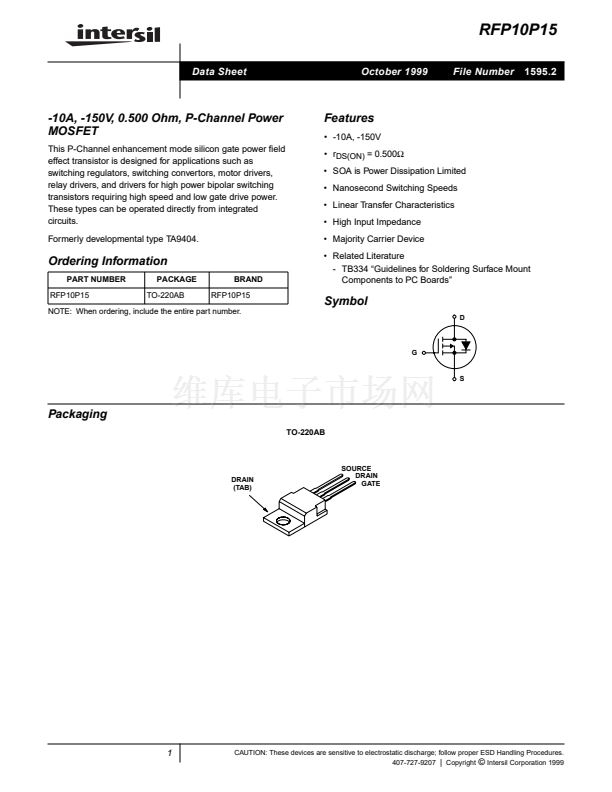

RFP10P15

Data Sheet

October 1999

File Number

1595.2

-10A, -150V, 0.500 Ohm, P-Channel Power

MOSFET

This P-Channel enhancement mode silicon gate power 鏗乪ld

effect transistor is designed for applications such as

switching regulators, switching convertors, motor drivers,

relay drivers, and drivers for high power bipolar switching

transistors requiring high speed and low gate drive power.

These types can be operated directly from integrated

circuits.

Formerly developmental type TA9404.

Features

鈥?-10A, -150V

鈥?r

DS(ON)

= 0.500鈩?/div>

鈥?SOA is Power Dissipation Limited

鈥?Nanosecond Switching Speeds

鈥?Linear Transfer Characteristics

鈥?High Input Impedance

鈥?Majority Carrier Device

鈥?Related Literature

- TB334 鈥淕uidelines for Soldering Surface Mount

Components to PC Boards鈥?/div>

Ordering Information

PART NUMBER

RFP10P15

PACKAGE

TO-220AB

BRAND

RFP10P15

Symbol

NOTE: When ordering, include the entire part number.

Packaging

TO-220AB

DRAIN

(TAB)

SOURCE

DRAIN

GATE

CAUTION: These devices are sensitive to electrostatic discharge; follow proper ESD Handling Procedures.

407-727-9207

漏

Intersil Corporation 1999
