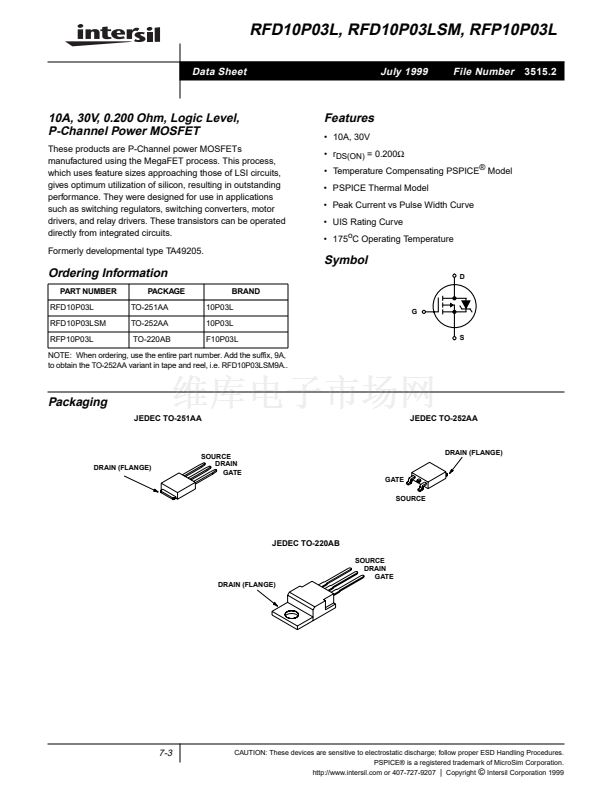

RFD10P03L, RFD10P03LSM, RFP10P03L

Data Sheet

July 1999

File Number

3515.2

10A, 30V, 0.200 Ohm, Logic Level,

P-Channel Power MOSFET

These products are P-Channel power MOSFETs

manufactured using the MegaFET process. This process,

which uses feature sizes approaching those of LSI circuits,

gives optimum utilization of silicon, resulting in outstanding

performance. They were designed for use in applications

such as switching regulators, switching converters, motor

drivers, and relay drivers. These transistors can be operated

directly from integrated circuits.

Formerly developmental type TA49205.

Features

鈥?10A, 30V

鈥?r

DS(ON)

= 0.200鈩?/div>

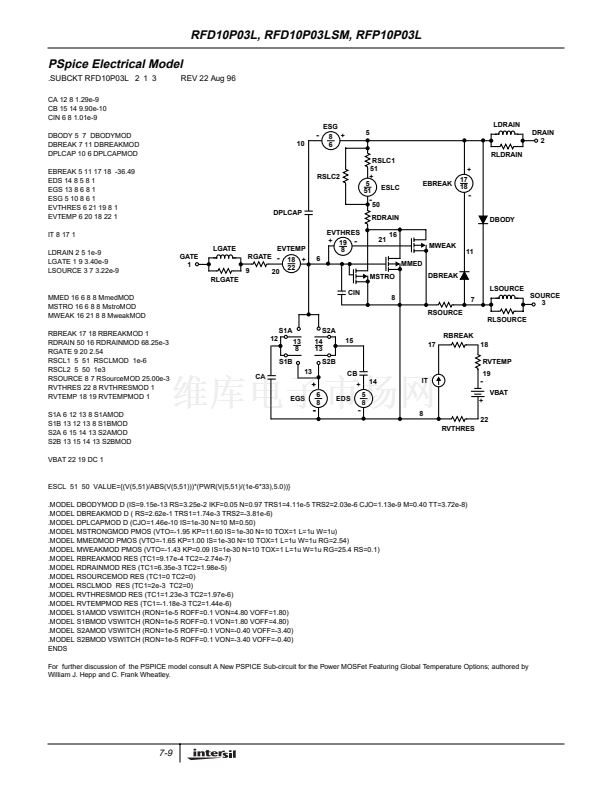

鈥?Temperature Compensating PSPICE

廬

Model

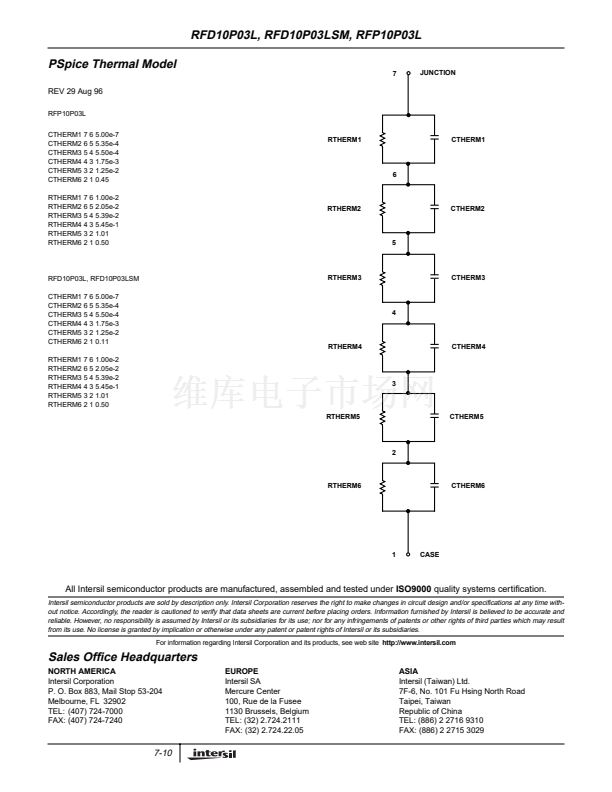

鈥?PSPICE Thermal Model

鈥?Peak Current vs Pulse Width Curve

鈥?UIS Rating Curve

鈥?175

C Operating Temperature

Symbol

Ordering Information

PART NUMBER

RFD10P03L

RFD10P03LSM

RFP10P03L

PACKAGE

TO-251AA

TO-252AA

TO-220AB

BRAND

10P03L

F10P03L

NOTE: When ordering, use the entire part number. Add the suffix, 9A,

to obtain the

TO-252AA

variant in tape and reel, i.e.

RFD10P03LSM9A..

Packaging

JEDEC TO-251AA

JEDEC TO-252AA

DRAIN (FLANGE)

SOURCE

DRAIN

GATE

SOURCE

DRAIN (FLANGE)

JEDEC TO-220AB

SOURCE

DRAIN

GATE

DRAIN (FLANGE)

7-3

CAUTION: These devices are sensitive to electrostatic discharge; follow proper ESD Handling Procedures.

PSPICE廬 is a registered trademark of MicroSim Corporation.

http://www.intersil.com or 407-727-9207

漏

Intersil Corporation 1999

制造商
Fairchild Semiconductor
晶體管極性
P-Channel
汲極/源極擊穿電壓
- 30 V
閘/源擊穿電壓
+/- 10 V
漏極連續電流
10 A
電阻汲極/源極 RDS（導通）
0.2 Ohms
配置
Single
最大工作溫度
+ 175 C
安裝風格
Through Hole
封裝 / 箱體
TO-220AB
下降時間
20 ns
最小工作溫度
- 55 C
功率耗散
65 W
上升時間
50 ns
典型關閉延遲時間
35 ns
