RFL4N12 Datasheet

IC型號：
RFL4N12
PDF描述：
4A, 120V and 150V, 0.400 Ohm, N-Channel Power MOSFETs
文件大?。?/label>
35.72KB
PDF頁數：
4頁
芯片廠家：
INTERSIL

閱覽下載糾錯 0

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

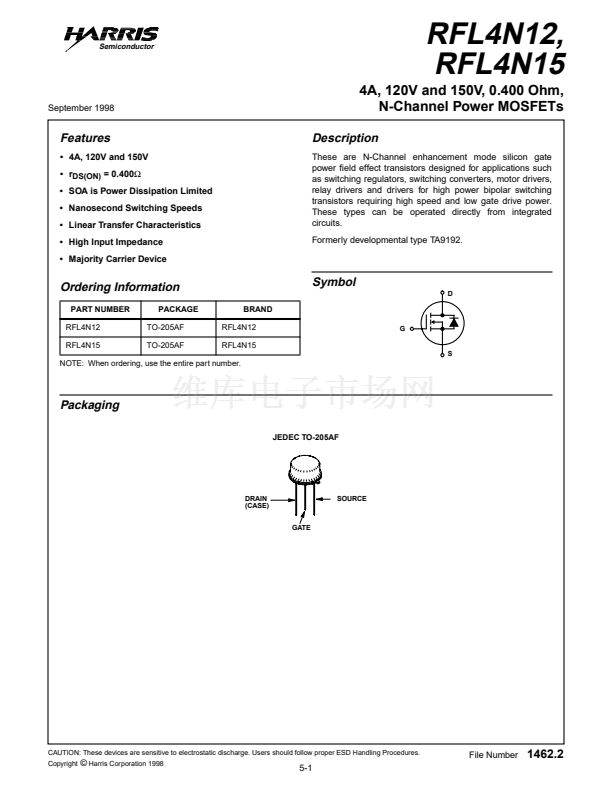

Semiconductor

RFL4N12,

RFL4N15

4A, 120V and 150V, 0.400 Ohm,

N-Channel Power MOSFETs

Description

These are N-Channel enhancement mode silicon gate

power 鏗乪ld effect transistors designed for applications such

as switching regulators, switching converters, motor drivers,

relay drivers and drivers for high power bipolar switching

transistors requiring high speed and low gate drive power.

These types can be operated directly from integrated

circuits.

Formerly developmental type TA9192.

September 1998

Features

鈥?4A, 120V and 150V

鈥?r

DS(ON)

= 0.400鈩?/div>

鈥?SOA is Power Dissipation Limited

鈥?Nanosecond Switching Speeds

鈥?Linear Transfer Characteristics

鈥?High Input Impedance

鈥?Majority Carrier Device
