RFK70N06

Data Sheet

September 1998

File Number

4331.1

70A, 60V, 0.014 Ohm, N-Channel Power

MOSFET

The RFK70N06 N-Channel power MOSFET is manufactured

using the MegaFET process. This process, which uses

feature sizes approaching those of LSI integrated circuits

gives optimum utilization of silicon, resulting in outstanding

performance. They are designed for use in applications such

as switching regulators, switching converters, motor drivers,

relay drivers and emitter switches for bipolar transistors.

These transistors can be operated directly from integrated

circuits.

Formerly developmental type TA49007.

Features

鈥?70A, 60V

鈥?r

DS(ON)

= 0.014鈩?/div>

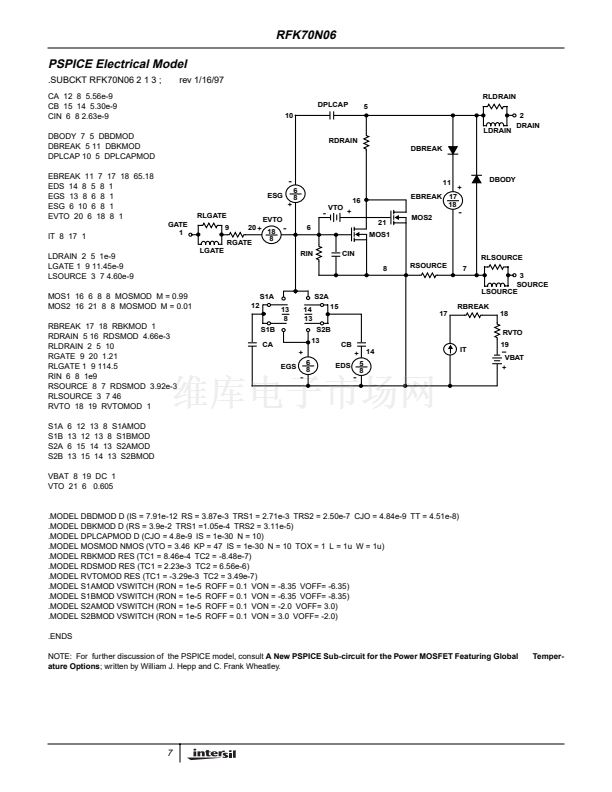

鈥?Temperature Compensating PSPICE Model

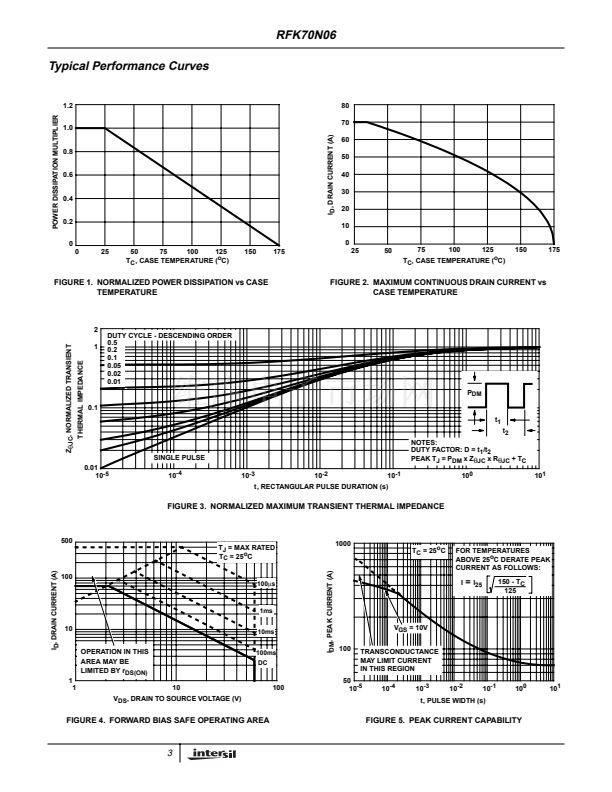

鈥?Peak Current vs Pulse Width Curve

鈥?UIS Rating Curve

鈥?175

C Operating Temperature

Symbol

Ordering Information

PART NUMBER

RFK70N06

PACKAGE

TO-204AE

BRAND

RFK70N06

NOTE: When ordering, use the entire part number.

Packaging

TO-204AE

DRAIN

(FLANGE)

SOURCE (PIN 2)

GATE (PIN 1)

CAUTION: These devices are sensitive to electrostatic discharge; follow proper ESD Handling Procedures.

http://www.intersil.com or 407-727-9207

漏

Intersil Corporation 1999
