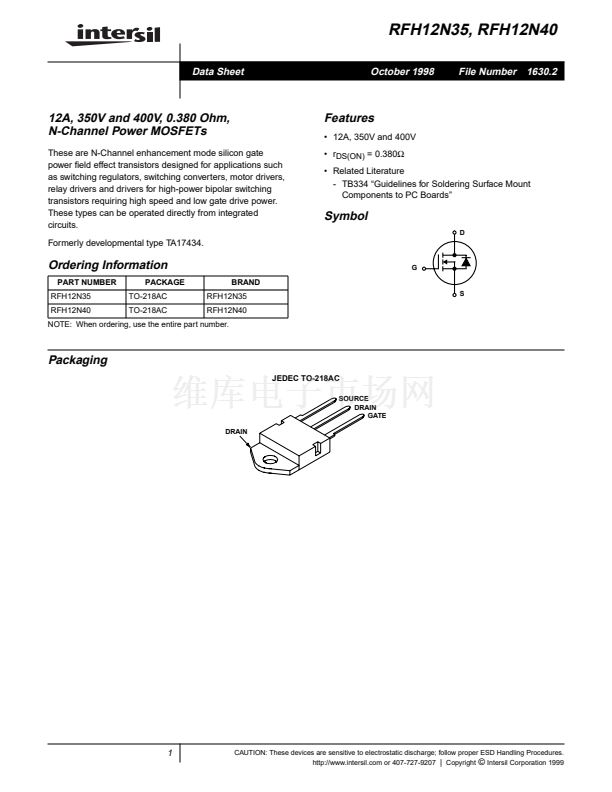

RFH12N35, RFH12N40

Data Sheet

October 1998

File Number 1630.2

12A, 350V and 400V, 0.380 Ohm,

N-Channel Power MOSFETs

These are N-Channel enhancement mode silicon gate

power 鏗乪ld effect transistors designed for applications such

as switching regulators, switching converters, motor drivers,

relay drivers and drivers for high-power bipolar switching

transistors requiring high speed and low gate drive power.

These types can be operated directly from integrated

circuits.

Formerly developmental type TA17434.

Features

鈥?12A, 350V and 400V

鈥?r

DS(ON)

= 0.380鈩?/div>

鈥?Related Literature

- TB334 鈥淕uidelines for Soldering Surface Mount

Components to PC Boards鈥?/div>

Symbol

Ordering Information

PART NUMBER

RFH12N35

RFH12N40

PACKAGE

TO-218AC

BRAND

RFH12N35

RFH12N40

NOTE: When ordering, use the entire part number.

Packaging

JEDEC TO-218AC

SOURCE

DRAIN

GATE

DRAIN

CAUTION: These devices are sensitive to electrostatic discharge; follow proper ESD Handling Procedures.

http://www.intersil.com or 407-727-9207

漏

Intersil Corporation 1999
