RFF60P06 Datasheet

  • RFF60P06

  • 25A⒂, 60V, 0.030 Ohm, P-Channel Power MOSFET

  • 8頁

  • INTERSIL   INTERSIL

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

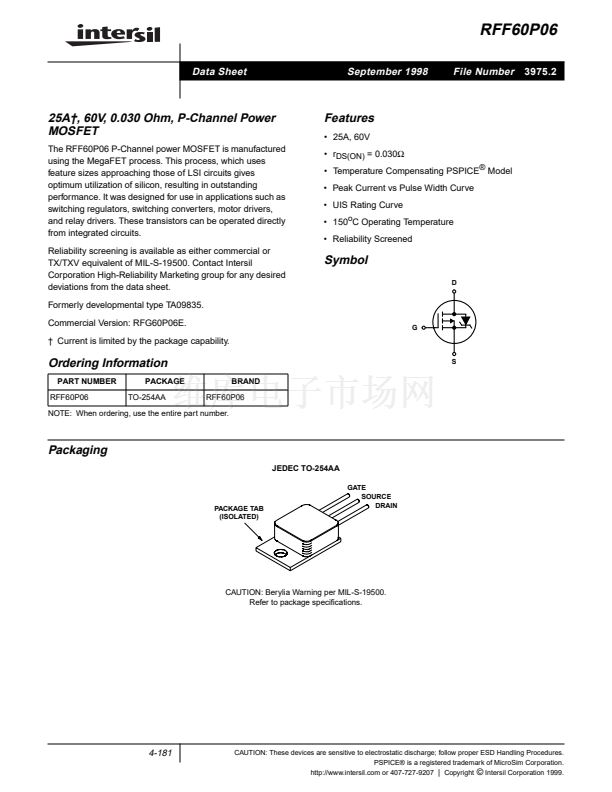

RFF60P06
Data Sheet
September 1998
File Number
3975.2
25A鈥? 60V, 0.030 Ohm, P-Channel Power
MOSFET
The RFF60P06 P-Channel power MOSFET is manufactured
using the MegaFET process. This process, which uses
feature sizes approaching those of LSI circuits gives
optimum utilization of silicon, resulting in outstanding
performance. It was designed for use in applications such as
switching regulators, switching converters, motor drivers,
and relay drivers. These transistors can be operated directly
from integrated circuits.
Reliability screening is available as either commercial or
TX/TXV equivalent of MIL-S-19500. Contact Intersil
Corporation High-Reliability Marketing group for any desired
deviations from the data sheet.
Formerly developmental type TA09835.
Commercial Version: RFG60P06E.
鈥?Current is limited by the package capability.
Features
鈥?25A, 60V
鈥?r
DS(ON)
= 0.030鈩?/div>

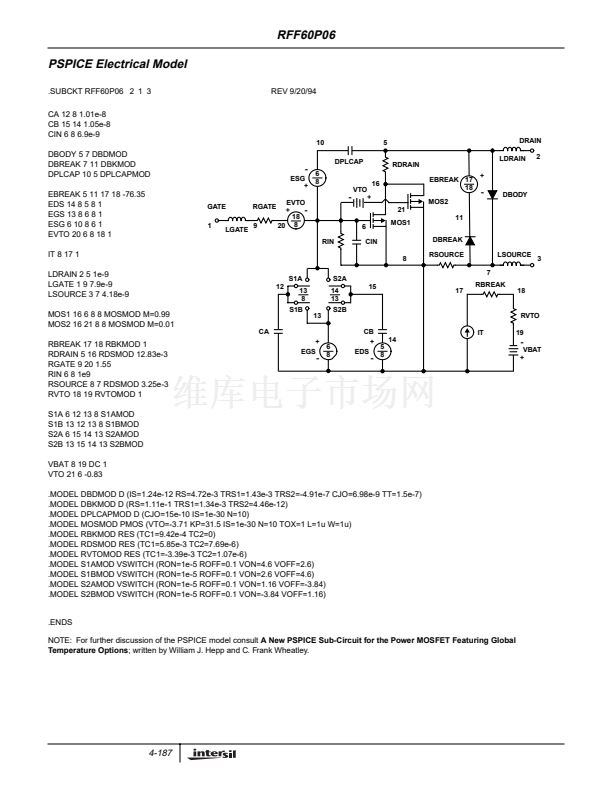

鈥?Temperature Compensating PSPICE
廬
Model

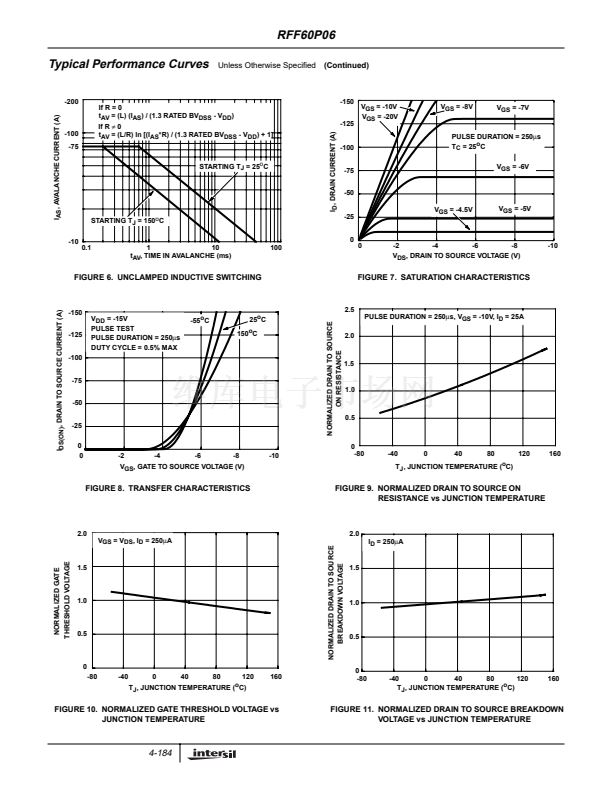

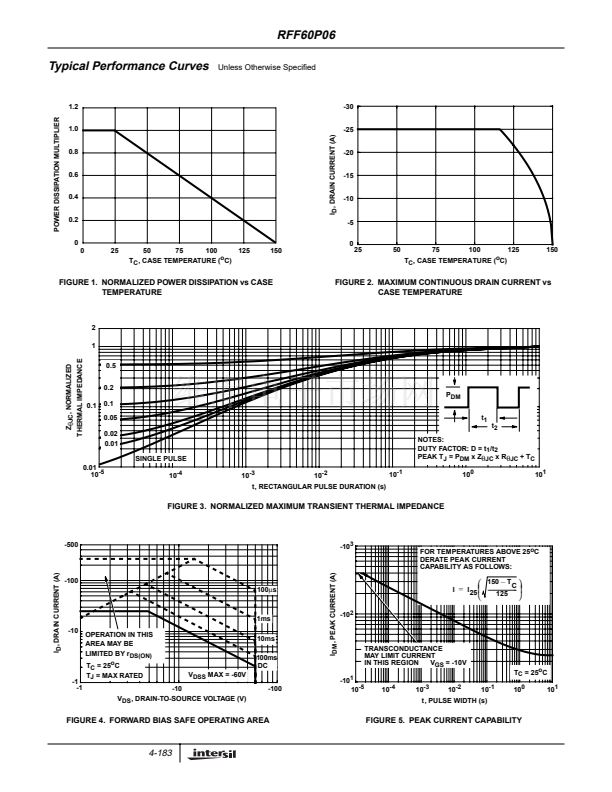

鈥?Peak Current vs Pulse Width Curve
鈥?UIS Rating Curve
鈥?150
o
C Operating Temperature

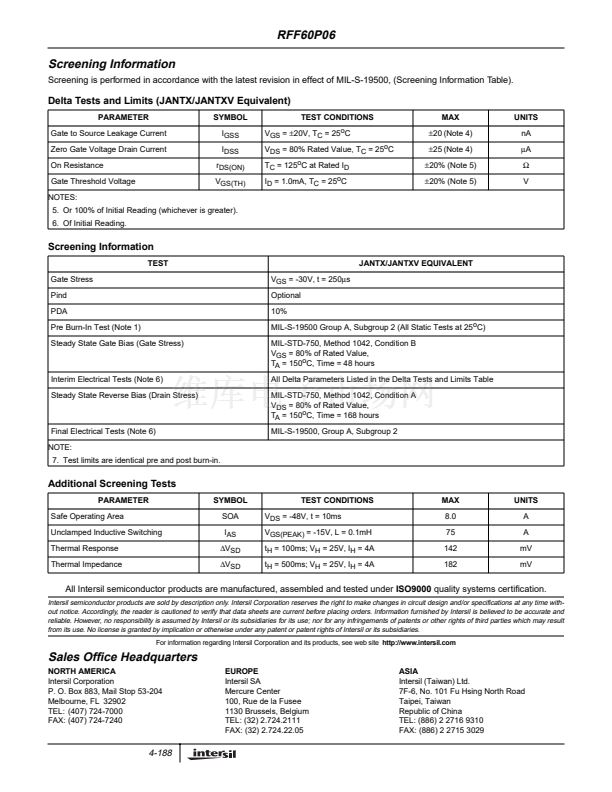

鈥?Reliability Screened
Symbol
D
G
Ordering Information
PART NUMBER
RFF60P06
PACKAGE
TO-254AA
BRAND
RFF60P06
S
NOTE: When ordering, use the entire part number.
Packaging
JEDEC TO-254AA
GATE
SOURCE
DRAIN
PACKAGE TAB
(ISOLATED)
CAUTION: Berylia Warning per MIL-S-19500.
Refer to package speci鏗乧ations.
4-181
CAUTION: These devices are sensitive to electrostatic discharge; follow proper ESD Handling Procedures.
PSPICE廬 is a registered trademark of MicroSim Corporation.
http://www.intersil.com or 407-727-9207
|
Copyright
漏
Intersil Corporation 1999.
