RF8000
14
Typical Applications
鈥?Automotive Navigation
鈥?Asset Tracking
鈥?Fleet Management
鈥?Telematics
鈥?Marine Navigation
GLOBAL POSITIONING SYSTEM RECEIVER
Product Description
The RFMD Global Positioning System (GPS) Receiver is
a plug-n-play module designed for OEM use. The 12-par-
allel-channel GPS receiver works in a wide variety of end
products including: marine navigation, telematics, auto-
motive navigation, and asset tracking. The GPS receiver
processes signals from all the visible GPS satellites
broadcasting RF navigation information. 鈥淎ll-in-view鈥?sat-
ellite tracking produces highly accurate, smoothed navi-
gation data. The data is relatively immune to the position
jumps that occur when fewer satellites are monitored.
Designed to withstand harsh industrial environments, the
GPS receiver performs robustly in situations where
extreme vehicle movement or high signal blockage are
concerns (such as dense urban areas).
Optimum Technology Matching廬 Applied
Si BJT
Si Bi-CMOS
GaInP/HBT

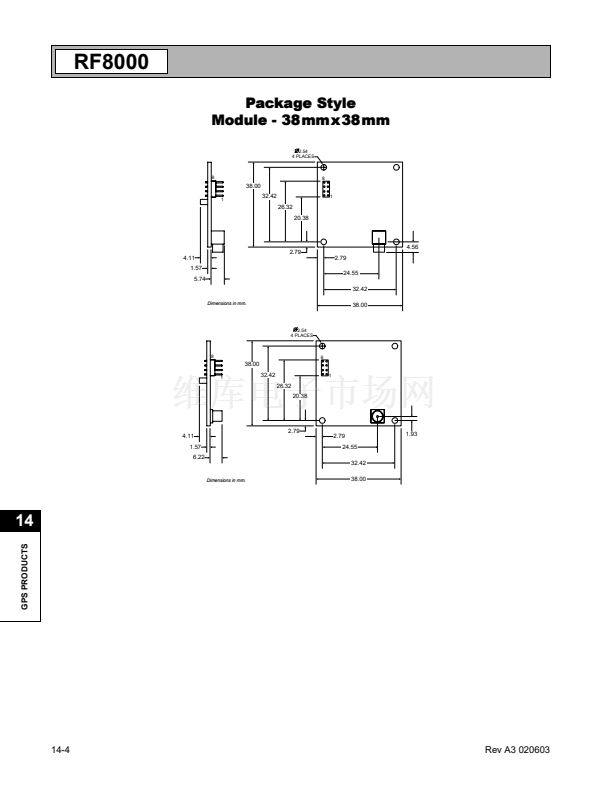

Package Style: 38mmx38mm
!
SiGe HBT
!
Si CMOS
GaN HEMT
GaAs HBT
GaAs MESFET
Features
鈥?Fast satellite time-to-first-fix (TTFF) with
a Rapid Acquisition Module
鈥?Small footprint: 38mmx38mm
鈥?Supports 3D and 2D navigation modes
SiGe Bi-CMOS
14
GPS PRODUCTS
GPS Antenna
(30 dB Gain, 20 MHz BW)
L1 BP Filter
LNA
RTC Crystal
(32 kHz)
RTC
FLASH
鈥?Automatic cold start acquisition process

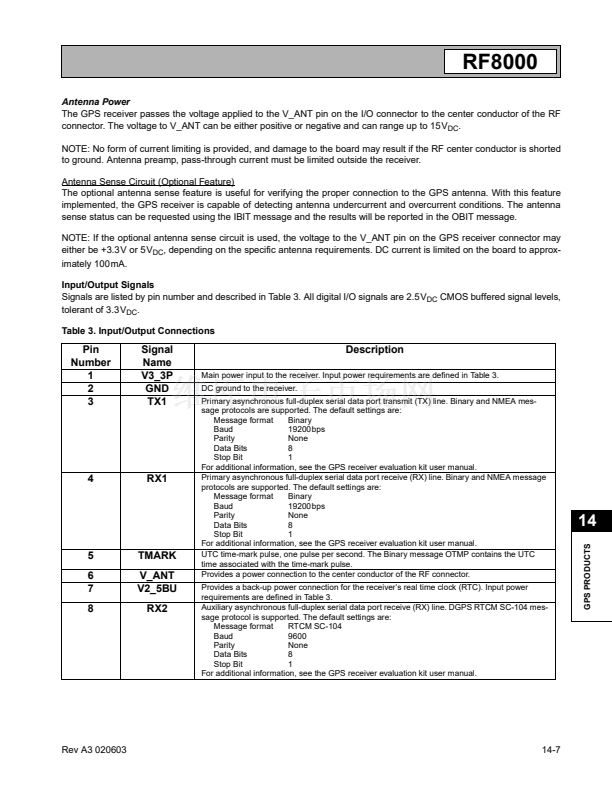

I/O
Connector
1. +3.3 V
2. GND
3. TX1
4. RX1
5. T-Mark
6. V_Antenna
7. +2.5 V Battery
8. RX2
Temp.
Sensor
Filter
Digital
ASIC
Supervisor
Gain
ADC
Osc.
GPS Crystal
(43 kHz)
+2.5 V
Reg.
Ordering Information
RF8000
RF8001
DK8000
Global Positioning System Receiver
GPS Receiver with Right Angle Connector
Global Positioning System Receiver Evaluation Kit
Tel (336) 664 1233
Fax (336) 664 0454
http://www.rfmd.com
Low Noise Amplifier
RF ASIC
Digital ASIC
Functional Block Diagram
RF Micro Devices, Inc.
7628 Thorndike Road
Greensboro, NC 27409, USA
Rev A3 020603
14-1
