RF3146DPCBA-41X Datasheet

  • RF3146DPCBA-41X

  • DUAL-BAND GSM900/DCS POWER AMP MODULE

  • 16頁

  • RFMD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

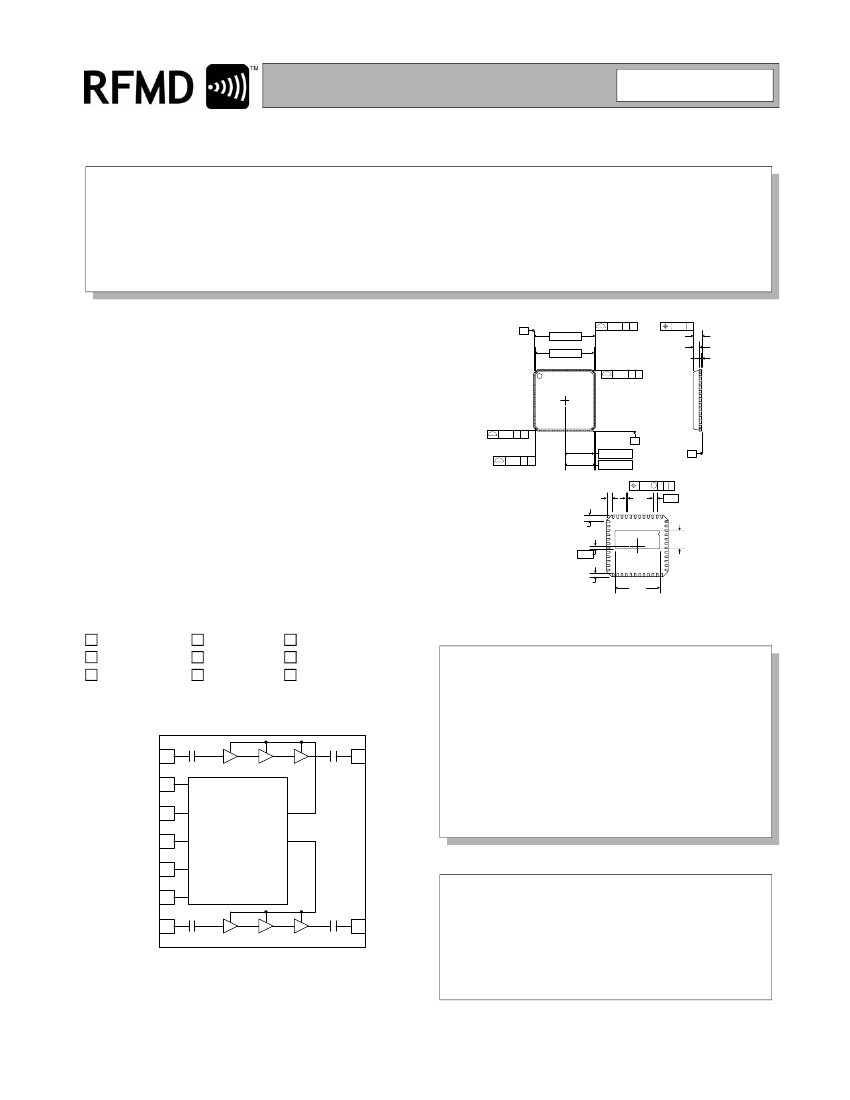

RF3146D
0
Typical Applications
鈥?3V Dual-Band GSM Handsets
鈥?Commercial and Consumer Systems
鈥?Portable Battery-Powered Equipment
Product Description
The RF3146 is a high-power, high-efficiency power ampli-
fier module with integrated power control. The device is a
self-contained 7mmx7mmx0.9mm lead frame module
(LFM) with 50惟 input and output terminals. The power
control function is also incorporated, eliminating the need
for directional couplers, detector diodes, power control
ASICs and other power control circuitry; this allows the
module to be driven directly from the DAC output. The
device is designed for use as the final RF amplifier in
EGSM900 and DCS handheld digital cellular equipment
and other applications in the 880MHz to 915MHz and
1710MHz to 1785MHz bands. On-board power control
provides over 50dB of control range with an analog volt-
age input; and, power down with a logic 鈥渓ow鈥?for standby
operation.
Optimum Technology Matching廬 Applied
Si BJT
Si Bi-CMOS
InGaP/HBT
3146
DUAL-BAND GSM900/DCS
POWER AMP MODULE
鈥?EGSM900/DCS Products
鈥?GPRS Class 12 Compatible
鈥?Power Star
TM
Module
-A-
7.00 TYP
6.75 TYP
0.10 C A
2 PLCS
0.08 C
0.70
0.65
0.10 C B
2 PLCS
0.90
0.85
0.05
0.00
2 PLCS
0.10 C B
-B-
2 PLCS
0.10 C A
3.37 TYP
3.50 TYP
Dimensions in mm.
-C-
SEATING
PLANE
0.10M C A B
0.60
TYP
0.24
0.60
TYP
0.24
Shaded lead is pin 1.
0.30
0.18
0.50
2.20
1.90
0.30
0.50
TYP
0.30
5.25
4.95
Package Style: LFM, 48-Pin, 7mm x7mmx0.9mm
GaAs HBT
SiGe HBT
GaN HEMT
GaAs MESFET
Si CMOS
SiGe Bi-CMOS
Features
鈥?Integrated V
REG
鈥?Complete Power Control Solution
鈥?+35dBm GSM Output Power at 3.5V
DCS IN 37
BAND SELECT 40
TX ENABLE 41
VBATT 42
VBATT 43
VRAMP 45
GSM IN 48
Fully Integrated
Power Control Circuit
31 DCS OUT
鈥?+33dBm DCS Output Power at 3.5V
鈥?60% GSM and 55% DCS
EFF
鈥?7mmx7mmx0.9mm Package Size
Ordering Information
6 GSM OUT
RF3146D
RF3146D SB
RF3146DPCBA-41X
Dual-Band GSM900/DCS Power Amp Module
Power Amp Module 5-Piece Sample Pack
Fully Assembled Evaluation Board
Tel (336) 664 1233
Fax (336) 664 0454
http://www.rfmd.com
Functional Block Diagram
RF Micro Devices, Inc.
7628 Thorndike Road
Greensboro, NC 27409, USA
Rev A11 060719
2-491
