RF3145_1 Datasheet

  • RF3145_1

  • QUAD-BAND GSM/EDGE/GSM850/DCS/PCS POWER AMPLIFIER MODULE

  • 18頁

  • RFMD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

RF3145Quad-
Band
GSM/EDGE/G
SM850/DCS/
PCS Power
Amplifier Mod-
ule
RF3145
QUAD-BAND GSM/EDGE/GSM850/DCS/PCS
POWER AMPLIFIER MODULE
RoHS Compliant & Pb-Free Product
Package Style: Module (10 mm x 10 mm)
Features
Integrated Power Control & Band
Select
Single 3.0V to 4.8V Supply Volt-
age
+35.0dBm GSM Output Pwr at
3.5V
+33dBm DCS/PCS Output Pwr at
3.5V
+29dBm 8PSK Output Pwr
53% GSM and 50% DCS/PCS
PAE
NC
12
DCS IN 1
BAND SELECT 2
TX ENABLE 3
VBATT 4
VMODE 5
VRAMP 6
GSM IN
7
8
NC
9 GSM OUT
10 NC
11
DCS
OUT
Applications
3V Dual/Triple/Quad-Band Mode
Handsets
Portable Battery-Powered Equip-
ment
GSM850 and GSM900 Products
Commercial and Consumer Sys-
tems
EDGE and GPRS Class 12 Com-
patible
DCS/PCS Products
Functional Block Diagram
Product Description
The RF3145 is a high power, high efficiency power amplifier module with integrated
power control. This module is self-contained with 50惟 input and output terminals.
The device is manufactured on an advance Gallium Arsenide Heterojunction Bipo-
lar Transistor (HBT) process, and has been designed for use as the final dual-mode
GMSK/8PSK RF amplifier in GSM, DCS and PCS hand-held cellular equipment and
other applications in the 824MHz to 849MHz, 880MHz to 915MHz, and in the
1710MHz to 1910MHz bands. Internal band select provides control to select the
GSM850/GSM900 or DCS/PCS band. The device is packaged on ultra-small LCC,
minimizing the required board space.
Ordering Information
RF3145
Quad-Band GSM/EDGE/GSM850/DCS/PCS Power Amplifier
Module
Power Amplifier Module, 5 Piece Sample Pack
Fully Assembled Evaluation Board
RF3145PCBA-41X
Optimum Technology Matching廬 Applied
GaAs HBT
GaAs MESFET
InGaP HBT
SiGe BiCMOS
Si BiCMOS
SiGe HBT
GaAs pHEMT
Si CMOS
Si BJT
GaN HEMT
RF MICRO DEVICES廬, RFMD廬, Optimum Technology Matching廬, Enabling Wireless Connectivity鈩? PowerStar廬, POLARIS鈩?TOTAL RADIO鈩?and UltimateBlue鈩?are trademarks of RFMD, LLC. BLUETOOTH is a trade-
mark owned by Bluetooth SIG, Inc., U.S.A. and licensed for use by RFMD. All other trade names, trademarks and registered trademarks are the property of their respective owners. 漏2006, RF Micro Devices, Inc.
Rev A4 DS050919
7628 Thorndike Road, Greensboro, NC 27409-9421 路 For sales or technical
support, contact RFMD at (+1) 336-678-5570 or sales-support@rfmd.com.

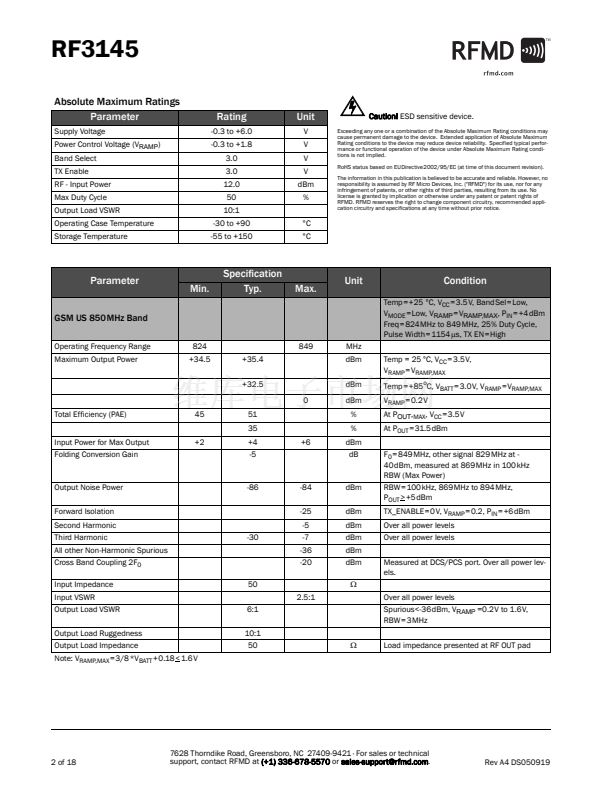

1 of 18
