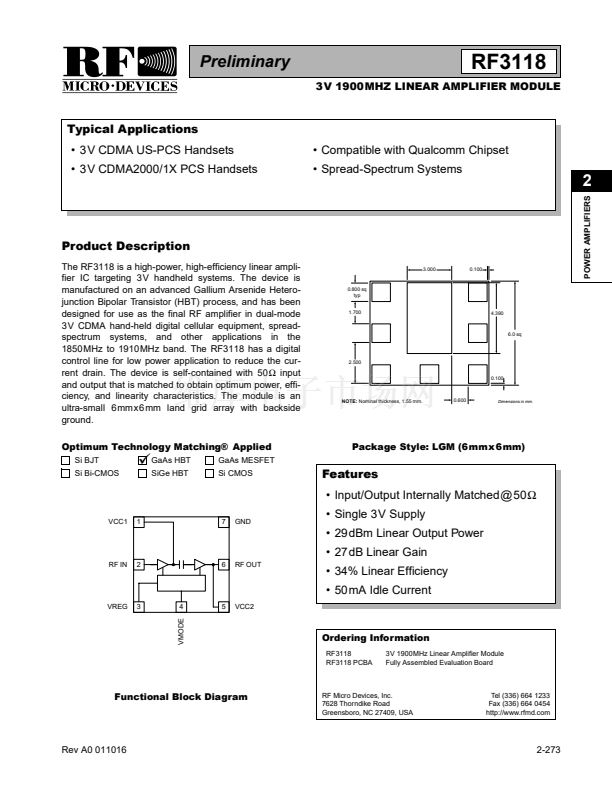

Preliminary
RF3118
3V 1900MHZ LINEAR AMPLIFIER MODULE
2
Typical Applications
鈥?3V CDMA US-PCS Handsets
鈥?3V CDMA2000/1X PCS Handsets
鈥?Compatible with Qualcomm Chipset
鈥?Spread-Spectrum Systems
2
POWER AMPLIFIERS
4.390
6.0 sq
0.100
Dimensions in mm.
Product Description
The RF3118 is a high-power, high-efficiency linear ampli-
fier IC targeting 3V handheld systems. The device is
manufactured on an advanced Gallium Arsenide Hetero-
junction Bipolar Transistor (HBT) process, and has been
designed for use as the final RF amplifier in dual-mode
3V CDMA hand-held digital cellular equipment, spread-
spectrum systems, and other applications in the
1850MHz to 1910MHz band. The RF3118 has a digital
control line for low power application to reduce the cur-
rent drain. The device is self-contained with 50鈩?input
and output that is matched to obtain optimum power, effi-
ciency, and linearity characteristics. The module is an
ultra-small 6mmx6mm land grid array with backside
ground.
Optimum Technology Matching廬 Applied
Si BJT
Si Bi-CMOS
3.000
0.100
0.800 sq
typ
1.700
2.500
NOTE:
Nominal thickness, 1.55 mm.
0.600
眉
GaAs HBT
SiGe HBT
Package Style: LGM (6mmx6mm)
GaAs MESFET
Si CMOS
Features
鈥?Input/Output Internally Matched@50
鈩?/div>
鈥?Single 3V Supply
鈥?29dBm Linear Output Power
鈥?27dB Linear Gain
VCC1
1
7
GND
RF IN
2
6
RF OUT
鈥?34% Linear Efficiency
鈥?50mA Idle Current
VREG
3
4
VMODE
5
VCC2
Ordering Information
RF3118
RF3118 PCBA
3V 1900MHz Linear Amplifier Module
Fully Assembled Evaluation Board
Functional Block Diagram
RF Micro Devices, Inc.
7628 Thorndike Road
Greensboro, NC 27409, USA
Tel (336) 664 1233
Fax (336) 664 0454
http://www.rfmd.com
Rev A0 011016
2-273
1
2
3
4
5
6
