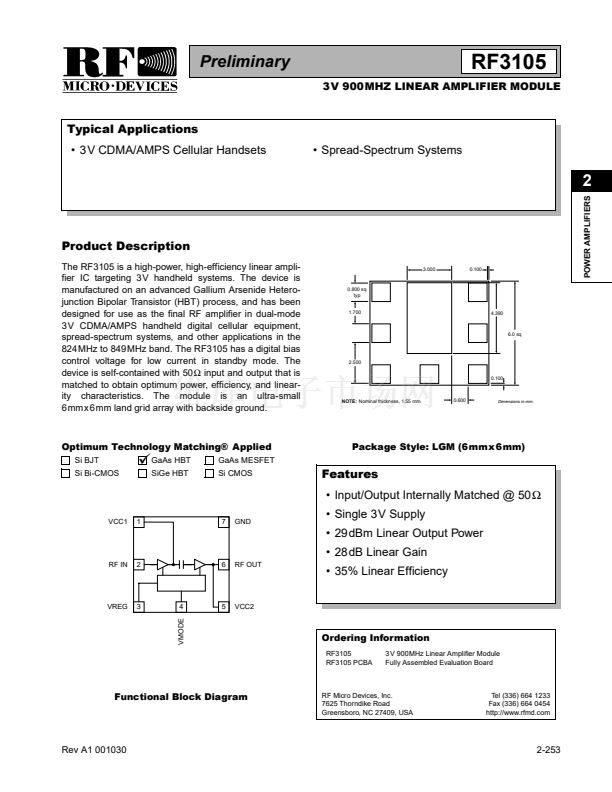

Preliminary

Typical Applications

鈥?3V CDMA/AMPS Cellular Handsets

鈥?Spread-Spectrum Systems

RF3105

3V 900MHZ LINEAR AMPLIFIER MODULE

POWER AMPLIFIERS

4.390

6.0 sq

0.100

Dimensions in mm.

Product Description

The RF3105 is a high-power, high-efficiency linear ampli-

fier IC targeting 3V handheld systems. The device is

manufactured on an advanced Gallium Arsenide Hetero-

junction Bipolar Transistor (HBT) process, and has been

designed for use as the final RF amplifier in dual-mode

3V CDMA/AMPS handheld digital cellular equipment,

spread-spectrum systems, and other applications in the

824MHz to 849MHz band. The RF3105 has a digital bias

control voltage for low current in standby mode. The

device is self-contained with 50鈩?input and output that is

matched to obtain optimum power, efficiency, and linear-

ity characteristics. The module is an ultra-small

6mmx6mm land grid array with backside ground.

3.000

0.100

0.800 sq

typ

1.700

2.500

NOTE:

Nominal thickness, 1.55 mm.

0.600

Optimum Technology Matching廬 Applied

Si BJT

Si Bi-CMOS

GaAs HBT

SiGe HBT

Package Style: LGM (6mmx6mm)

GaAs MESFET

Si CMOS

Features

鈥?Input/Output Internally Matched @ 50鈩?/div>

鈥?Single 3V Supply

鈥?29dBm Linear Output Power

鈥?28dB Linear Gain

VCC1

GND

RF IN

RF OUT

鈥?35% Linear Efficiency

VREG

VMODE

VCC2

Ordering Information

RF3105

RF3105 PCBA

3V 900MHz Linear Amplifier Module

Fully Assembled Evaluation Board

Functional Block Diagram

RF Micro Devices, Inc.

7625 Thorndike Road

Greensboro, NC 27409, USA

Tel (336) 664 1233

Fax (336) 664 0454

http://www.rfmd.com

Rev A1 001030

2-253
