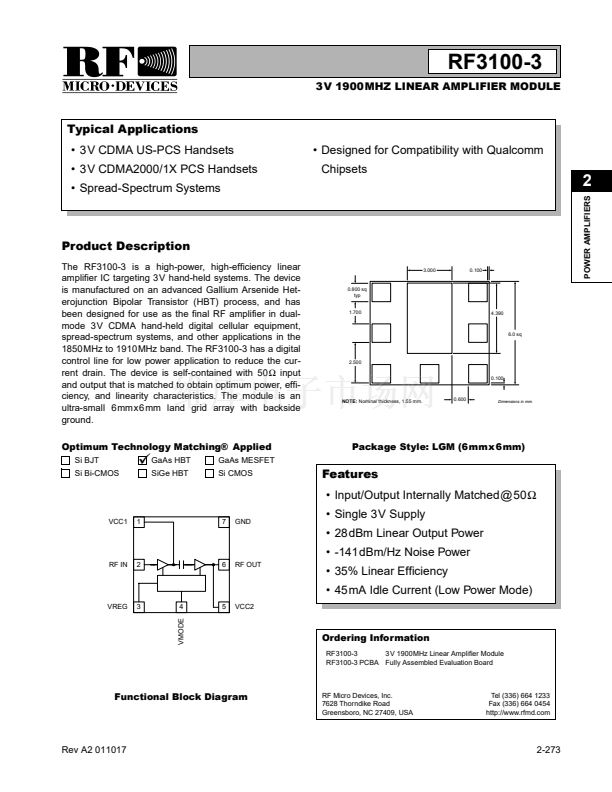

RF3100-3
2
Typical Applications
鈥?3V CDMA US-PCS Handsets
鈥?3V CDMA2000/1X PCS Handsets
鈥?Spread-Spectrum Systems
鈥?Designed for Compatibility with Qualcomm
Chipsets
3V 1900MHZ LINEAR AMPLIFIER MODULE
2
POWER AMPLIFIERS
4.390
6.0 sq
0.100
Dimensions in mm.
Product Description
The RF3100-3 is a high-power, high-efficiency linear
amplifier IC targeting 3V hand-held systems. The device
is manufactured on an advanced Gallium Arsenide Het-
erojunction Bipolar Transistor (HBT) process, and has
been designed for use as the final RF amplifier in dual-
mode 3V CDMA hand-held digital cellular equipment,
spread-spectrum systems, and other applications in the
1850MHz to 1910MHz band. The RF3100-3 has a digital
control line for low power application to reduce the cur-
rent drain. The device is self-contained with 50鈩?input
and output that is matched to obtain optimum power, effi-
ciency, and linearity characteristics. The module is an
ultra-small 6mmx6mm land grid array with backside
ground.
Optimum Technology Matching廬 Applied
Si BJT
Si Bi-CMOS
3.000
0.100
0.800 sq
typ
1.700
2.500
NOTE:
Nominal thickness, 1.55 mm.
0.600
眉
GaAs HBT
SiGe HBT
Package Style: LGM (6mmx6mm)
GaAs MESFET
Si CMOS

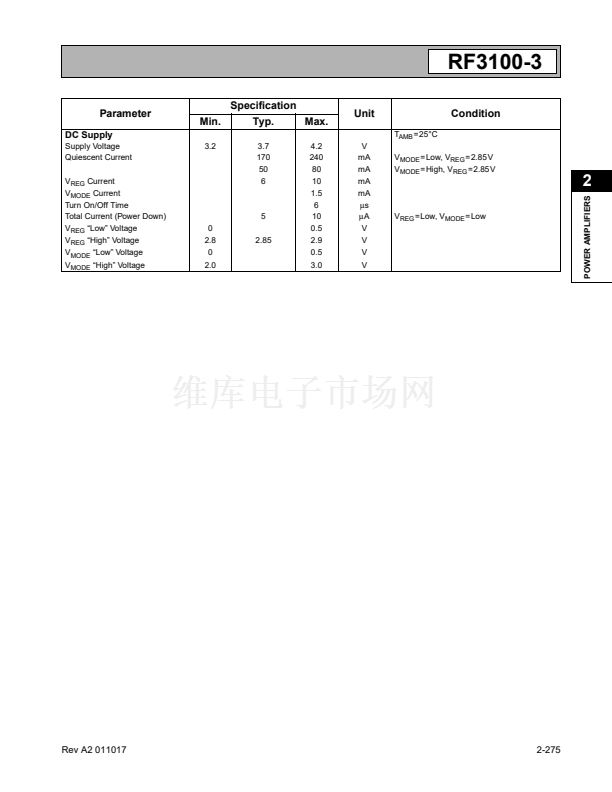

Features
鈥?Input/Output Internally Matched@50
鈩?/div>
鈥?Single 3V Supply
鈥?28dBm Linear Output Power
鈥?-141dBm/Hz Noise Power

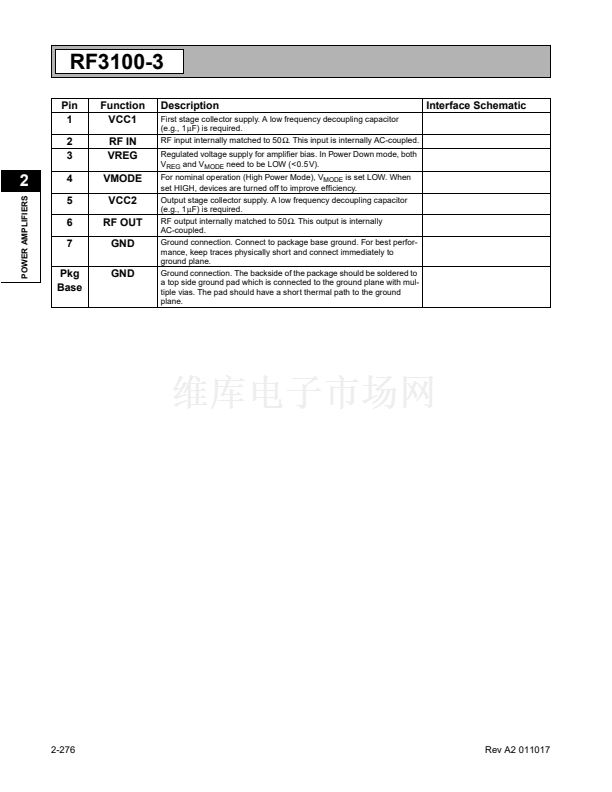

VCC1
1
7
GND
RF IN
2
6
RF OUT
鈥?35% Linear Efficiency
鈥?45mA Idle Current (Low Power Mode)
VREG
3
4
VMODE
5
VCC2
Ordering Information
RF3100-3
3V 1900MHz Linear Amplifier Module

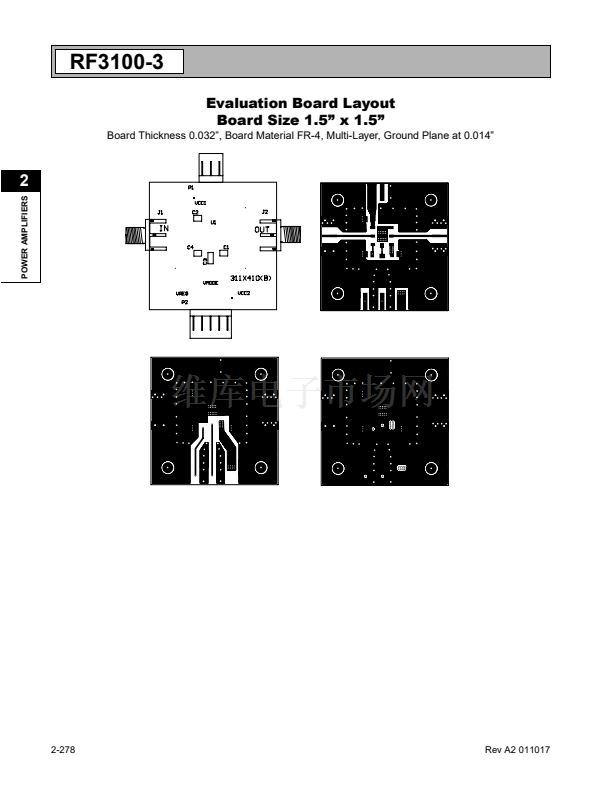

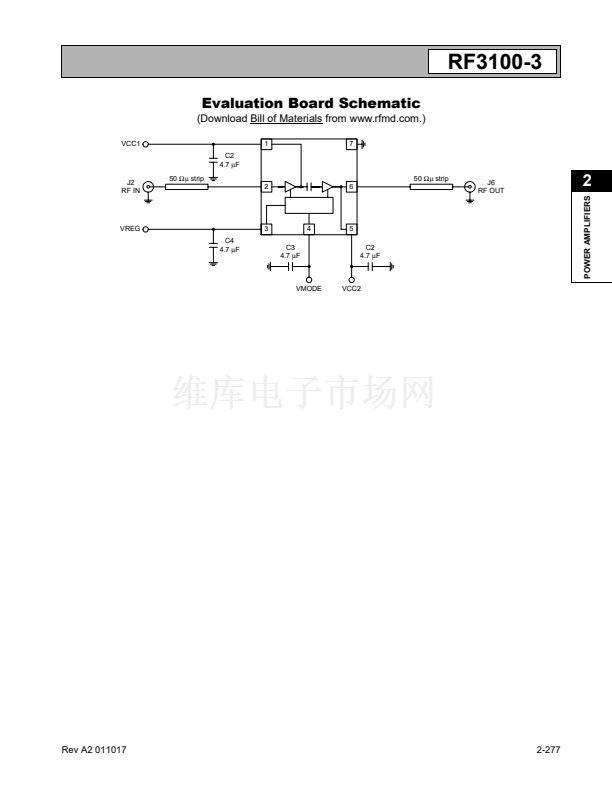

RF3100-3 PCBA Fully Assembled Evaluation Board
Functional Block Diagram
RF Micro Devices, Inc.
7628 Thorndike Road
Greensboro, NC 27409, USA
Tel (336) 664 1233
Fax (336) 664 0454
http://www.rfmd.com
Rev A2 011017
2-273
