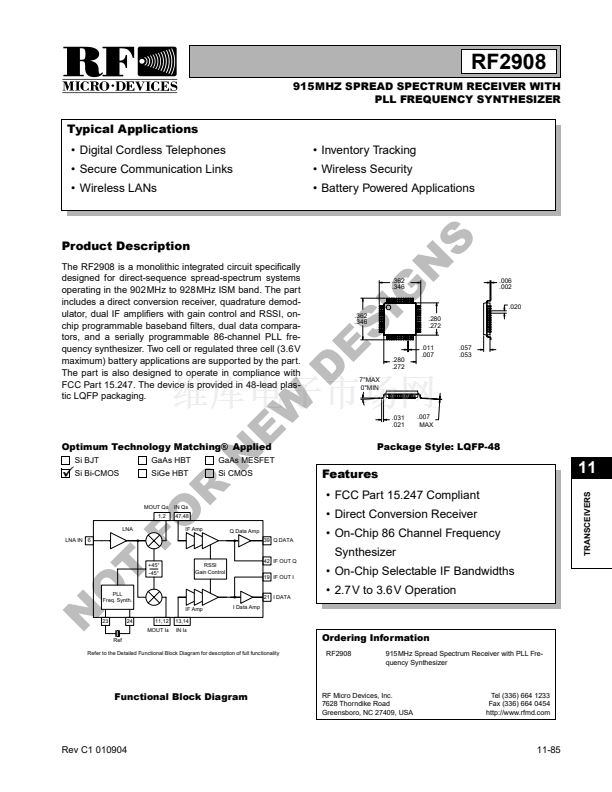

RF2908

11

Typical Applications

鈥?Digital Cordless Telephones

鈥?Secure Communication Links

鈥?Wireless LANs

鈥?Inventory Tracking

鈥?Wireless Security

鈥?Battery Powered Applications

915MHZ SPREAD SPECTRUM RECEIVER WITH

PLL FREQUENCY SYNTHESIZER

Product Description

The RF2908 is a monolithic integrated circuit specifically

designed for direct-sequence spread-spectrum systems

operating in the 902MHz to 928MHz ISM band. The part

includes a direct conversion receiver, quadrature demod-

ulator, dual IF amplifiers with gain control and RSSI, on-

chip programmable baseband filters, dual data compara-

tors, and a serially programmable 86-channel PLL fre-

quency synthesizer. Two cell or regulated three cell (3.6V

maximum) battery applications are supported by the part.

The part is also designed to operate in compliance with

FCC Part 15.247. The device is provided in 48-lead plas-

tic LQFP packaging.

.362

.346

.006

.002

.020

.362

.346

.280

.272

.011

.007

.057

.053

.280

.272

7擄MAX

0擄MIN

.031

.021

.007

MAX

Optimum Technology Matching廬 Applied

Package Style: LQFP-48

眉

Si Bi-CMOS

Si BJT

GaAs HBT

SiGe HBT

GaAs MESFET

Si CMOS

Features

鈥?FCC Part 15.247 Compliant

鈥?Direct Conversion Receiver

11

TRANSCEIVERS

MOUT Q鹵

1,2

LNA

LNA IN 6

IN Q鹵

47,48

IF Amp

Q Data Amp

39 Q DATA

鈥?On-Chip 86 Channel Frequency

Synthesizer

鈥?On-Chip Selectable IF Bandwidths

鈥?2.7V to 3.6V Operation

+45擄

-45擄

RSSI

Gain Control

42 IF OUT Q

19 IF OUT I

PLL

Freq. Synth.

IF Amp

23

24

11,12

MOUT I鹵

Ref

13,14

IN I鹵

I Data Amp

21 I DATA

Ordering Information

RF2908

915MHz Spread Spectrum Receiver with PLL Fre-

quency Synthesizer

Refer to the Detailed Functional Block Diagram for description of full functionality

Functional Block Diagram

RF Micro Devices, Inc.

7628 Thorndike Road

Greensboro, NC 27409, USA

Tel (336) 664 1233

Fax (336) 664 0454

http://www.rfmd.com

Rev C1 010904

11-85
