RF2860_1 Datasheet

  • RF2860_1

  • PCS CDMA LOW NOISE AMPLIFIER/MIXER BROADBAND DOWNCONVERTER

  • 20頁

  • RFMD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

RF2860PCS
CDMA Low
Noise Ampli-
fier/Mixer
Broadband
Downcon-
verter
RF2860
PCS CDMA LOW NOISE AMPLIFIER/MIXER
BROADBAND DOWNCONVERTER
RoHS Compliant & Pb-Free Product
Package Style: QFN, 16-Pin, 3x3
TX BUFF
ENAB
ENABLE
LO OUT
14
Features
LNA Noise Figure=1.3dB
(KPCS)
Stepped LNA Gain Control
Integrated TX LO Buffer Ampli-
fier
Adjustable IIP3 versus Cur-
rent for both LNA and Mixer
Blocks
All Pins ESD Protected
LNA GAIN 1
LNA IN 2
GND 3
LNA OUT 4
16
15
VCC
13
12 LO IN
11 GND
10 IF OUT-
9 IF OUT+
8
RF VCC
5
ISET2
6
ISET1
7
MIX IN
Applications
CDMA Korean PCS Systems
CDMA US PCS Systems
IMT-2000 and 2.4GHz Band
Applications
GPS Applications
General Purpose Downcon-
verter
Commercial and Consumer
Systems
Functional Block Diagram
Product Description
The RF2860 is a broadband receiver front-end designed for CDMA PCS
applications. The broadband design makes it a great solution as well for
GPS, IMT-2000 and 2.4GHz applications. It is designed to amplify and
downconvert RF signals, while providing 21.5dB of stepped gain control
range. Features include digital control of LNA gain, TX buffer/enable, and
power down mode. Another feature of the chip is the ability to set the bias
point and RF performance of the LNA and mixer through the ISET1 and
ISET2 resistors respectively. Noise figure, IIP3, and gain are designed to
exceed the IS-98 interim standard requirement for CDMA PCS communi-
cations. The IC is manufactured on an advanced Silicon Germanium
Bi-CMOS process and is in a 3mmx3mm, 16-pin, leadless chip carrier.
Ordering Information
RF2860
RF2860PCBA-41X
PCS CDMA Low Noise Amplifier/Mixer Broadband Downcon-
verter
Fully Assembled Evaluation Board
Optimum Technology Matching廬 Applied
GaAs HBT
GaAs MESFET
InGaP HBT
SiGe BiCMOS
Si BiCMOS
SiGe HBT
GaAs pHEMT
Si CMOS
Si BJT
GaN HEMT
RF MICRO DEVICES廬, RFMD廬, Optimum Technology Matching廬, Enabling Wireless Connectivity鈩? PowerStar廬, POLARIS鈩?TOTAL RADIO鈩?and UltimateBlue鈩?are trademarks of RFMD, LLC. BLUETOOTH is a trade-
mark owned by Bluetooth SIG, Inc., U.S.A. and licensed for use by RFMD. All other trade names, trademarks and registered trademarks are the property of their respective owners. 漏2006, RF Micro Devices, Inc.
Rev A9 DS050902
7628 Thorndike Road, Greensboro, NC 27409-9421 路 For sales or technical
support, contact RFMD at (+1) 336-678-5570 or sales-support@rfmd.com.

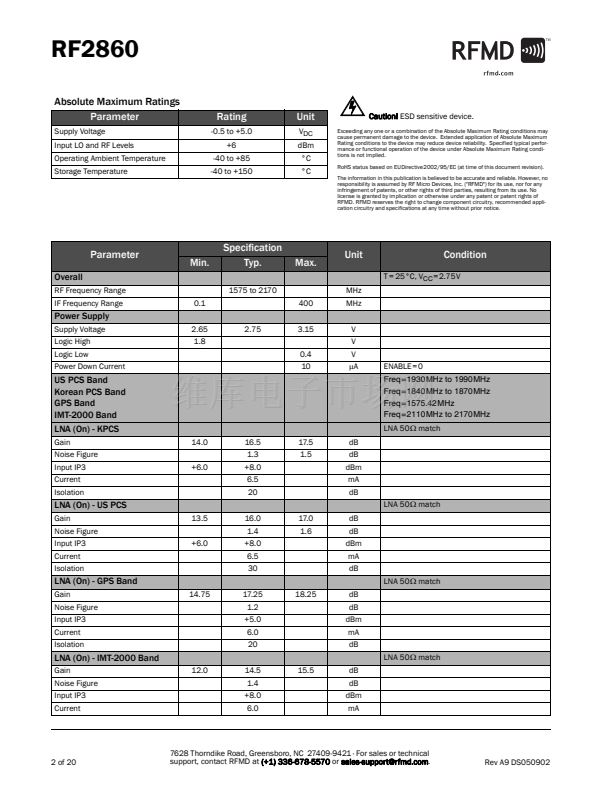

1 of 20
